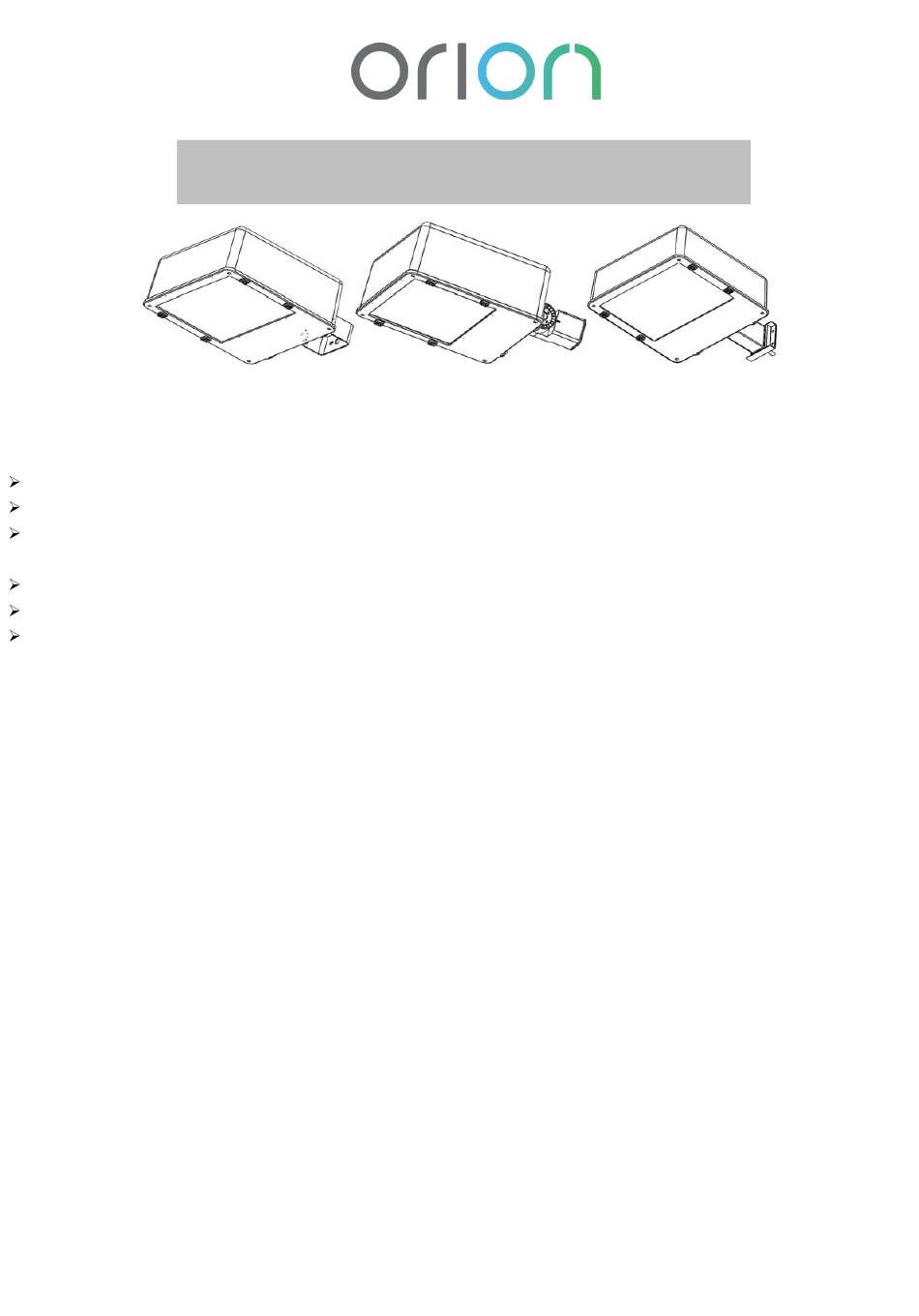

Orion ARXS1 Installation Instructions

LED AREA LIGHTER INSTALLATION INSTRUCTIONS
Ambient temperature for lighting fixture: -30℃~50℃

Safety Instruction

Read instructions carefully before attempting to install fixture. Retain instruction for future reference.
All wiring should be performed by a qualified electrician.
Disconnect power before installing or servicing. This fixture must be wired in accordance with the National Electrical
Code and applicable local codes and ordinances.
Proper grounding is required to ensure personal safety.
This fixture is for outdoor use and should not be used in areas with limited ventilation or high ambient temperatures.
Caution
– Risk of Fire
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts
inside.

Location

Fixture should be located at least 18" below any overhang or other structural detail.
Fixture should not be recessed.

Installation

This flood light is supplied with trunnion mounting
bracket for surface mounting, make sure fixture is
securely mounted.
Trunnion:
The trunnion mounting bracket offers five
different positions. There are three position
holes in the outer yoke and five positioning
holes in the inner yoke. To make a selection,
remove the positioning screw, loosen trunnion
bolts, rotate trunnion to desired angle. Reinsert
positioning screw and tighten.
PRODUCT SERIES: ARXS1
This flood light is also available with anadjustable
Slip Fitter.
Slip Fitter
1. Assemble slip fitter and gasket to Housing using
hardware provided
2. Assemble lower fitter onto the upper fitter after
removing splice compartment cover.
3.Slip lower fitter over tenon and securely tighten
two allen head set screws. The lower fitter is
designed to slip over 2-3/8'' o.d. heavy wall pipe
or tenon
