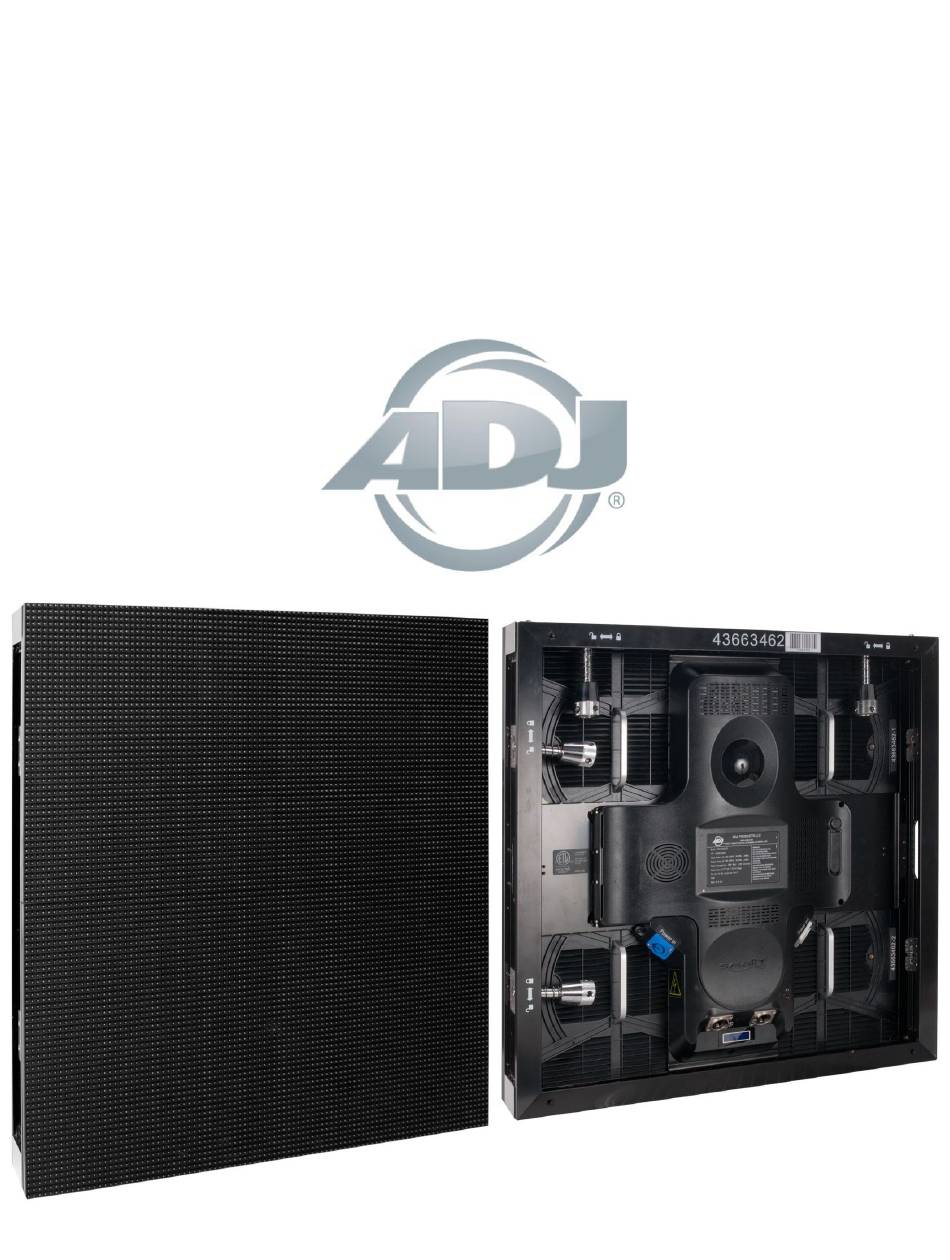

- Page 1 AV6XS User Guide...
- Page 2 ©2020 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo, and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview Handling and Transportation Installation Technical Specifications Optional Components & Accessories ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands... -
Page 4: General Information
GENERAL INFORMATION With a brightness of 1200 NITS and a 6.0 mm pixel pitch, the AV6XS is a cost effective, bright, high- resolution video panel designed for indoor use. Although the 3-in-1 RGB SMD2121 LEDs create an impressive brightness of 1200 NITS, with its 0-100% adjustable brightness, the intensity of the screen can be reduced for all indoor applications. -
Page 5: Limited Warranty (Usa Only)
All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging material. -
Page 6: Safety Guidelines
This panel is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform the installation of this panel and all included and/or rigging accessories. - Page 7 CAUTION: Test panel for 2-hours per week, if not used regularly or for an extended period of time. CAUTION: Cases used to transport panel must me properly waterproofed for transportation. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
-
Page 8: Maintenance Guidelines
4. Check each AV6XS LED Video Panel for loose screws and other fasteners. 5. If the AV6XS LED Video Panel installation is fixed or displayed for a lengthy time, regularly inspect all rigging and installation equipment, and replace or repair it as necessary, and during long periods of non-use, disconnect the main power to the unit. -
Page 9: Panel Overview
PANEL OVERVIEW Each AV6XS LED Video Panel includes a quick-release power supply with 4X receiver card modules, allowing for easy serviceability and simple repairs whilst out on the road. The cover of the power supply box can be secured to protect all internal accessories and components. - Page 10 Locking RJ45 Ethernet Connector ESD Grounding Hole & Connection Plate for permanent or semi- permanent installations AV6XS Overview Power Output (-) Power Input (+) Test Power Signal Locking RJ45 Ethernet ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
-
Page 11: Handling And Transportation
HANDLING AND TRANSPORTATION The corners of the AV6XS LED Video Panel are susceptible to damage during handling and transportation. When removing AV6XS LED Video Panels from their respective Flight Cases (AV6FC sold separately), and before they are installed, take care to avoid damaging any of the 4 corners. - Page 12 HANDLING AND TRANSPORTATION The optional AV6FC Flight Case (sold separately) for the AV6 and AV6XS LED video panels holds 8x AV6XSs. The flight case features a full foam lining with slots for each unit. The case is robust, so will completely protect a set of panels on the road.
-
Page 13: Installation
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury and property damage. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands... - Page 14 Locked horizontal connectors 3. Note the “Lock” and 2. Compress spring of panel “Unlock” directional arrows connector and pass locking- tab through tab-keyed connector socket ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
- Page 15 1. Align the vertical positional posts with their corresponding 3. Compress spring of vertical panel connector and pass locking-tab alignment holes through tab-keyed connector socket ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
- Page 16 The AV6XS is compatible with ADJ’s AV6RB2 rigging bar (sold separately), which easily and securely locks to the top of the first panel in a vertical hang of up to 20 AV6XS panels, allowing them hang from a truss, hoist, or lintel beam. A qualified technician or trained professional is required to fly the AV6RB2 Rigging Beam/AV6XS LED Video Panel assembly.
-
Page 17: Technical Specifications
Increase the separation between the device and the receiver. Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected. 501032 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands... - Page 18 Consult the dealer or an experienced radio/TV technician for help. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
-
Page 19: Optional Components & Accessories
CAT6PRO50 (50ft.) CAT6PRO100 (100ft.) CAT6PRO150 (150ft.) CAT6PRO25FC (25ft.) Panel to Panel Data Link Cables (Locking RJ45 Ethernet Connect CAT6PRO50FC (50ft.) In/Out to Locking RJ45 Ethernet Connect In/Out) CAT6PRO100FC (100ft.) ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
