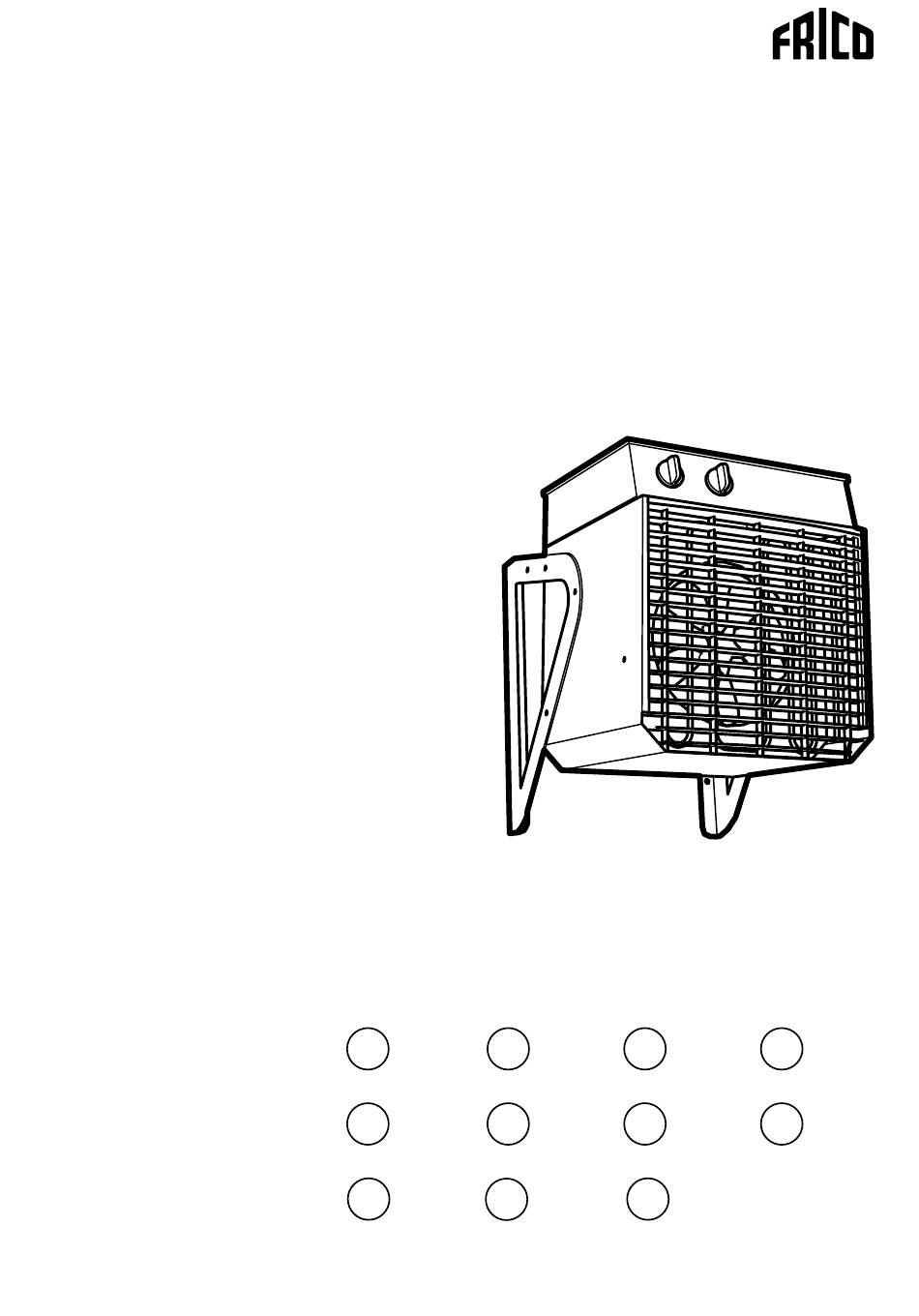

- Page 1 Elektra H ..9 ..11 ..13 ..7 ..15 ..17 ..19 ..21 ..23 ..25 ..27...
- Page 2 Elektra H ELH623, ELH633, ELH933 min 300 mm 300 mm min 500 mm Fig. 1...
- Page 3 Elektra H c-c 350/274 Fig. 2 425/485 Fig. 3 390/545 Fig. 4...
-
Page 4: Technical Specifications
Elektra H Technical specifications ∆t Type Output* Output Voltage Amperage Airflow Sound Weight steps level [kW] [kW] [dB(A)] [°C] [kg] ELH623 0/3/6 230V3~ 7 .8/15.4 1000 ELH633 0/3/6 400V3N~ 4.5/8.9 1000 ELH933 0/4,5/9 400V3N~ 6,7/13,2 1000 ) Distance to fan: 5 metres. ∆t = Temperature rise of passing air at maximum heat output. - Page 5 Elektra H Elektra H 230V3~ ELH623 Elektra H Remove ELRT 230V3~ 1. Element 2. Fan motor 3. Switch 4. Thermostat 5. Overheat protection...
- Page 6 Elektra H Elektra H 400V3~ ELH633, ELH933 Elektra H Remove ELRT 400V3~ 1. Element 2. Fan motor 3. Switch 4. Thermostat 5. Overheat protection...
-
Page 7: Operation
Elektra H Mounting and assembly instruction Application area Electrical installation The fan heater is approved for rooms with The electrical installation should be carried out high surrounding temperature, up to 70 °C, for by a qualified electrician in conformity with example test rooms for electronic equipment. -
Page 8: Safety Instructions
Elektra H Important! Note! To keep the protection class it is very important to tighten the screws properly when When using the heater as a portable, the brackets the lid is put back again after installation or must be turned in order to use them as a floor maintenance. - Page 9 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
