Please read instructions entirely before installing this product.
Parts Included

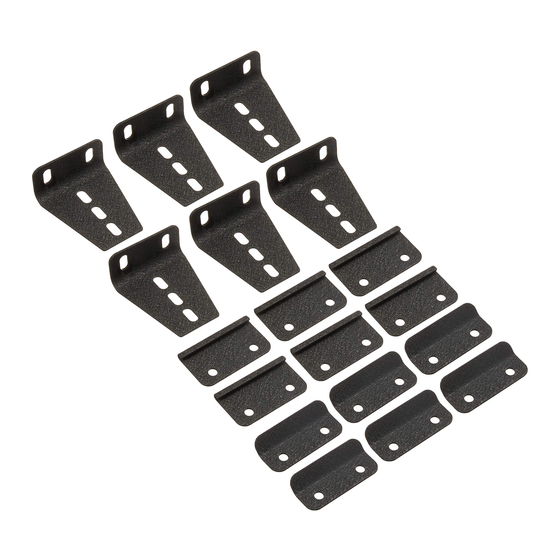

Bracket (DS5)
"L" Bracket (D8107A)
Hardware Pack (DS5-6-HP)
5/16"x3/4" Bolt
Parts Included
Bracket (DS5)
"L" Bracket (D8107A)
Hardware Pack (DS5-8-HP)
5/16"x3/4" Bolt
Parts Included
Bracket (DS5)
"L" Bracket (D8107A)
Hardware Pack (DS6-6-HP)
5/16"x3/4" Bolt
Standard
5/16" nuts
3/8" nuts
7/16"nuts
1/2" nuts
9/16" nuts
5/8" nuts
Installation Instructions
Part# DS5-6
Qty
6
6
24
Part# DS5-8
Qty
8
8
32
Part# DS6-6
Qty
6
6
24
Grade 8 nut torque specifications
20 ft. lbs.
M6
35 ft. lbs.
M8
60 ft. lbs.
M10
90 ft. lbs.
M12
160 ft. lbs.
M14
175 ft. lbs.
M16
Defender Series
Rack Mount
P a r t # D S 5 - 6 , D S 5 - 8 , D S 6 - 6
Parts Included
5/16" Flat Washers
5/16" Lock Washers
5/16" Nut
Parts Included
5/16" Flat Washers
5/16" Lock Washers
5/16" Nut
Parts Included
5/16" Flat Washers
5/16" Lock Washers
5/16" Nut
Metric
Qty
48
24
24
Qty
64
32
32
Qty
48
24
24
9 ft. lbs.
23 ft. lbs.
45 ft. lbs.
75 ft. lbs.
120 ft. lbs.
165 ft. lbs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Defender Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Smittybilt Defender Series

  • Page 1 Installation Instructions Defender Series Rack Mount P a r t # D S 5 - 6 , D S 5 - 8 , D S 6 - 6 Please read instructions entirely before installing this product. Part# DS5-6 Parts Included...
  • Page 2 Installation Instructions Defender Series Rack Mount Part #DS5-6,DS5-8,DS6-6 Assemble the bracket assemblies, and place on each side of factory rails per diagram. Step 1: Do not tighten at this time. Position roof rack on brackets and attach with 5/16” hardware.
