Installation Of 14, 16, 18, 20, 22Hp - Midea V5 X VRF Series Technical & Service Manual

MCAC-VTSM-2015-10
A A≥300
B B≥250
C C≤3000
D D=A+750
θ θ≤15°

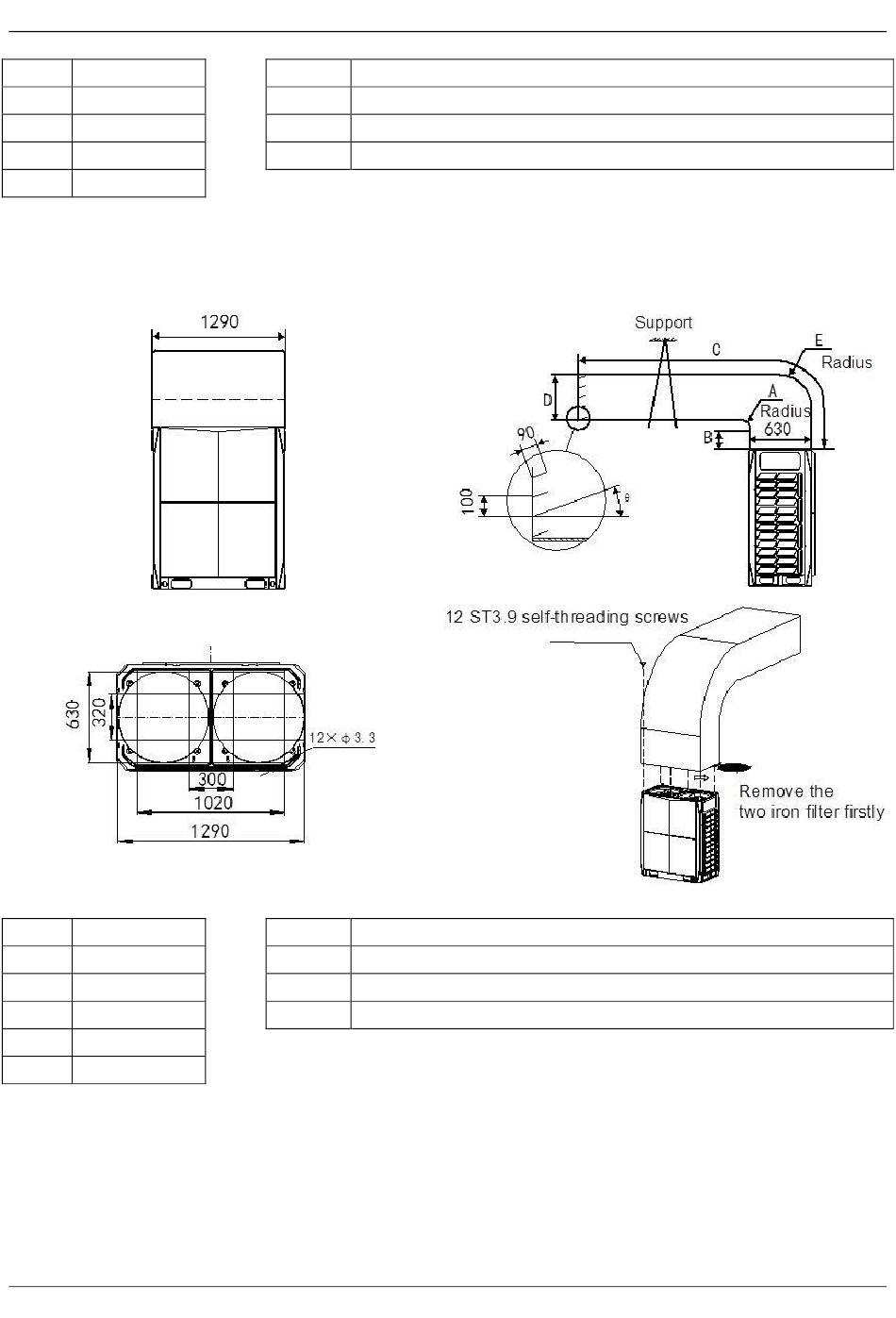

2.2 Installation of 14, 16, 18, 20, 22HP

Example A
Unit: mm
A A≥300
B B≥250
C C≤3000
D 630≤D≤660
E E=A+630
θ θ≤15°
Installation
ESP Remarks
0Pa Factory default
0~20Pa Remove the mesh cover and connect to the duct which is less than 3 meters.
≥20Pa
Customizable
ESP Remarks
0Pa Factory default
0~20Pa Remove the mesh cover and connect to the duct which is less than 3 meters.
≥20Pa
Customizable
