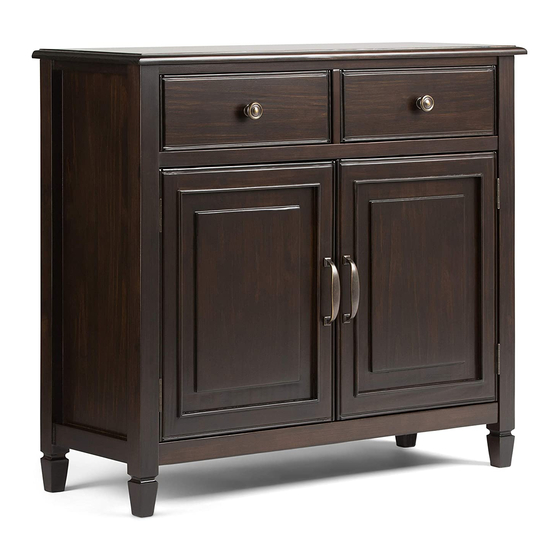

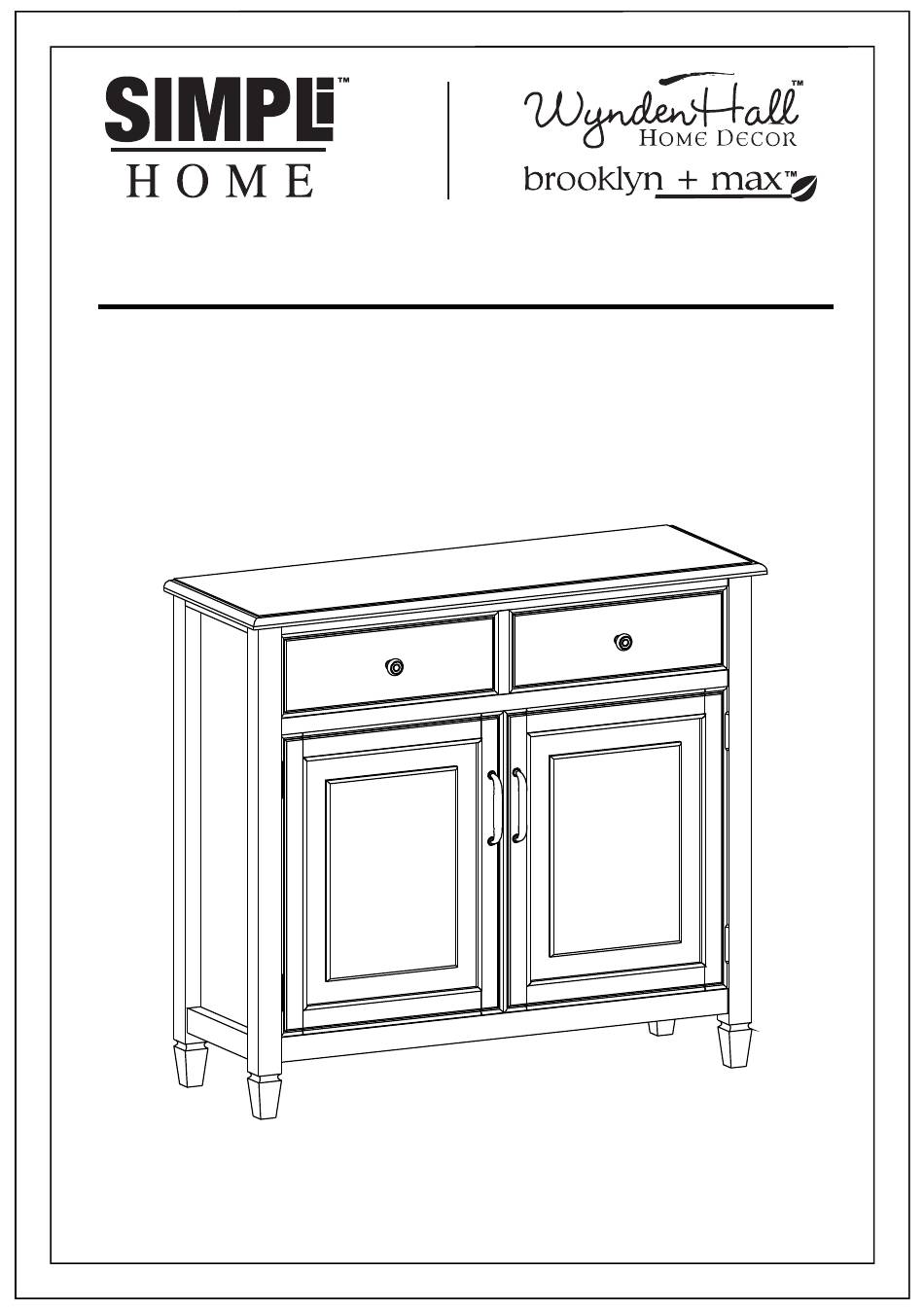

- Page 1 CONNAUGHT HAMPSHIRE SOMERSET ENTRYWAY STORAGE CABINET MODEL # 3AXCCON-04 1/18...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/18...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # 3AXCCON-04 PARTS DESCRIPTION SIDE LARGE DIVIDER QTY 1 QTY 1 PAIR QTY 1 SMALL DIVIDER MIDDLE FRAME BOTTOM SHELF QTY 1 QTY 1 QTY 1 DOOR BACK CABINET SHELF QTY 1 PAIR QTY 1 PAIR QTY 2 DRAWER FRONT DRAWER SIDE DRAWER BACK... -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # 3AXCCON-04 HARDWARE DESCRIPTION ALLEN KEY SCREW WOOD DOWEL CAM LOCK PIN M6 X 30 mm 8 X 30 mm CAM LOCK QTY 26 QTY 16 QTY 16 PHILLIPS SCREW ROUND HEAD M4 X 15 mm ALLEN KEY SHELF SUPPORT QTY 21 QTY 12... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCCON-04 6/18...
- Page 7 ASSEMBLY MODEL # 3AXCCON-04 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front J . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides K . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side K . 4.
- Page 8 ASSEMBLY MODEL # 3AXCCON-04 STEP 3 1. Align Drawer Back L with Drawer Bottom M and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side K . 3. Use Allen Key 4 to tighten screws. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 9 ASSEMBLY MODEL # 3AXCCON-04 STEP 5 1. Attach Small Divider D to Middle Frame E using 2 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten screws. Do not over-tighten. STEP 6 1. Insert 2 Dowels 3 into pre-drilled holes on Large Divider C . 2.
- Page 10 ASSEMBLY MODEL # 3AXCCON-04 STEP 7 1. Insert 2 Dowels 3 into pre-drilled holes on Large Divider C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed 3. Attach Large Divider C to Bottom Shelf F using 3 Allen Key Screws 1 through pre- drilled holes.
- Page 11 ASSEMBLY MODEL # 3AXCCON-04 STEP 8 1. Insert 4 Dowels 3 into pre-drilled holes on each Side B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed 3. Attach 3 Cam Lock Pins 2 to each Side B into guide holes. 4.
- Page 12 ASSEMBLY MODEL # 3AXCCON-04 STEP 9 1. Insert 2 Dowels 3 into top corners of each Side B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed 3. Align pre-drilled holes bottom corners of Top A with Dowels 3 in Sides B . 4.
- Page 13 ASSEMBLY MODEL # 3AXCCON-04 STEP 11 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Hings on Doors H to Sides B using Phillips Screws 7 into pre-drilled guide holes. 2. Attach Magnet Plates 10 to bottom corner of Doors H using Phillips Screws 8 . into guide holes on Doors H .
- Page 14 ASSEMBLY MODEL # 3AXCCON-04 STEP 12 1. Use 4 Shelf Supports 6 for each Shelf Cabinet G in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Shelf Cabinets G as a tipping restraint. 3.
- Page 15 ASSEMBLY MODEL # 3AXCCON-04 When you determine the location for your unit, install the Furniture Tipping Restraint. Carefully follow the instructions on the package. STEP 13 NOTE: The screwdriver is not included in the hardware pack. STEP 14 STEPS 13 & 14 1.
-
Page 16: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 17 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-0518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 17/18...
- Page 18 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
