Simpli Home 3AXCBUR-003 Assembly Instructions Manual

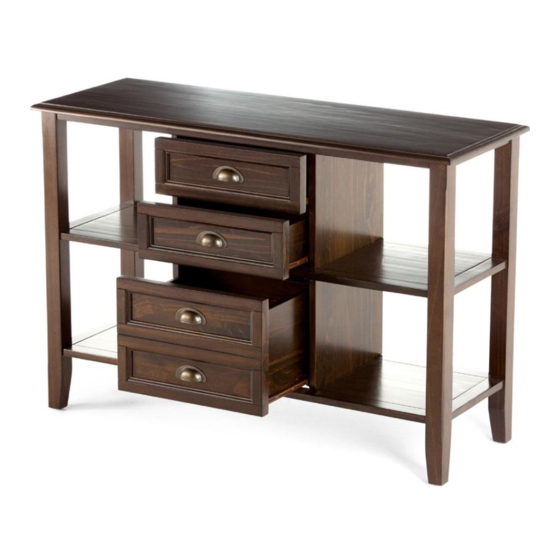

Console table
Hide thumbs Also See for 3AXCBUR-003:

Advertisement

Quick Links

Download this manual

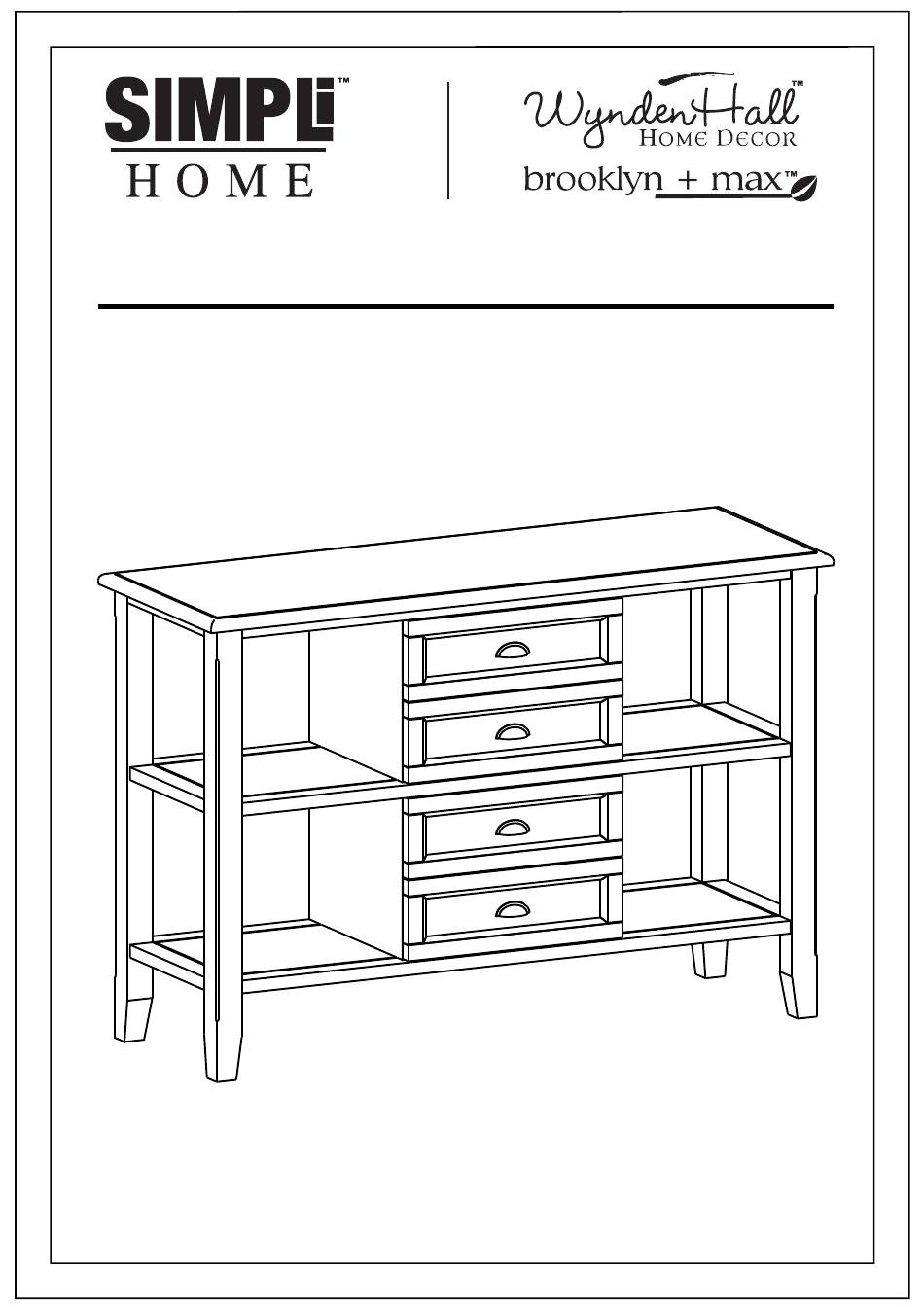

BURLINGTON / PORTLAND / BERKSHIRE
CONSOLE TABLE
MODEL #
3AXCBUR-003
1/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3AXCBUR-003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home 3AXCBUR-003

Summary of Contents for Simpli Home 3AXCBUR-003

  • Page 1 BURLINGTON / PORTLAND / BERKSHIRE CONSOLE TABLE MODEL # 3AXCBUR-003 1/17...
  • Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/17...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
  • Page 4 PRE ASSEMBLY INFORMATION MODEL # 3AXCBUR-003 PARTS DESCRIPTION SIDE CENTRE SHELF BOTTOM SHELF QTY 2 QTY 1 QTY 1 QTY 1 DIVIDER DRAWER FRONT DRAWER FRONT DRAWER SIDE QTY 1 PAIR QTY 1 QTY 2 QTY 1 PAIR DRAWER SIDE...

  • Page 5: Hardware Description

    PRE ASSEMBLY INFORMATION MODEL # 3AXCBUR-003 HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm CAM LOCK ALLEN KEY QTY 36 QTY 24 SETS QTY 1 PHILLIPS SCREW Required - ROUND HEAD Flathead screwdriver M4 X 15 mm...
  • Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCBUR-003 6/17...
  • Page 7 ASSEMBLY MODEL # 3AXCBUR-003 STEP 1 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front E1 . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides F1 .
  • Page 8 ASSEMBLY MODEL # 3AXCBUR-003 STEP 3 1. Align Drawer Back G1 with Drawer Bottom H and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten.
  • Page 9 ASSEMBLY MODEL # 3AXCBUR-003 STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front E . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides F .
  • Page 10 ASSEMBLY MODEL # 3AXCBUR-003 STEP 7 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten.
  • Page 11 ASSEMBLY MODEL # 3AXCBUR-003 STEP 9 1. Insert 6 Allen Key Screws 1 through pre-drilled holes on centre of 2 Dividers D into Centre Shelf C1 (3 Screws / each Divider). 2. Use Allen Key 3 to tighten. Do not over-tighten.
  • Page 12 ASSEMBLY MODEL # 3AXCBUR-003 STEP 11 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 6 Cam Lock Pins 2 to each Side A using guide holes . 2. Align Cam Lock Pins with pre-drilled holes on Centre Shelf C1 and Bottom Shelf C .
  • Page 13 ASSEMBLY MODEL # 3AXCBUR-003 STEP 12 1. Insert 12 Allen Key Screws 1 into pre-drilled holes on 2 Sides A and 2 Dividers D into Top B ( 3 Screws / each Side and Divider ). 2. Use Allen Key 3 to tighten. Do not over tighten .
  • Page 14 ASSEMBLY MODEL # 3AXCBUR-003 STEP 14 1. Insert assembled drawers into glides on assembled table. 14/17...

  • Page 15: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 16 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 16/17...
  • Page 17 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
