ICC
mounting tabs, depressing firmly until the front cover snaps into place
(Figure 4). Double-check that the plastic bosses located on the left and
right side of the interface housing are properly inserted into the
corresponding recesses on the back of the front cover, and that the front
cover is overall secure and flush with the interface housing.

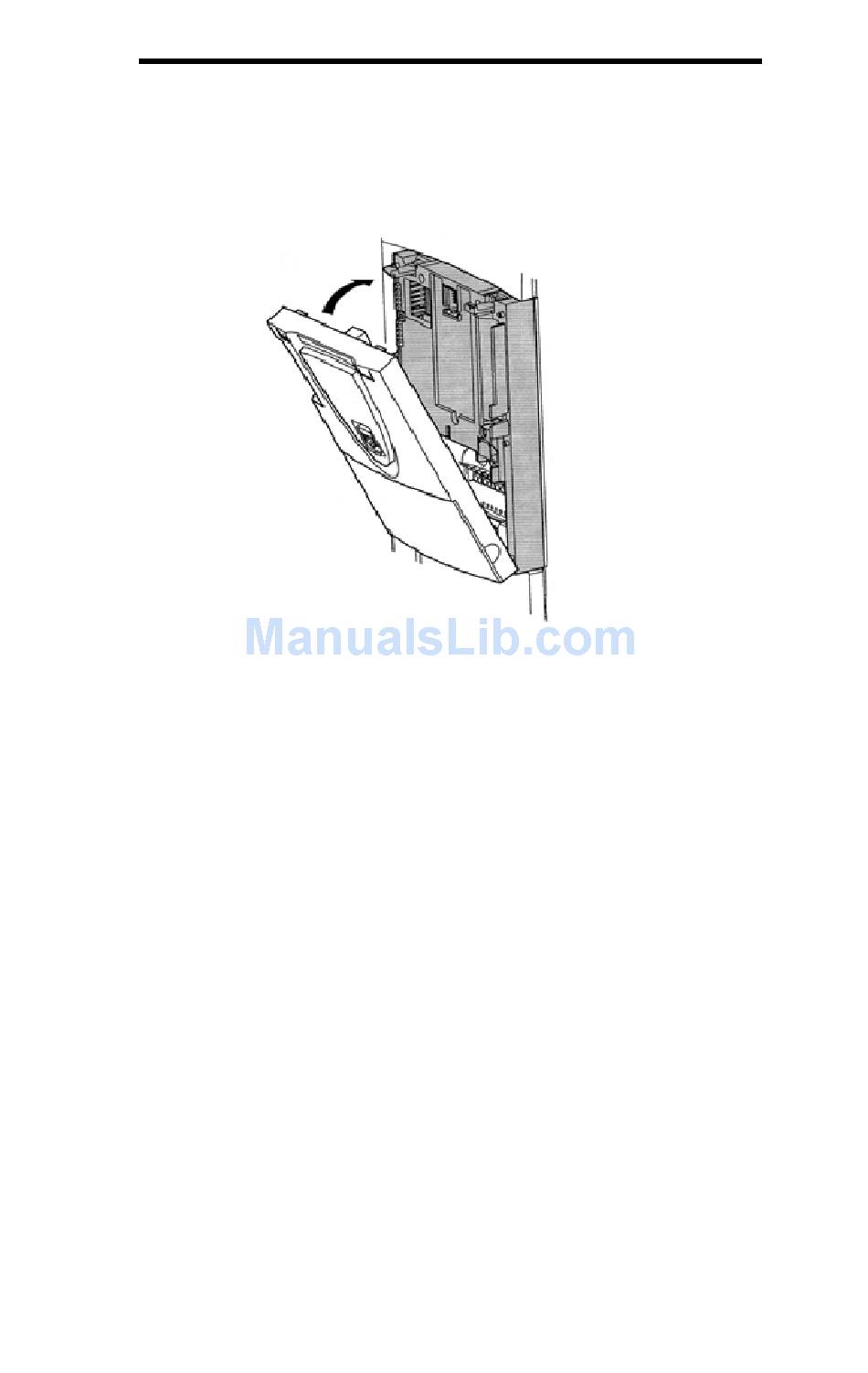

Figure 4: Reinstalling the Drive's Front Cover
6.
Insert the network cable into the Ethernet jack. Ensure that the connector
is fully seated into the jack, and route the cable such that it is located well
away from any electrical noise sources, such as drive's input power or
motor wiring. Also take care to route the cable away from any sharp edges
or positions where it may be pinched.
7.
Turn the power source to the drive ON, and verify that it functions properly.
If the drive does not appear to power up, or does not function properly,
immediately turn power OFF. Repeat steps 1 and 2 to remove all power
from the drive. Then, verify all connections. Contact ICC or your local
Toshiba representative for assistance if the problem persists.
5.2 Installing Multiple Option Cards
When this communication interface is installed into a drive in conjunction with
an I/O option card, the I/O option card must be installed first (adjacent to the
drive's enclosure), and the communication interface must be installed last
(adjacent to the drive's front panel).
16
