PUIG 9444 Quick Manual

CÚPULA TOURING ADAPTABLE A - TOURING SCREEN FOR - TOURENSCHEIBE FÜR CÚPULA TOURING ADAPTABLE A - TOURING SCREEN FOR - TOURENSCHEIBE FÜR
ID PIEZA / PART
1
Cúpula Touring
2 Soporte metálico derecho
3
Soporte metálico izquierdo
4
Tornillo Allen M5X20 Ø11 ISO7380
5 Silentblock M5
6
Tornillo Allen M5X16 Ø11 ISO7380
7
Arandela de nylon M5x1
8
Tapón tornillo M5 ISO 7380
Pg. 1/2
HONDA CROSSRUNNER '17 - HONDA CROSSRUNNER '17 -
DESCRIPCIÓN
MOTOPLASTIC, S.A.
Pg. de la Ribera, 29
info@puig.tv
www.puig.tv
DESCRIPTION

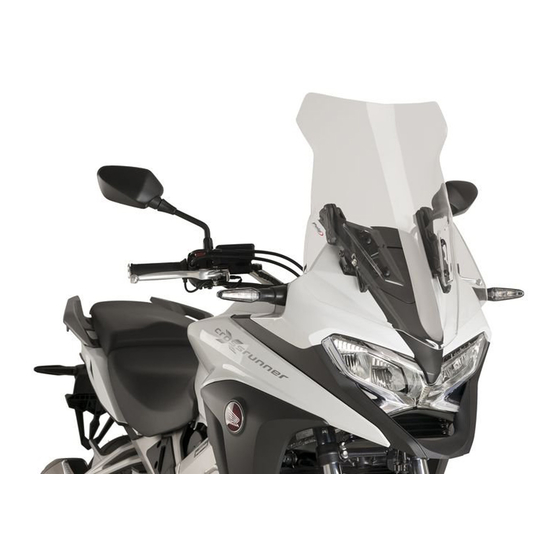

Touring screen
Right metal support
Left metal support
M5X20 Ø11 ISO 7380 Allen screw
M5 Silentblock
M5X16 Ø11 ISO 7380 Allen screw
M5x1 nylon washer
M5 ISO 7380 screw cap
Tel. +34 93 849 06 33
- 08403 Granollers (Barcelona) SPAIN
info@puigusa.com
www.puigusa.com
Ref.: 9444
ALLEN
Nº 3
Nº 5
M M
1 persona
1 person 15 min
QTY
1 9444H/F/WM3
1 SOPOR-2P-2-9444
1 SOPOR-2P-2-9444
4 TORNI-I7380-730
4 SILENBTM5-046/1
4 TORNI-I7380-493
4 ARNV0000000245
4 TAPON________85
Fácil - Easy
edi i a-In n n te e e rm m m ediate
Difícil-D D D iffi fi fi c u c u u l l t
REF.
