HiB Eclipse Round Fixing Instructions

Magnifying mirrors

Fixing Instructions

Eclipse & Libra Magnifying Mirrors

Eclipse Round:

Art No. 21100

Eclipse Square:

Art No. 21200

Libra:

Art No. 21400

Thank you for purchasing this HiB product.

Please read through these instructions carefully and refer back to them during installation to ensure that

your product is fitted safely and that it retains its high quality finish.

Please retain this leaflet for future reference.

Before drilling, ensure there are no hidden cables or pipes in the wall and that the domestic mains supply

to which the mirror is to be connected is turned off.

These products are suitable for installation in zones: 2

Please see Figure 4 on the back page for details.

Ver No.

1.0 Nov 2015

Table of Contents

Need help?

Do you have a question about the Eclipse Round and is the answer not in the manual?

Page 1 Libra: Art No. 21400 Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
Page 2 Installation 1. Position the magnifying mirror in a suitable location (according to the zonal diagram overleaf, Figure 4), ensuring that the domestic electrical mains supply is within reach of the electrical entry point of the product. Do not position in direct sunlight as the magnifying effect of the mirror may pose a fire hazard.
Page 3 Fixing Instructions Mounting Diagram Libra (Fig. 2) Wall bracket Fixing Point Mirror base Mounting Diagram Eclipse (Fig. 3) Fixing Point Mirror base Wall bracket Rocker switch hib.co.uk...
Page 4 ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary. E & OE.

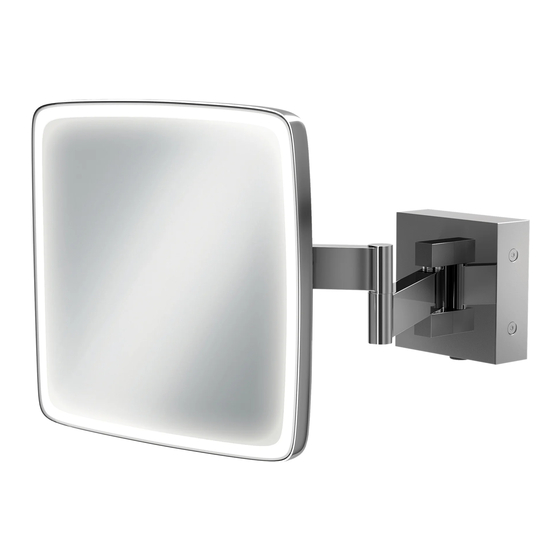

Eclipse squareLibra
