SOLSTICE
Solstice 60 -BLK:
Art No 79520700
Solstice 60-BBR:
Art No 79520750
Solstice 80-BLK:
Art No 79520800
Solas 80-BBR
Art No 79520850
REVISION:
+44 (0)20 8441 0352
+44 (0)20 8441 0219
Marke�ng@hib.co.uk
hib.co.uk
DC
09/07/2019 16:12:13
T:
F:
E:
W:
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to
them during installation to ensure that your product is fitted safely
and that it retains its high quality finish.
FI#01 027 R201113
Ver No.
1.0 Jan 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HiB Solstice 60-BLK
Summary of Contents for HiB Solstice 60-BLK

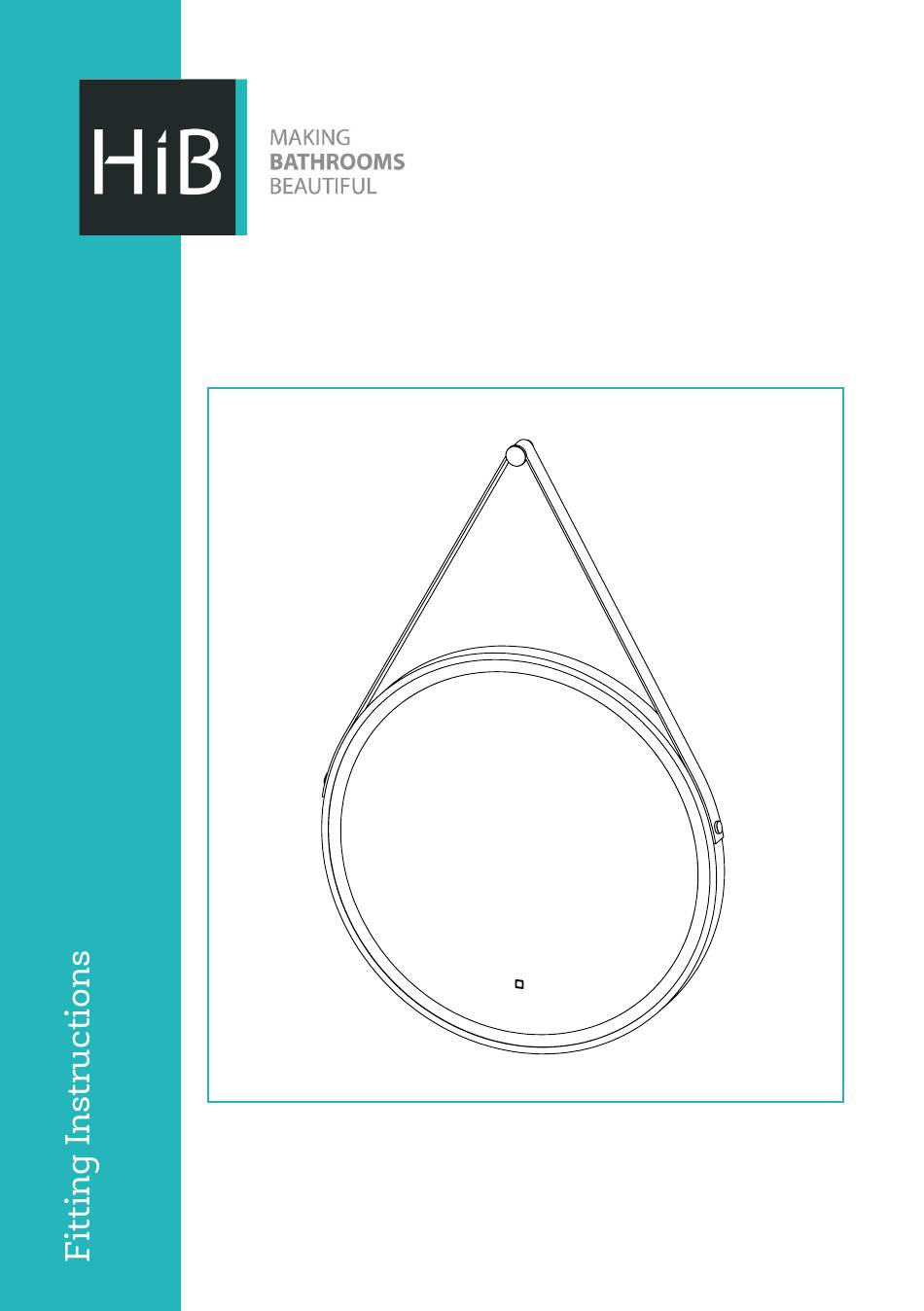

- Page 1 Marke�ng@hib.co.uk hib.co.uk 09/07/2019 16:12:13 Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
- Page 2 Electrical Safety Information HiB recommends that all electrical bathroom products must be installed in accordance with current building and wiring regulations. If in doubt please contact an electrician. Before drilling ensure that there are no hidden cables or pipes in the wall.
- Page 3 This product is IP44 rated and is suitable for installation in zones: & Outside Zone Wiring Diagram Live is Brown Live supply can be Red or Brown live earth Earth supply is Green and Yellow Neutral is Blue neutral Neutral supply can be Blue or Black LUMINAIRE MAINS SUPPLY hib.co.uk...
- Page 4 What’s in the Box? • Solstice Mirror • Leatherette Strap • Strap to Mirror fixing bolt (pair) • Strap support hook with cover • Fittings pack Tools Required Pencil Spirit Level Drill Drill bit Screwdriver...
- Page 5 Figures Fixing point locations REAR VIEW mounting points 500mm electrical output Fig 2. - Mounting points Fig 3. - Securing hanging strap bolts Fig 4. - Fixing support hook hib.co.uk...
- Page 6 Installation It is recommended that this product is installed by two people. Position the mirror in a suitable location (according to the zonal diagram - Fig. 1), ensuring that the domestic electrical mains supply is within reach of the cable connection point of the product. 2.
- Page 7 Touch the sensor located on the front of the mirror once. 2. Heated pad is on when the mirror is on. To change the colour temperature Touch and hold the sensor until desired colour is obtained. 2. The colour temperature is then set until changed again. hib.co.uk...
- Page 8 Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary.
