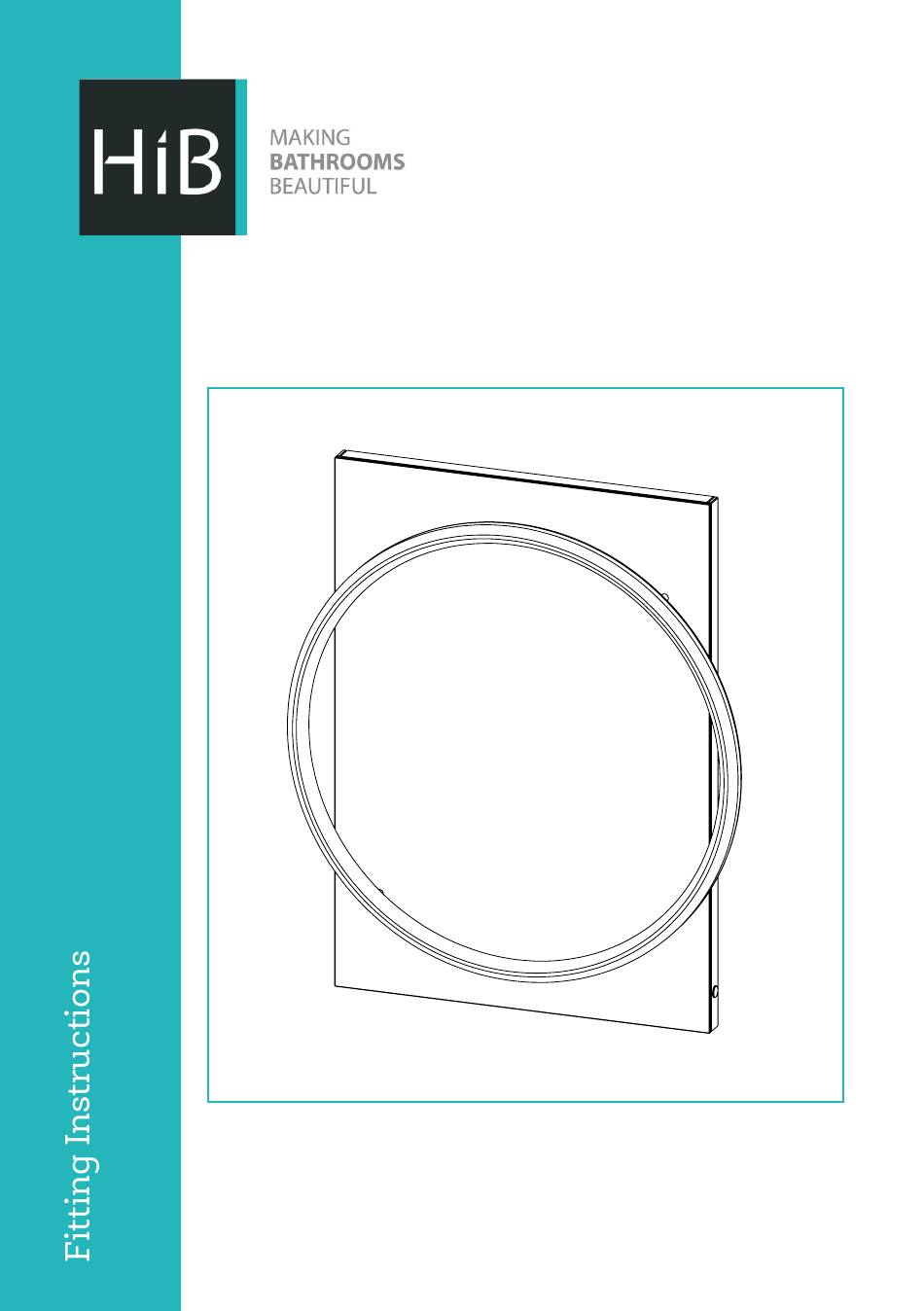

Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to
them during installation to ensure that your product is fitted safely
and that it retains its high quality finish.
FI#01 024 R201113
Ver No.
1.0 Jan 2021
Advertisement
Table of Contents
Related Manuals for HiB Solas 50-CHRM
Summary of Contents for HiB Solas 50-CHRM
- Page 1 Marketing@hib.co.uk hib.co.uk 04/10/2018 14:04:12 Thank you for purchasing this HiB product. Please read through these instructions carefully and refer back to them during installation to ensure that your product is fitted safely and that it retains its high quality finish.
-
Page 2: Electrical Safety Information
Electrical Safety Information HiB recommends that all electrical bathroom products must be installed in accordance with current building and wiring regulations. If in doubt please contact an electrician. Before drilling ensure that there are no hidden cables or pipes in the wall. -
Page 3: Electrical Information
Wiring Diagram Live is Brown Live supply can be Red or Brown live earth Earth supply is Green and Yellow Earth is Green and Yellow Neutral is Blue neutral Neutral supply can be Blue or Black LUMINAIRE MAINS SUPPLY hib.co.uk... -
Page 4: Tools Required
What’s in the Box? • Solas Mirror • Fittings pack Tools Required Pencil Spirit Level Drill Drill bit Screwdriver... - Page 5 Figures REAR VIEW MOUNTING LOCATIONS Fig 2. - Mounting points hib.co.uk...
-
Page 6: Installation
Installation SOLAS mirrors must be installed with a minimum distance of 150mm between the infra-red sensor switch and any adjacent wall or object to ensure correct operation of the sensor. It is recommended that this product is installed by two people. 1. -
Page 7: Operation
2. Simply move your hand away from the sensor when the desired colour temperature has been reached and continue to operate the mirror as normal. 3. The chosen colour temperature will remain set even after power is switched off and on again. Mirror shown in landscape orientation hib.co.uk... - Page 8 Building 3, North London Business Park, Oakleigh Road South, New Southgate, London. N11 1GN ©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary.
