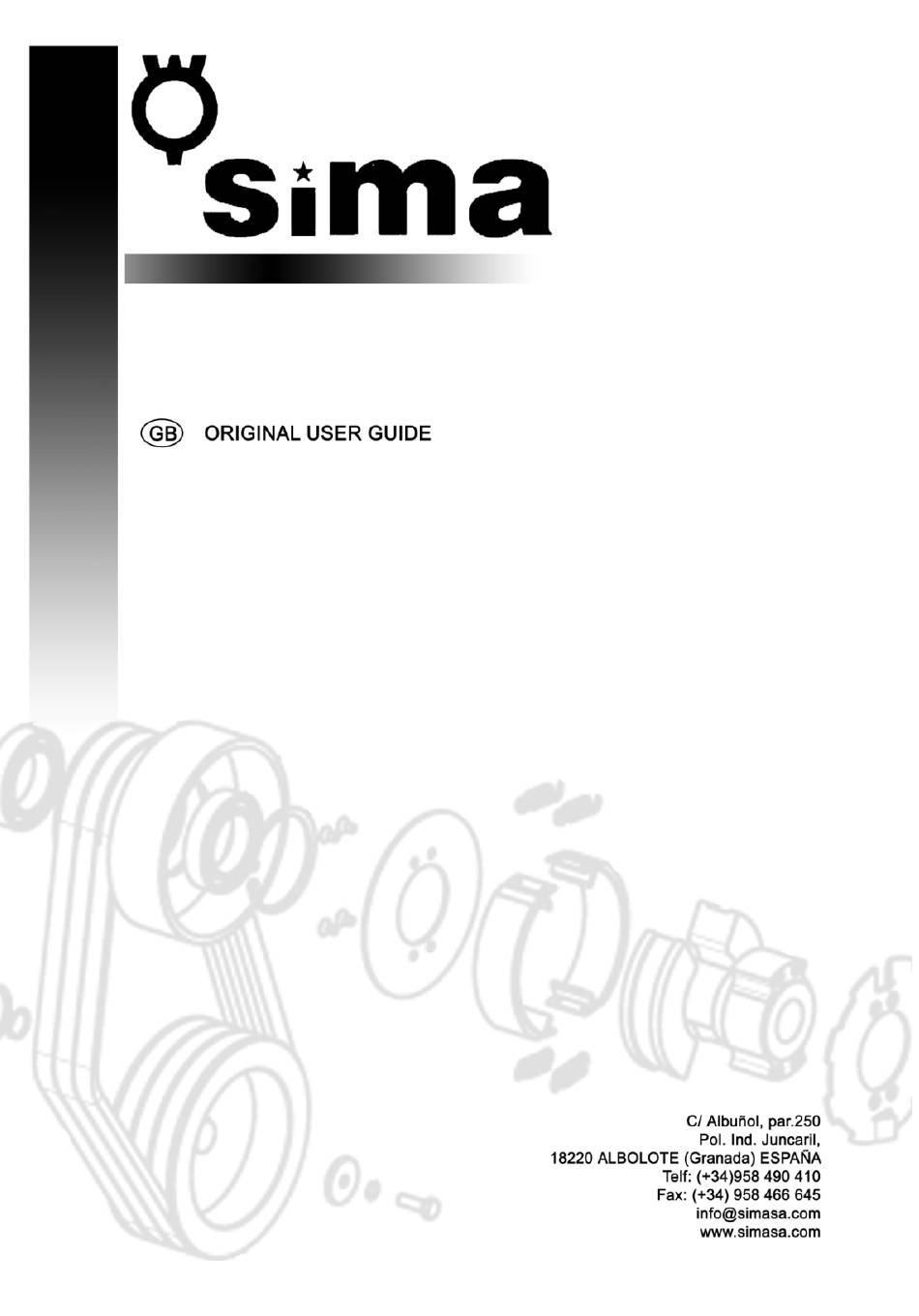

- Page 1 ESPAÑOL STAR 16 STAR 16...
- Page 2 ESPAÑOL...
-
Page 3: Ec Declaration Of Conformity
UNE-EN 292-1; UNE-EN 292 -2; UNE-EN 294; UNE-EN 349; UNE-EN 60204-1; UNE-EN 1050; UNE-EN 953 Details of the authorized person to elaborate the technical file Eugenio Fernández Martín Technical Manager SIMA S.A. Polígono Industrial Juncaril, C/ Albuñol, Parcela 250 - 18220 Albolote, Granada (SPAIN) Signed Albolote 01.01.2010 Managing Director... - Page 4 ENGLISH INDEX “EC” DECLARATION OF CONFORMITY ............3 1. GENERAL INFORMATION................5 2. GENERAL DESCRIPTION OF THE MACHINE..........5 2.1 TRANSPORT ........................5 2.2 PICTOGRAMS ........................ 6 3. ASSEMBLING INSTRUCCIONS ..............6 3.1 DELIVERY CONDITIONS ....................6 3.2 ASSEMBLING THE ACCESSORIES ..................6 4.
-
Page 5: General Information
WARNING: Please read and understand perfectly the present instruction before using the machine. SIMA S.A. thanks you for purchasing its Electrical Stirrup Bender STAR-16. This manual provides you with the necessary instructions to start, use, maintain and in your case, repair of the present machine. -
Page 6: Delivery Conditions
ENGLISH By lifting the machine with cranes or hoists, normalised slings must be used. These are chosen en function of the required work load limit, the way of use and the nature of the load. The choice is correct if special norms of use are respected. -
Page 7: Control Pannel
ENGLISH • Lubricate weekly with calcium grease the holes where the bolts are housed and the bottom of the bolt to avoid corrosion. • Review the tension of the belts of the motor each 6 months. The correct tightening of the belt is that which allow a shaft of 1,5 to 2 cm. - Page 8 If any damage or injury is caused as a result thereof or by misuse of the machine, SIMA S.A. exempts all responsibility as manufacturer. The machine must be installed on a plane, firm and horizontal surface and the ground should not be soft. This machine DOES NOT HAVE TO BE USED UNDER THE RAIN.
-
Page 9: Technical Characteristics
ENGLISH 7. SOLUTIONS TO MOST FREQUENT ANOMALIES ANOMALY POSSIBLE CAUSE SOLUTION Loose or damaged belts Tighten belts or change Power drop in motor Let the technical service check the Cutting/bending power insufficient motor Check the stopping course end and The bending plate turns but only stops Defect end of course confirm its continuity. -
Page 10: Electrical Connection
ENGLISH 10. ELECTRICAL CONNECTION The extension cable used to feed the machine needs to have a minimum section of 4x2.5 mm up to 25 meters long. For a superior distance 4x4 mm2 can be used. In one of its ends, it is needed to connect a base normalised ae rial of 16A 3 P+T ó... - Page 11 WARNING: WARNING: You are to follow all safety recommendations mentioned in the present user manual and comply with all labour risks prevention norms in every location. SIMA, S.A. is not responsible for the consequences possibly generated but the inadequate use of the stirrups bending machine model STAR-16.
- Page 12 ENGLISH 12. ELECTRICAL SCHEMES...
- Page 13 ENGLISH...
- Page 14 ENGLISH...
-
Page 15: Warranty
14. SPARE PARTS The spare parts for the bending and combined machines, manufactured by SIMA, S.A. are to be found in the spare parts plan, attached to this manual. To order any spare part, please contact our alter-sales service clearly indicating the serial number of the machine, model, manufacturing number and year of manufacturing that show on the characteristics plate. - Page 16 ENGLISH...
- Page 17 ENGLISH...
-
Page 18: Warranty Certificate
WARRANTY CONDITIONS 1.) SIMA, S.A. fully guarantees all its products against defects in design, taking responsibility in the repairs or the faulty equipment for a period of ONE year from the original date of purchase. The date of purchase must appear on the warranty voucher enclosed. - Page 19 WARRANTY CONDITIONS 1.) SIMA, S.A. fully guarantees all its products against defects in design, taking responsibility in the repairs or the faulty equipment for a period of ONE year from the original date of purchase. The date of purchase must appear on the warranty voucher enclosed.
- Page 20 ENGLISH...
- Page 21 РУССКИЙ...
- Page 22 SOCIEDAD INDUSTRIAL DE MAQUINARIA ANDALUZA, S.A. POL. IND. JUNCARIL, C/ALBUÑOL, PARC. 250 18220 ALBOLOTE (GRANADA) Telf.: 34 - 958-49 04 10 – Fax: 34 - 958-46 66 45 FABRICACIÓN DE MAQUINARIA PARA LA CONSTRUCCIÓN ESPAÑA...
