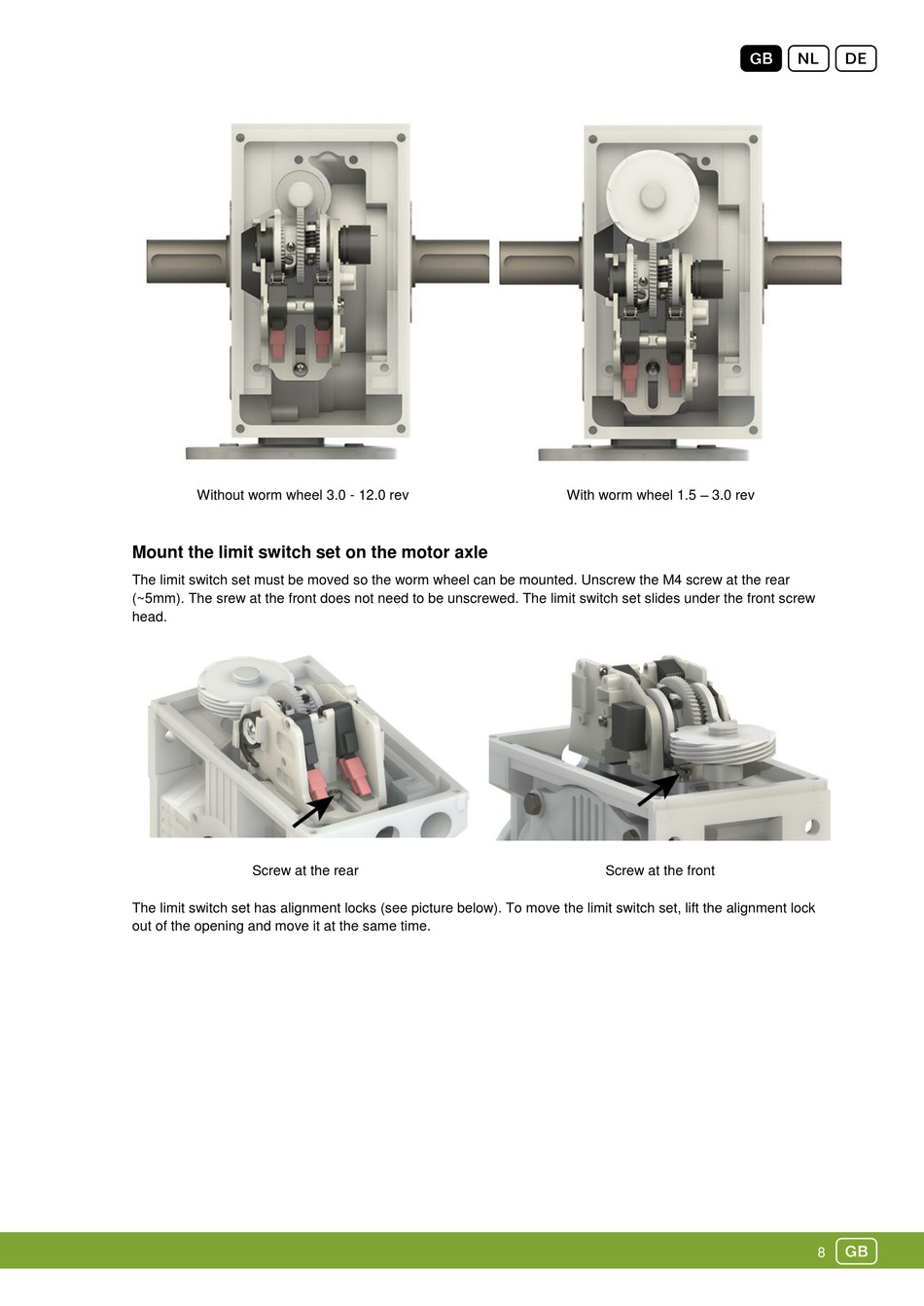

With worm wheel 1.5 – 3.0 rev
Without worm wheel 3.0 - 12.0 rev

Mount the limit switch set on the motor axle

The limit switch set must be moved so the worm wheel can be mounted. Unscrew the M4 screw at the rear
(~5mm). The srew at the front does not need to be unscrewed. The limit switch set slides under the front screw
head.
Screw at the rear Screw at the front
The limit switch set has alignment locks (see picture below). To move the limit switch set, lift the alignment lock
out of the opening and move it at the same time.
