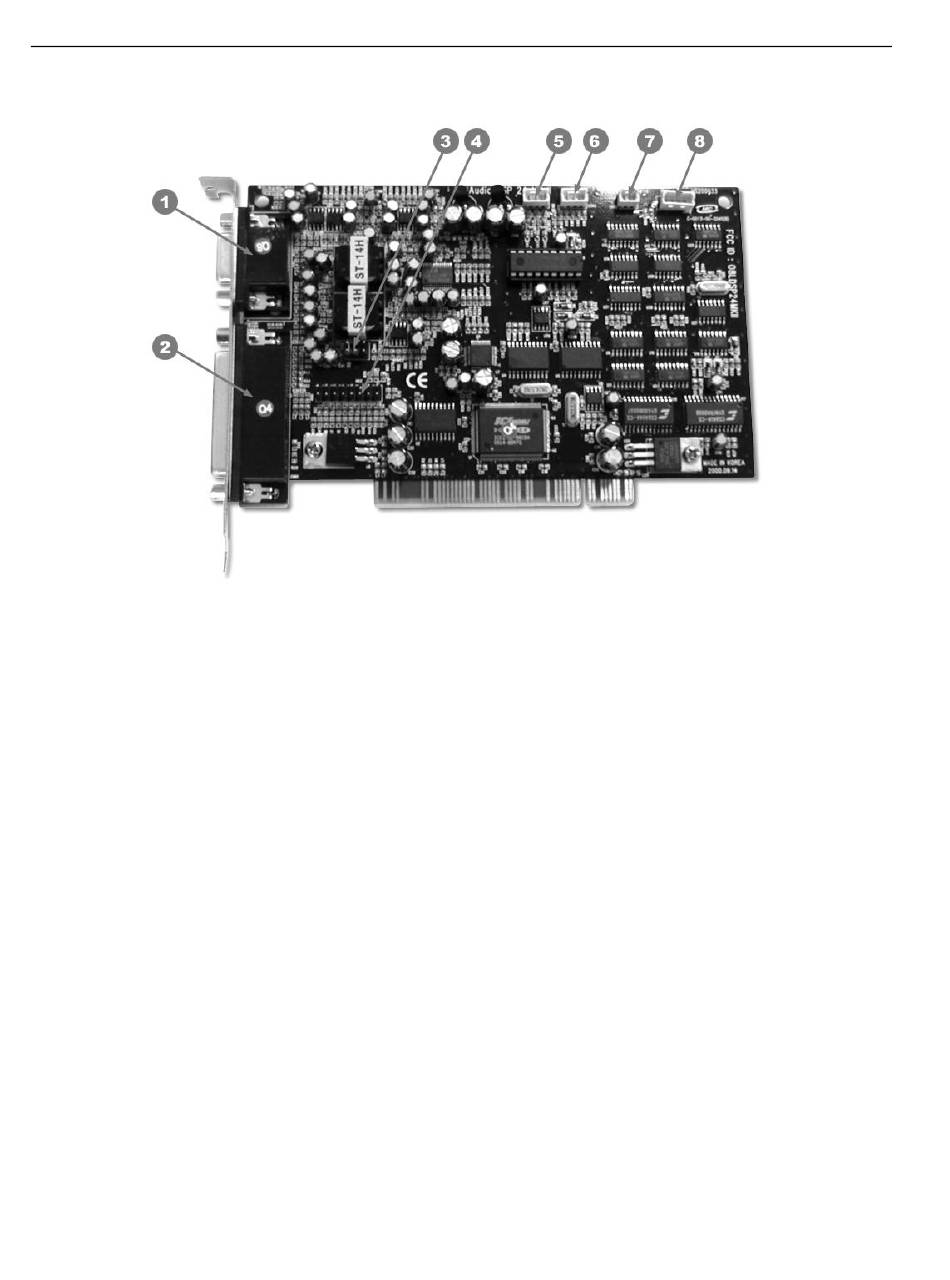

SoundTrack Audio DSP24 MK II

1. 15pin D-SUB connector for 4 XLR to 15pin cable
2. H-BUS Digital I/O connection via 44x44 pin cable for external boxes
3. Jumper settings for 1/8"-Output
4. Bracket connector – used when a SoundTrack DAC or Analog Bracket is installed
5. CD In – can be connected to the analog output from CD-ROM
6. Aux – can be connecte to the analog output from a TV-card or other analog source
7. CD In – digital output from CD-ROM (disabled when S/PDIF active and vice-versa)
8. S/PDIF I/O – Connection to the XG DB I daughtercard
