Setting Up Emagic Logic Soundtrack24 - Hoontech SoundTrack Audio DSP24 Manual

Setting up Emagic Logic SoundTrack24

Logic SoundTrack24 is a special version of the Logic Software from Emagic, designed to be used
with the Audio DSP24 card. It can either use the ASIO or the MME driver of the Audio DSP24 for
recording and playback.
•

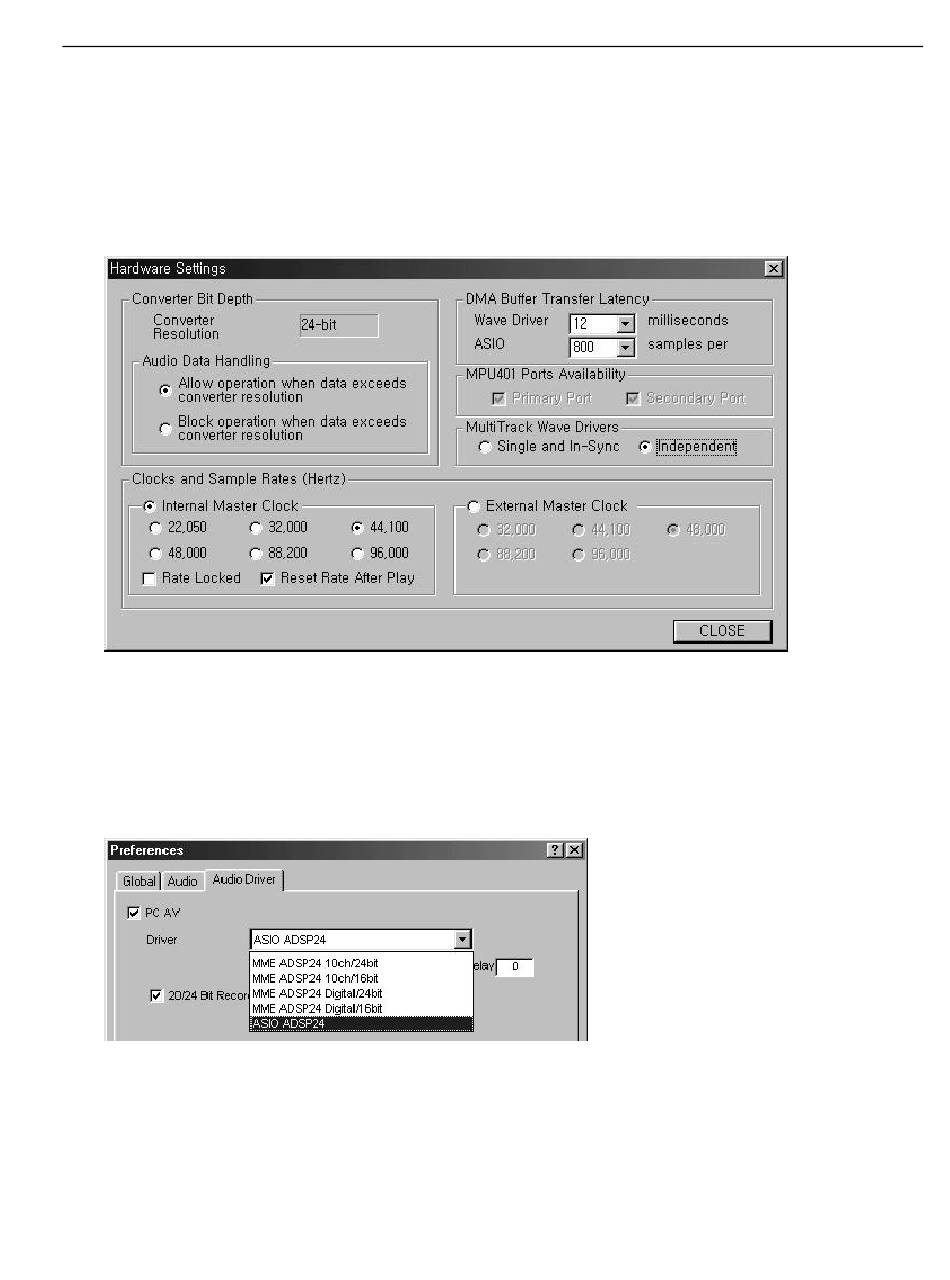

call File>Hardware settings in External Links.
•
select the ASIO buffer size: we recommend using a value of about 1800 – depending on the
system performance.
•
make sure the option Rate Locked is disabled
•
set the option MultiTrack Wave Drivers to Independent
•
launch Logic SoundTrack24 and select the option Audio>Audio Hardware & Drivers.
•
select Audio & Hardware Drivers and select ASIO ADSP 24 as ASIO device if you want to
use the ASIO driver. If you want to work with 24-bit resolution, enable the option 20/24 Bit
Recording.
