S
Audio DSP24
OUNDTRACK
External Boxes
Up to four external boxes with input channels can be connected to the Audio DSP24.
Connection

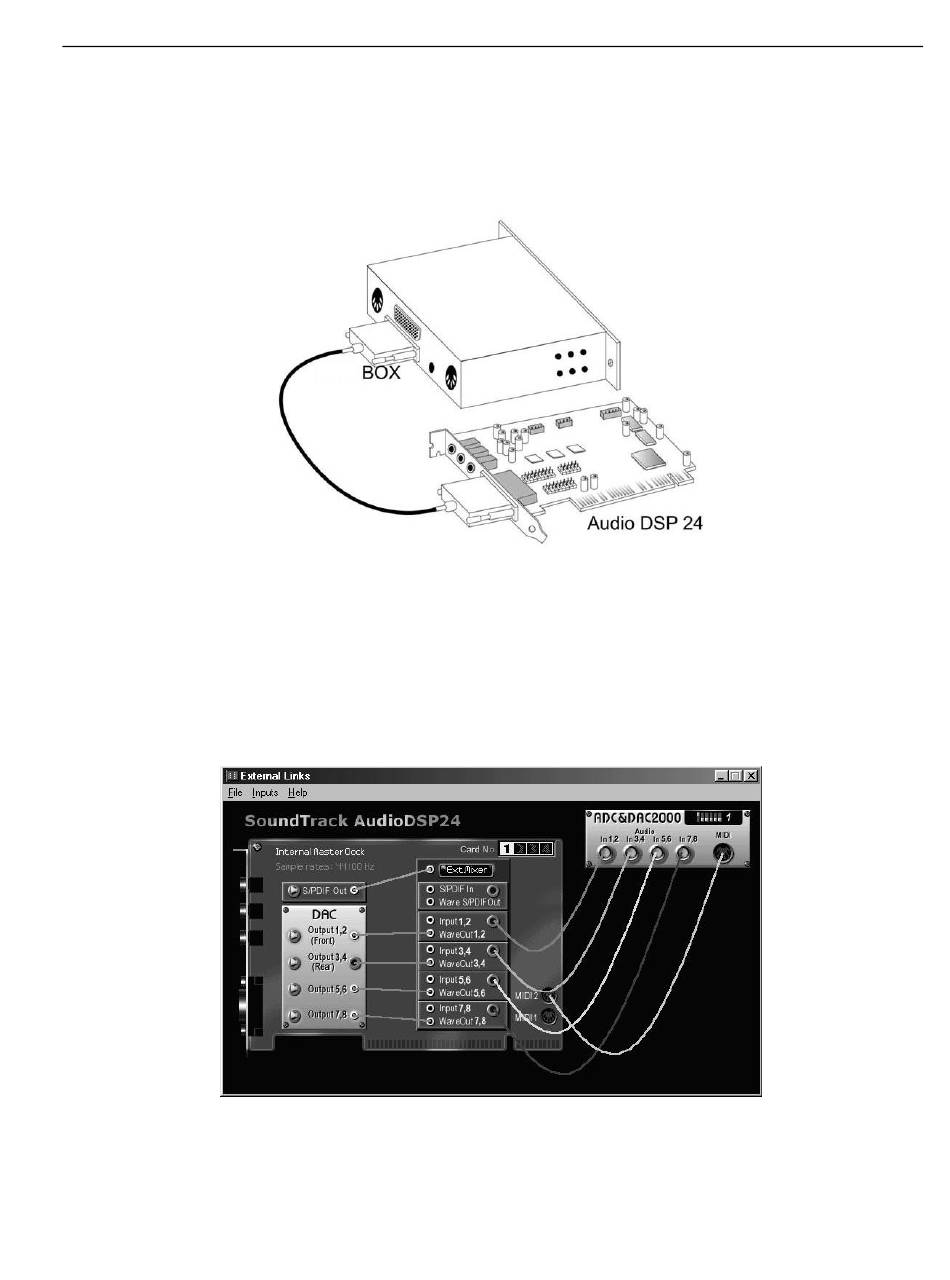

If you connect several external boxes to the same Audio DSP24 card, the first card is connected to
the card as shown in the picture above. The second box is connected to the second data connector
of the first box and so on. You have to make sure that each box has a unique number. The number
of an external box can be set with the DIP switches on the right side. Make sure to select the
number before you are mount the box to a rack.
External Links setup
- 35 -
