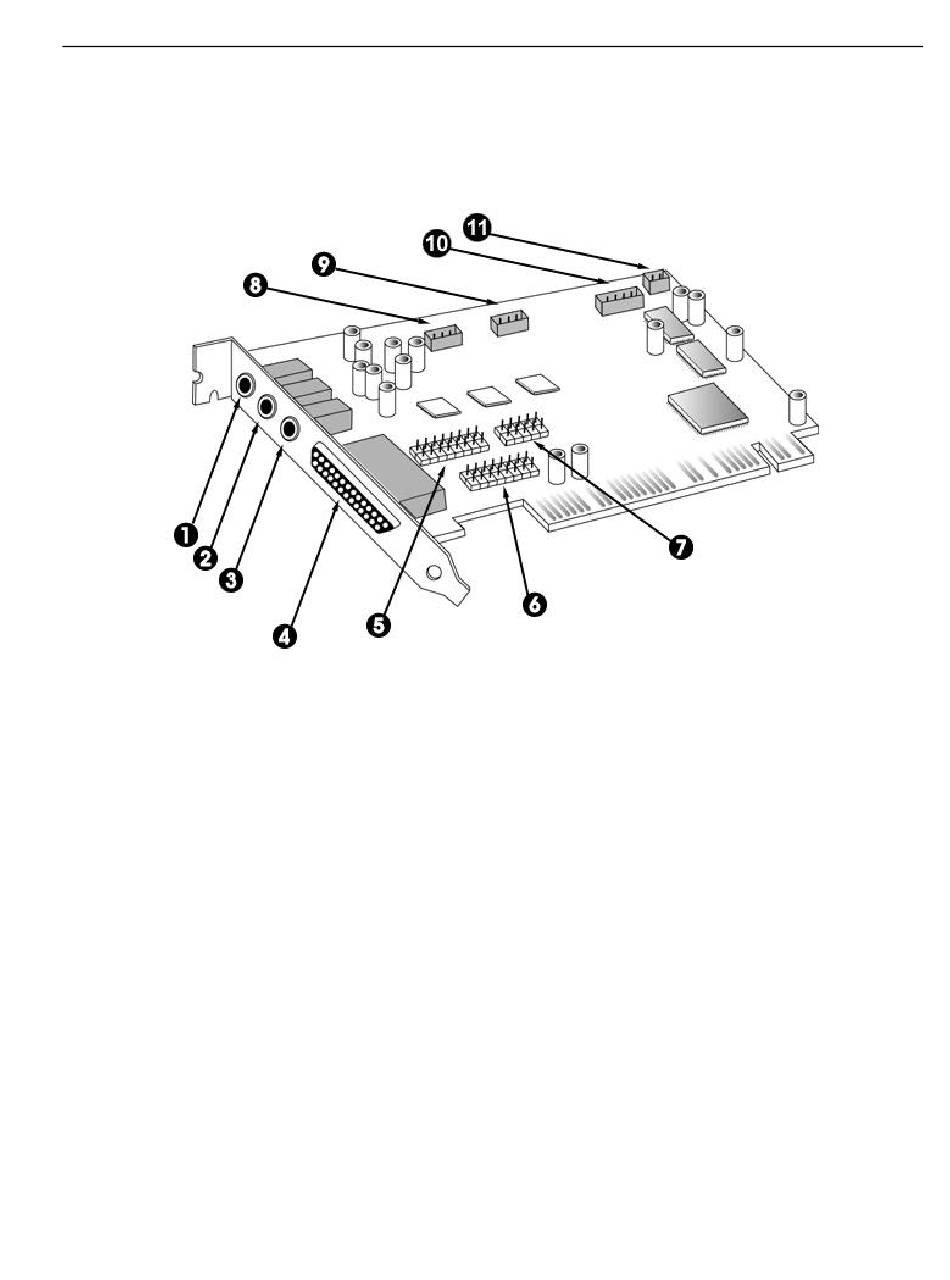

III. In- and output connectors

SoundTrack Audio DSP24

1. Mic In – 1/8" jack
2. Line In – 1/8" stereo jack
3. Line Out – 1/8" stereo jack
4. H-BUS Digital I/O connection via 44x44 pin cable for external boxes
5. 16 pin connector for optional Digital I/O card or analog bracket
6. MIDI connector (cable optional)
7. Digital Audio connector – used when a SoundTrack Digital Audio card is installed
8. CD In – can be connected to the analog output from CD-ROM
9. Aux – can be connecte to the analog output from a TV-card or other analog source
10. S/PDIF I/O – Connection to the XG DB I daughtercard
11. CD In – digital output from CD-ROM (disabled when S/PDIF active and vice-versa)
