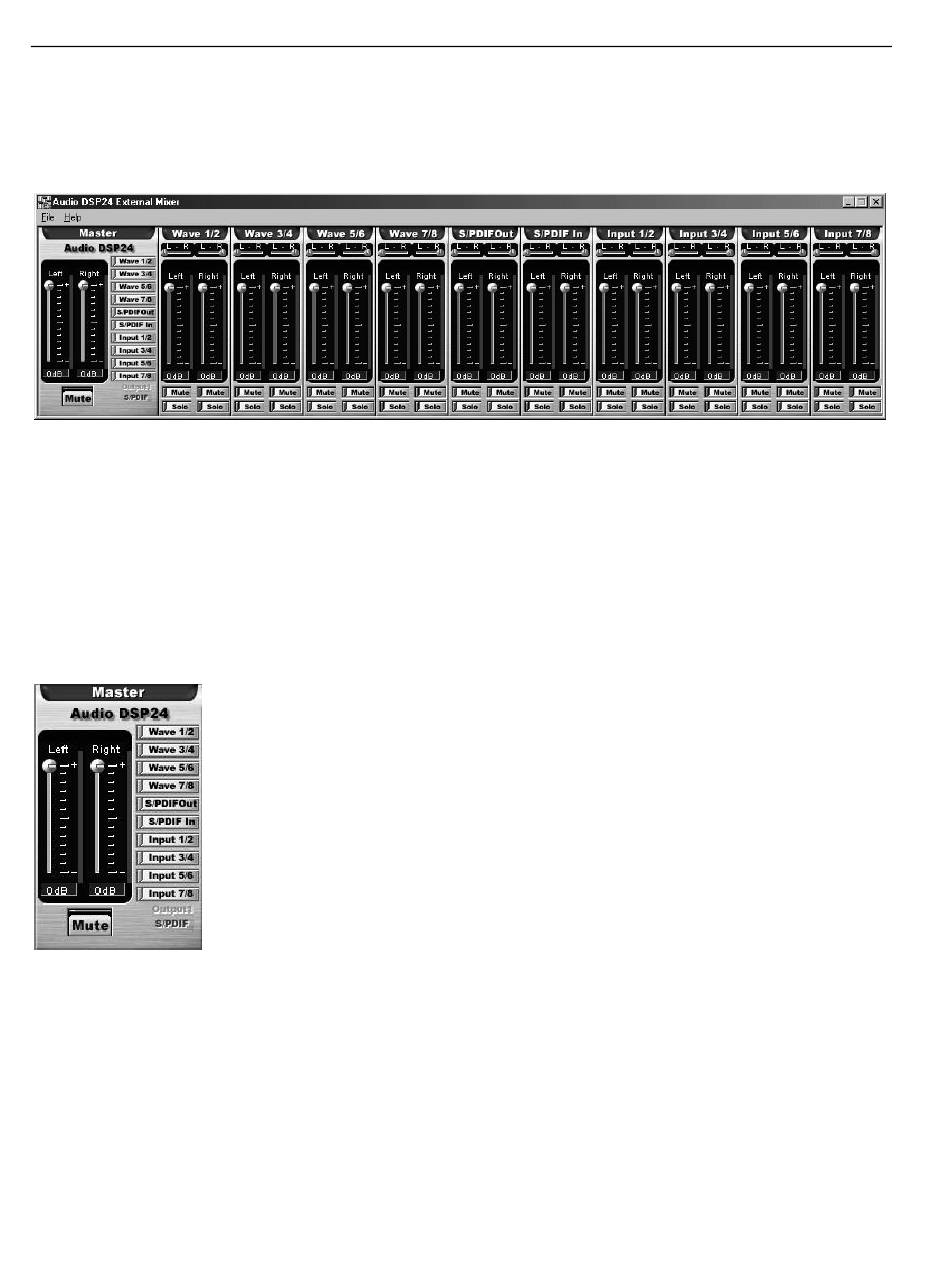

External Mixer

With the External Mixer you can control all incoming and outgoing signals (20 channels in total).
Open it by clicking on Call External Mixer.
Note: The External Mixer will only change the audible signal. You can output it either through
Ouput 1,2 and/or through the S/PDIF Output (setup in External Links). When you are recording an
input signal, the External Mixer does not change the signal level. This ensures that you are always
recording with best possible quality.
Master
Controls the output volume of the External Mixer. The signal controlled here will be played
through Output 1,2 and/or the S/PDIF Output.
You can control the the volume of the left and right channels independandly. Muting the signal is
possible as well.
