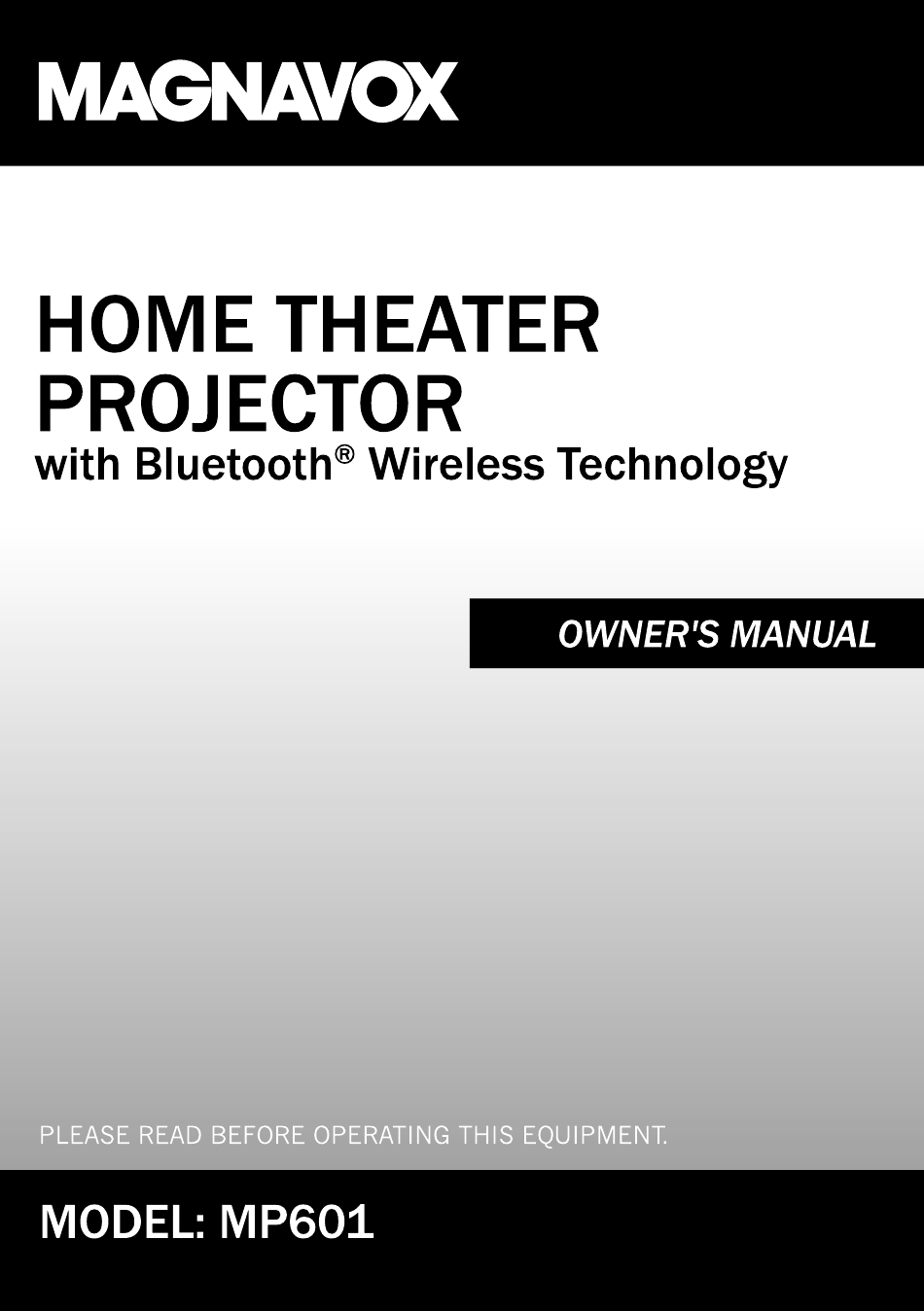

Magnavox MP601 Owner's Manual

With bluetooth wireless technology
Hide thumbs Also See for MP601:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP601 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnavox MP601

Summary of Contents for Magnavox MP601

  • Page 2 LIMITED WARRANTY FCCWARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void users authority to operate this devices. INFORMATION: This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.
  • Page 4 1. Do not look directly into the projector light. 2. Don’t touch the projector lens. 3. Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.

  • Page 5: Remove & Close The Lens Cover

    Remove & Close The Lens Cover Remove the lens Assemble the supplied When finished, remove Close the lens cover cover before using lens hood to the unit the lens hood from when unit not in use as illustrated below: the unit: CLOSE REMOVE LENS COVER...

  • Page 6: Distance Between The Projector And Screen

    • Move the projector as close to the center of the screen as possible. • The light beam from the projector should be perpendicular to the screen for a rectangular or square image. Distance Between The Projector And Screen Measure the distance between the projector and where you want to position the screen.

  • Page 7: Adjust The Focus And Keystone

    Follow below picture to adjust the vertical location. SCREEN SCREEN PROJECTOR VERTICAL VERTICAL DIMENSION DIMENSION PROJECTOR HDMI SCREEN VERTICAL DIMENSION PROJECTOR Adjust this knob ( ANGLE ADJ. knob) to fine- tune the display angle to higher. Adjust The Focus And Keystone Follow the below picture to adjust the focus and trapezoidal screen.

  • Page 8: Controls Of Remote

    Controls Of Remote FLIP EXIT MENU EXIT PQRS WXYZ RECALL FAV/ Install / Replace Battery Of Remote BATTERY PRECAUTIONS: Follow these precautions when using a battery in this device: 1. Use only the size and type of battery specified. 2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment.

  • Page 9: Controls Of Projector

    Controls Of Projector 15 16 17 18 19 20 HDMI 1 HDMI 2 LENS ANGEL ADJ. Knob VGA IN Port IR Sensor FOCUS ADJ. Knob 15. EAR PHONE Jack TRAPEZOIDAL ADJ. Knob 16. AV IN Jack 17. TF Card Slot 18.

  • Page 10: Power Source

    Power Source Connect the small plug from supplied AC/DC Adaptor to the DC IN Jack on the rear of unit then plug the AC/DC Adaptor to a wall outlet having AC 100-240V~; 50/60Hz. NOTES: • If you will not use the unit for an extended period of time, unplug the AC/DC Adaptor from wall outlet.

  • Page 11: Connect Av Show The Image On Projector Screen

    Connect HDMI Show The Image On Projector Screen Refer to the following picture to connect a set top box, a BD/DVD player or a streaming player to the HDMI input. 1. Turn off the unit before connecting HDMI cable. 2. After connecting, press the button to turn on unit, the power indicator power indicator will turn GREEN.

  • Page 12: Connect Vga Show The Image On Projector Screen

    Connect VGA Show The Image On Projector Screen Follow below picture to connect VGA cable and device. Turn off the unit before connect VGA cable. Press the button to turn off power of your projector before connection. After connect, press the button to turn on unit, power indicator will turn GREEN.

  • Page 13: Connect Audio Output

    Connect Audio Output ( Aux Out / Line Out / Earphones) Follow below picture to connect audio cable and device. Press the button to turn off power of your projector before connection. Use audio cable to connect follow below figure. After connect and turn on both units.

  • Page 14: Using Tf Card And Usb Playback

    Using TF Card And USB Playback (Media Player) Install USB / TF device: Turn off the unit before installing USB / TF card. Install the USB device into USB port / Install the TF device into TF slot. connecting, NOTE: Sub-Menu on Photo screen Figure 1.
  • Page 15 Using Bluetooth Playback Audio Pairing is the term used when two Bluetooth devices are connected wirelessly for the first time. This allows the devices to see each other and sets up a one to one communication channel between both devices. Bluetooth Connection 1.
  • Page 16 Using Projector Menu (Main Menu) Press button to enter projector menu. Picture Mode Standard This Picture menu is shown on right upper of Color Temperature view screen. Aspect Ratio Auto Noise Reduction PC Setting Reduce Display 100% TO SELECT to select different picture effect to Standard / Soft / User / Vidid.
  • Page 17 Using Projector Menu (Sound Menu) Press button to enter projector menu, press buttons to select SOUND menu. Sound Mode Standard Balance 0 This SOUND menu showed on right upper of view screen. Auto Volume Off TO SELECT to select different sound effect Standard / Music / Movie / Sports / User.
  • Page 18 Using Projector Menu (Option Menu) Press button to enter projector menu, press buttons to select OPTION menu. OSD Languag a i l Restore Factory Default This OPTION menu showed on right upper of Rotate 0 view screen. OSD Duration 30 S Software Update(USB) TO SELECT button to select different language.

  • Page 19: General Specification

    General Specification Bluetooth Version Light Source Type Brightness Level 2000 lumens Display Native Resolution 800 x 480 RGB HDMI Input Supported 1080p , 1080i , 720p, 576i , 480p, and 480i Video Resolution Power Consumption 30W Maximum Power Souce 12V , 2.5A, Display Color 16.7M Projection Size...
