Leviton 48211-6A Manual

WARNINGS AND CAUTIONS

• WARNING: TO AVOID DEATH OR SERIOUS PERSONAL INJURY:
- DO NOT push objects of any kind into this product through openings, as they may touch dangerous voltages.
- DO NOT touch uninsulated wires or terminals unless the wiring has been disconnected at the network interface.
• Read and understand all instructions. Follow all warnings and instructions marked on the product.
• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.
• Never install communications wiring or components during a lightning storm.
• Never install communications components in wet locations unless the components are designed specifically for use in wet locations.
• Use caution when installing or modifying communications wiring or components.
• SAVE THESE INSTRUCTIONS.

NOTES

• Use impedance matched volume controls when connecting speakers to this module to prevent damage to the amplifier.
• To prevent electrical shock, each opening must be filled with a module.

DESCRIPTION

Connects up to 6 pairs of speakers to one amplifier or receiver. Parallel connection
scheme assures best sound quality. Easily installs in the Leviton
Center (SMC) enclosure.

INSTALLATION

Speaker wire runs situated inside a wall need to be fire-rated. When in doubt, consult
your local electrical inspector for correct wire ratings (see Table 1). NOTE: The smaller
the number of wire gauge means it is a thicker wire.
Remove the screw terminals from the Leviton 1x6 Passive Audio Module board (pull the
screw terminal blocks from the mounting pins). Wire both (left and right) amplifier
or stereo receiver speaker outputs to a four position screw terminal, carefully observing
polarity. Firmly screw the wires in place making sure any loose wire strands are removed.
Push the connector with the amplifier wires onto the Audio Board marked "From Amp".
Wire speakers to the remaining 4-position screw terminal blocks, carefully observing
polarity. Firmly screw the wires in place making sure any loose wire strands are removed.
Push the remaining connectors onto the board marked "Room 1", "Room 2", etc.
If you are using stereo volume controls with some or all of the speakers connected to this
board, wire the correct number of Passive Audio board terminals to the volume control
inputs (usually labeled on the volume control "AMP" or "To Amp"). Plug the terminals
to the Passive Audio board labeled "Room1", "Room2" etc.
Follow the volume control instructions to connect the speakers to the volume controls.
Be careful that multiple volume controls connected to the Passive Audio board do not
overload the stereo amplifier or receiver. Check the volume control instructions for
maximum number of volume controls that can be connected to the amplifier, and for
proper operation of volume controls.
To install the module into the Leviton SMC, use the black plungers to firmly snap the
plastic bracket onto the enclosure.
To view pictures, descriptions, specifications, or instruction sheets for the parts described
in this instruction sheet, please visit our web site at: www.leviton.com.
Table 1 / Tableau 1 / Tabla 1

Fire resistance UL rated speaker wire gauge chart

Fire resistance UL rated speaker
wire gauge chart
Length Minimum Gauge
Up to 50 feet (15 m) 18-gauge
50-150 feet (15-45 m) 16-gauge (thicker)
Over 150 feet (45 m) 14-gauge (thickest)

FOR CANADA ONLY

For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper
use for one year from the purchase date. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for
a particular purpose, is limited to one year. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
1x6 Passive Audio Module
Cat. No. 48211-6A

INSTALLATION INSTRUCTIONS

® Structured Media™
Tableau des calibres de fil de haut-parleur
résistant au feu (UL)
Longueur
Jusqu'à 15 mètres (50 pi)
De 15 à 45 mètres (50 à 150 pi) 16 (plus gros)
Plus de 45 mètres (150 pi)

LIMITED 1 YEAR WARRANTY AND EXCLUSIONS

For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com

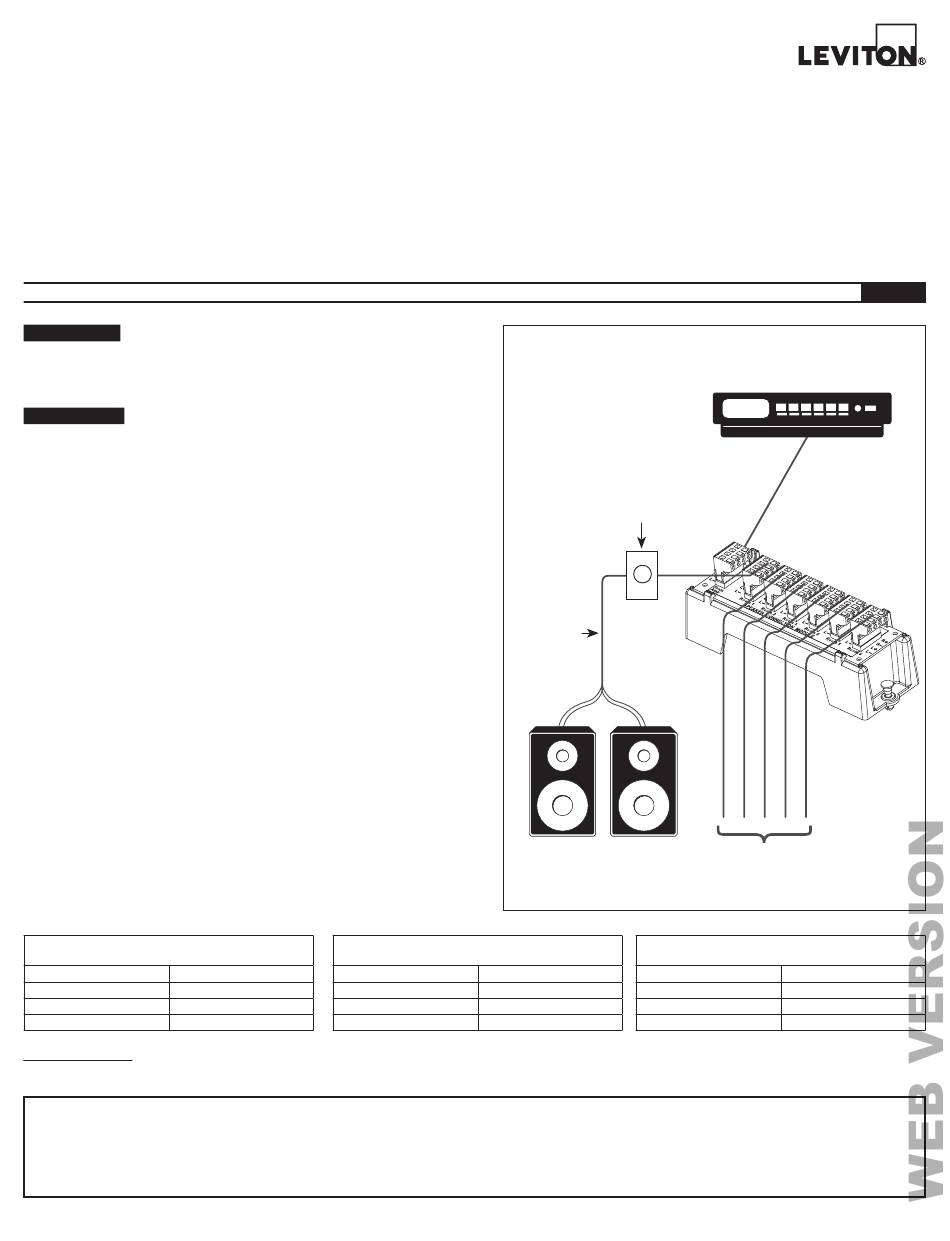

FIG. 1
