1x6 passive audio module component specifications

Advertisement

Component
Specifications

APPLICATION

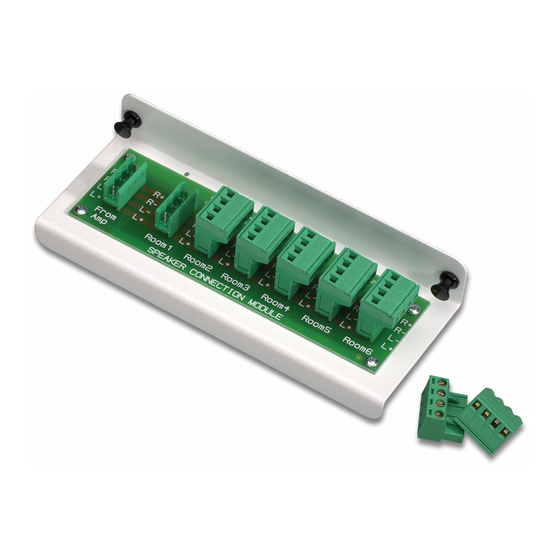

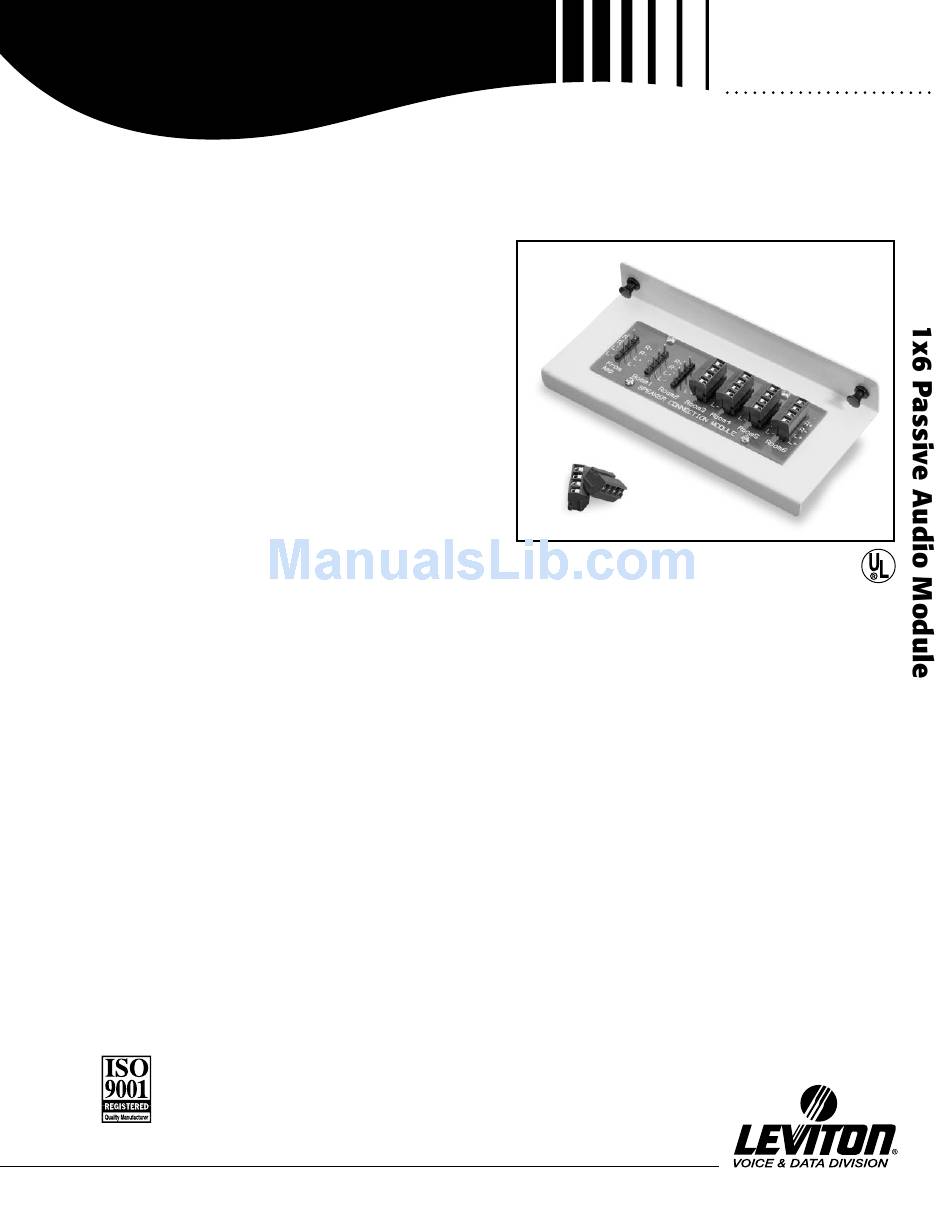

The 1x6 Passive Audio Module is an easy, centralized audio system
distribution module that connects up to six pairs of speakers from an
entertainment center or amplifier. Just run speaker wire to this
passive bridging module and fill multiple rooms with high-quality
sound.

STANDARDS COMPLIANCE

Meets or exceeds applicable standards: UL and cULus listed.

PHYSICAL SPECIFICATIONS

Dimensions:
6.58"h x 2.89"w x 1.42"d
Wire Gauge:
14-18 AWG
Requirements:
Product must be used with impedance-matched
volume controls or controllers.

DESIGN CONSIDERATIONS

• Combine with Decora
speakers from one amplifier or receiver.
• Parallel connection scheme insures the best sound quality.
• User-removable connectors facilitate installation.
• Connects with standard speaker wire.

WARRANTY INFORMATION

• Two-year limited product warranty.
For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-722-2082
Spec sheets and updates are also available at www.levitonvoicedata.com.
2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA# GS-35F-1628G
1x6 Passive Audio Module
®
Volume Controls to control up to six pairs of
See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk
For ELECTRONIC Typical Specs see (.TXT) file on disk.

TYPICAL SPECIFICATIONS

The 1x6 Passive Audio Module shall be UL and cULus listed. It shall
support up to 6 pairs of speakers, use 14-18 AWG gauged wire
and incorporate user-removable connectors. The manufacturer
shall provide a two-year limited product warranty.
