Installation manual
Installation in the following places may result in some troubles.
Do not install the unit in such places below.
A place full of machine oil.
A place full of sulphuric gas.
A place where high-frequency radio waves are likely to be
generated as from audio equipment, welders, and medical
equipment.

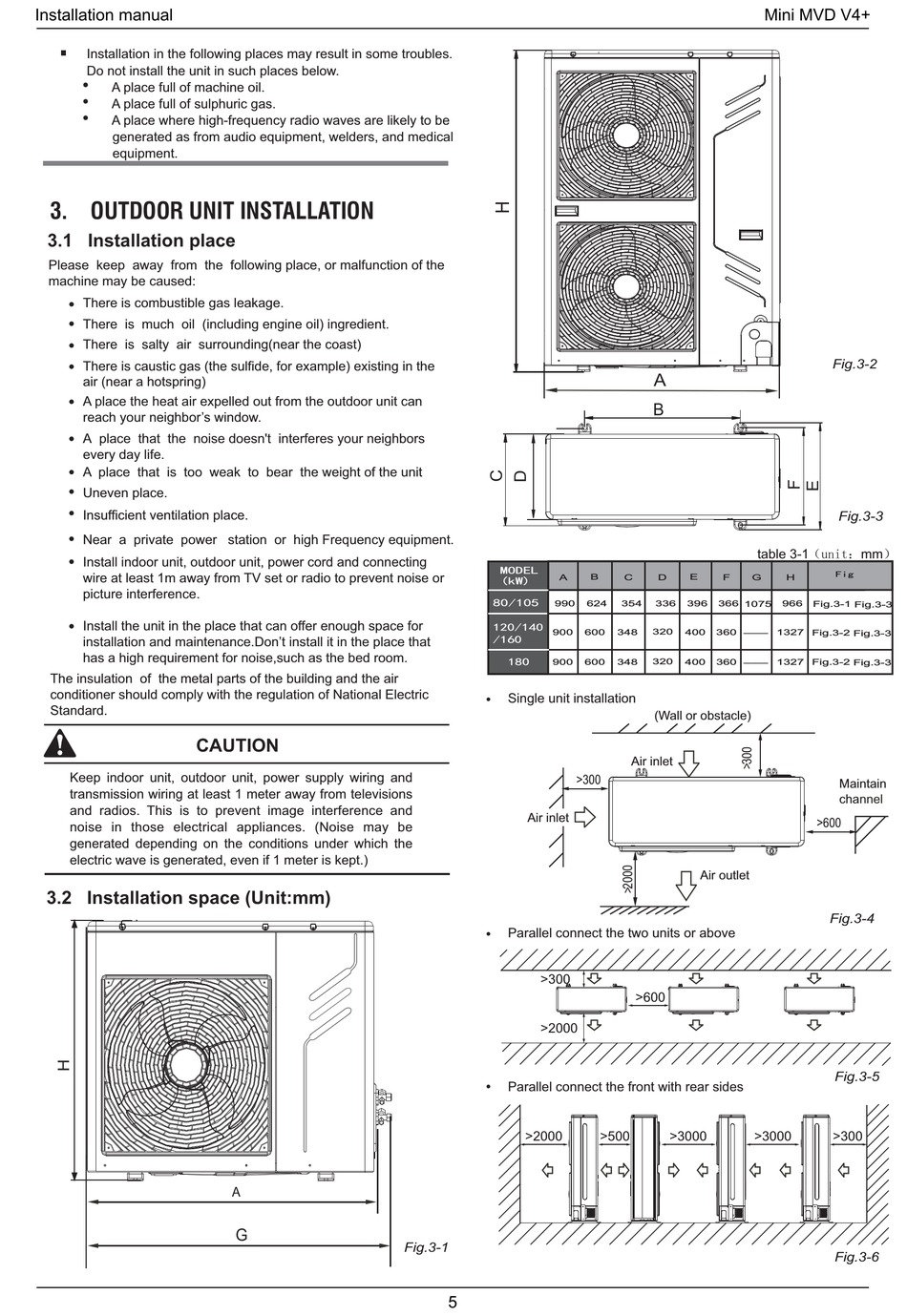

3. OUTDOOR UNIT INSTALLATION

3.1 Installation place
Please keep away from the following place, or malfunction of the
machine may be caused:
There is combustible gas leakage.
There is much oil (including engine oil) ingredient.
There is salty air surrounding(near the coast)
There is caustic gas (the sulfide, for example) existing in the
air (near a hotspring)
A place the heat air expelled out from the outdoor unit can
reach your neighbor's window.
A place that the noise doesn't interferes your neighbors
every day life.
A place that is too weak to bear the weight of the unit
Uneven place.
Insufficient ventilation place.
Near a private power station or high Frequency equipment.
Install indoor unit, outdoor unit, power cord and connecting
wire at least 1m away from TV set or radio to prevent noise or
picture interference.
Install the unit in the place that can offer enough space for
installation and maintenance.Don't install it in the place that
has a high requirement for noise,such as the bed room.
The insulation of the metal parts of the building and the air
conditioner should comply with the regulation of National Electric
Standard.
CAUTION
Keep indoor unit, outdoor unit, power supply wiring and
transmission wiring at least 1 meter away from televisions
and radios. This is to prevent image interference and
noise in those electrical appliances. (Noise may be
generated depending on the conditions under which the
electric wave is generated, even if 1 meter is kept.)
3.2 Installation space (Unit:mm)
A
G
A
990
900
900
Single unit installation
Air inlet
Parallel connect the two units or above
>300
>2000
Parallel connect the front with rear sides
>2000
Fig.3-1
5
A
B
B C D E F
624 354 336 396 366
1075
600 348 320 400 360
——
600 348 320 400 360
——
(Wall or obstacle)
Air inlet
>300
Air outlet
>600
>500 >3000
Mini MVD V4+
Fig.3-2
Fig.3-3
table 3-1 mm
G H
966 Fig.3-1 Fig.3-3
1327
Fig.3-2 Fig.3-3
1327
Fig.3-2 Fig.3-3
Maintain
channel
>600
Fig.3-4
Fig.3-5
>3000 >300
Fig.3-6
