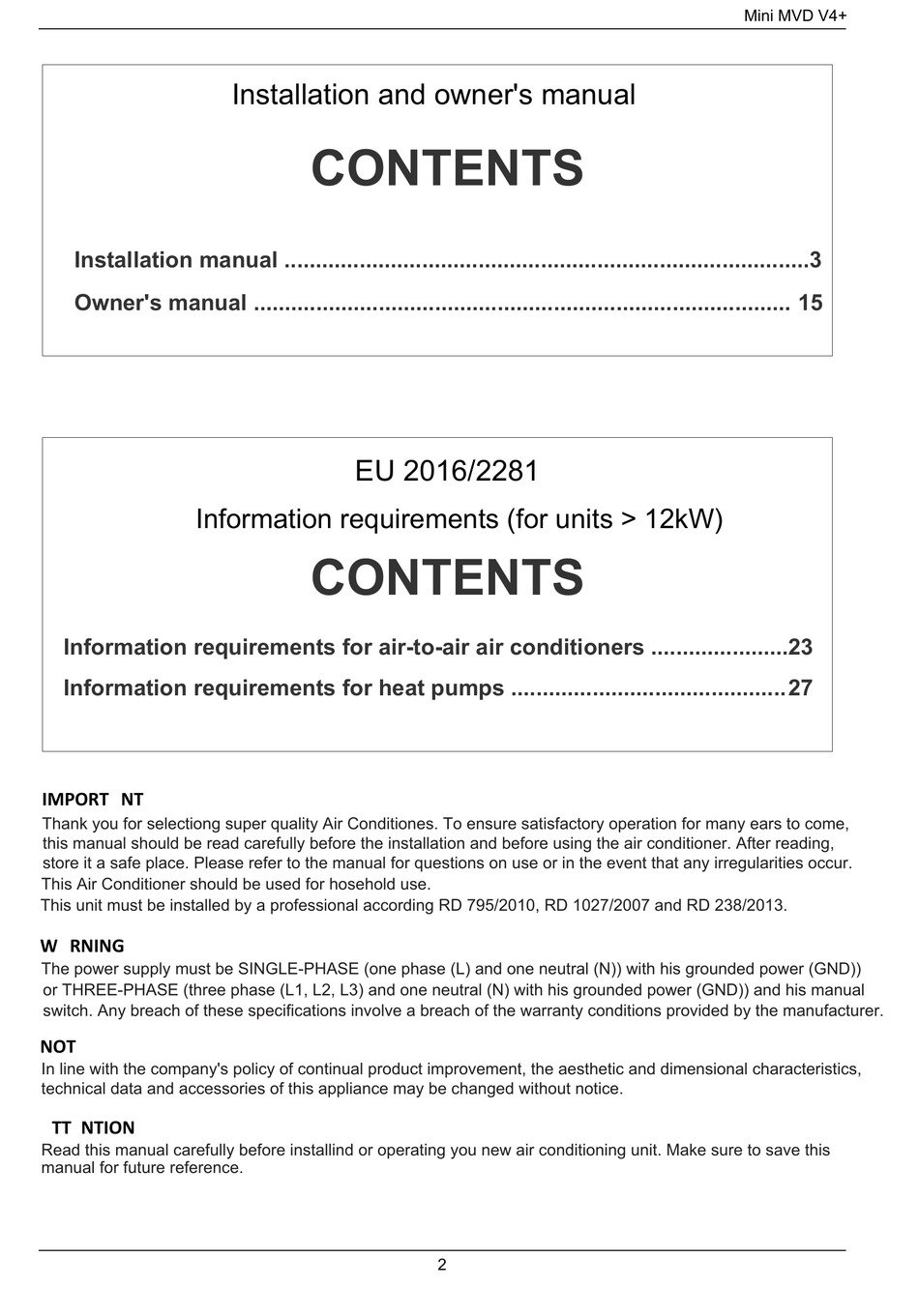

mundoclima MINI MVD V4+ Installation And Owner's Manual And Information Requirements page 2

Installation manual ....................................................................................3
Owner's manual ...................................................................................... 15
Information requirements (for units > 12kW)
Information requirements for air-to-air air conditioners ......................23
Information requirements for heat pumps ............................................27
/DWKZd Ed
Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come,
this manual should be read carefully before the installation and before using the air conditioner. After reading,
store it a safe place. Please refer to the manual for questions on use or in the event that any irregularities occur.
This Air Conditioner should be used for hosehold use.
This unit must be installed by a professional according RD 795/2010, RD 1027/2007 and RD 238/2013.
t ZE/E'
The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND))
or THREE-PHASE (three phase (L1, L2, L3) and one neutral (N) with his grounded power (GND)) and his manual
switch. Any breach of these specifications involve a breach of the warranty conditions provided by the manufacturer.
EKd
In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics,
technical data and accessories of this appliance may be changed without notice.
dd Ed/KE
Read this manual carefully before installind or operating you new air conditioning unit. Make sure to save this
manual for future reference.
Installation and owner's manual
CONTENTS
EU 2016/2281
CONTENTS
2
Mini MVD V4+
