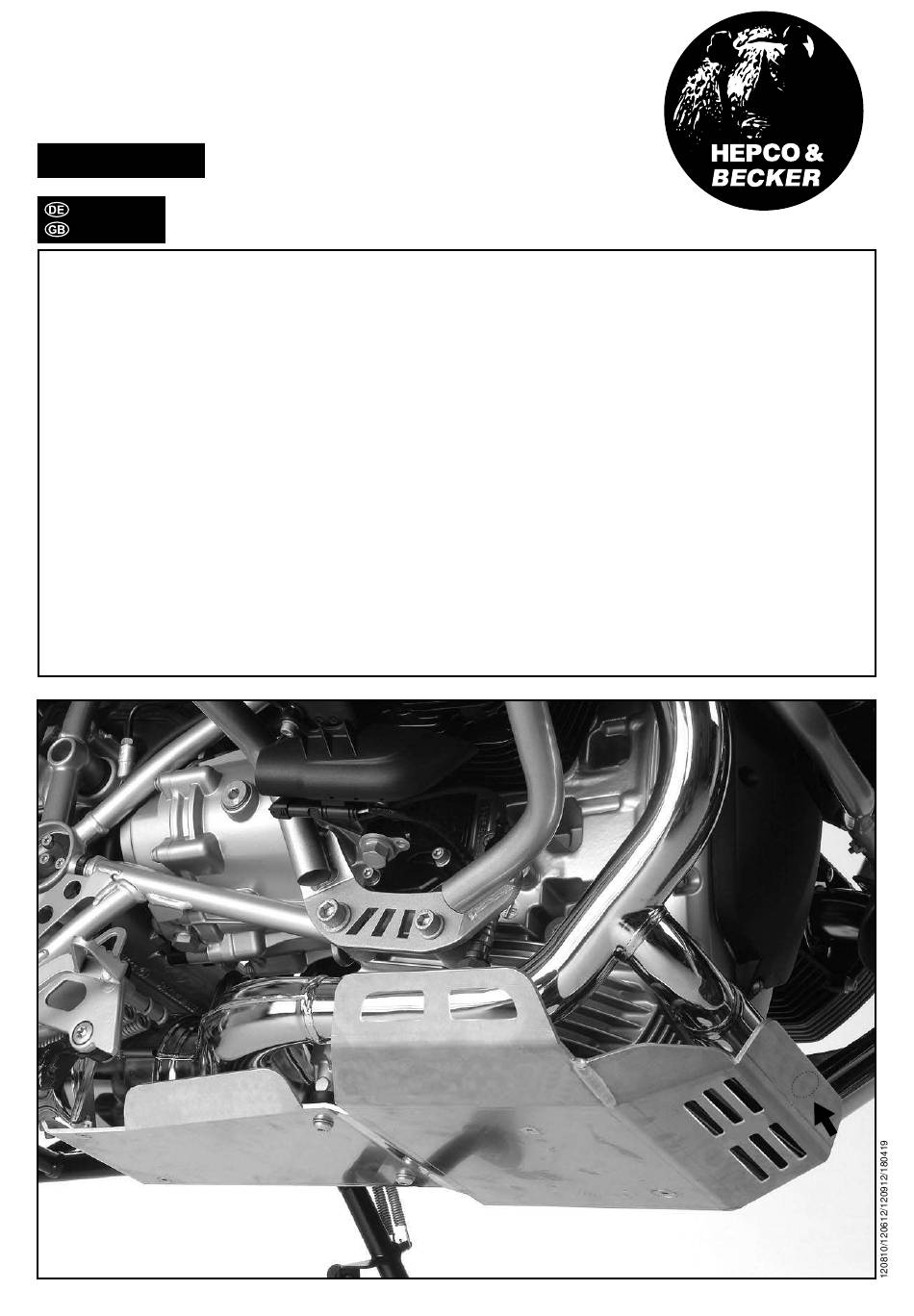

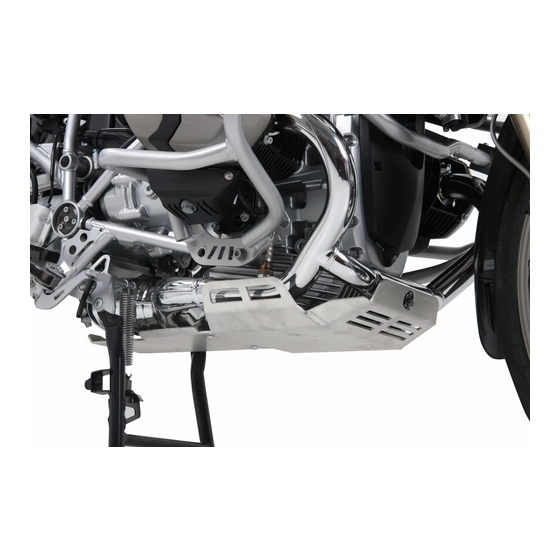

Motorschutzplatte / Skid plate
BMW R 1200 GS / Adventure
Baujahr 2004-2007 / date of manufacture 2004-2007
Artikel Nr.: / Item-no.:
637
810
00 12
alu
INHALT
CONTENTS
1 705.530
Motorschutzplatte
1 705.531
Winkelhalterung
2 151.262
Silentblock M8 x 30 mm Gesamtlänge
(Gummielement ø30 x15 mm)
2 151.388
Schelle gummiert ø15 x 15 mm
1 151.264
Alu-Distanz ø25 x ø9 x 7 mm
1 150.814
Alu-Distanz ø25 x ø9 x 15 mm
1 151.245
Alu-Distanz ø18 x ø7 x 10 mm
1 151.145
Senkschraube M8X30
2 151.258
Senkschraube M6x16
1 151.257
Senkschraube M6x10
1 151.024
Senkschraube M6x20
1 151.102
Senkschraube M6x25
2 150.911
Linsenkopfschraube M6 x 16
2 150.937
Linsenkopfschraube M8X16
4 150.799
selbstsichernde Mutter M6
2 150.810
U-Scheibe ø8,4
4 150.809
U-Scheibe ø6,4
1 330.302
Emblem H&B ø30mm
1 705.530
engine protection plate
1 705.531
mounting bow
2 151.262
silent block M8 x ø30x 15mm
2 151.388
clamp with rubber ø15 x 15 mm
1 151.264
spacer ø25 x ø9 x 7 mm
1 150.814
spacer ø25 x ø9 x 15 mm
1 151.245
spacer ø18 x ø7 x 10 mm
1 151.145
countersunk head allen screw M8X30
2 151.258
countersunk head allen screw M6x16
1 151.257
countersunk head allen screw M6x10
1 151.024
countersunk head allen screw M6x20
1 151.102
countersunk head allen screw M6x25
2 150.911
filister head screw M6 x 16
2 150.937
filister head screw M8X16
4 150.799
self-lock nut M6
2 150.810
washer ø8,4
4 150.809
washer ø6,4
1 330.302
emblem H&B ø30mm
Emblem
einkleben
stick
emblem
here
1
