Summary of Contents for Panorama Antennas SW3-665

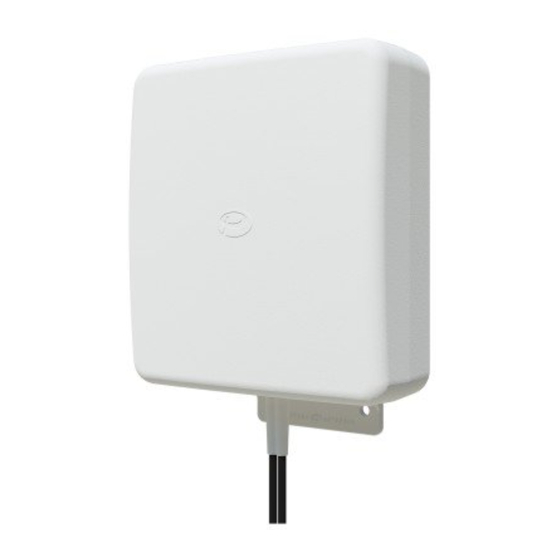

- Page 1 Ultra Wideband MiMo Antenna Installation Guide & Safety Information Maximise your Connectivity, Minimise your Antennas...
- Page 2 SELECTING A POSITION A.1 - Check that all the contents are in the box - This should include: 1 x Antenna 1 x U-Bolt 4 x Plain Washers 1 x Desk Stand 1 x U-Bolt Plate 4 x Spring Washers 2 x Wall Bracket Plates 4 x Screws 2 x Nuts...
-
Page 3: Important Safety Information
SELECTING A POSITION A.3. Mounting the Antenna Mounting the antenna internally To mount the antenna internally use the supplied desk stand and follow the instructions at B. DESK MOUNTING INSTRUCTIONS Mounting the antenna externally Mounting the antenna outside will provide optimum signal strength and data rates. Begin by following the instructions at A.1 &... - Page 4 DESK MOUNTING INSTRUCTIONS 1 - To Desk Mount this antenna you will need: 1 x Antenna 1 x Desk Stand 2 - Desk Mounting the antenna - Internal use only Gently press the base of the antenna onto the desk stand ensuring that a ‘Click’ sound is made when the pegs are engaged.
- Page 5 MAST MOUNTING INSTRUCTIONS 1 - To Mast Mount this antenna you will need: 1 x Antenna 1 x U-Bolt 1 x U-Bolt Plate 2 x Washers 2 x Spring Washers 2 x Nuts 2 - Mast Mounting the antenna externally Ensure that the selected mounting location can be safely accessed with the equipment that you have available and mount the antenna so that it has at least 1 metre (3.3’) of clearance from all obstructions if possible.
-
Page 6: Wall Mounting Instructions
WALL MOUNTING INSTRUCTIONS www.panorama-antennas.com... - Page 7 WALL MOUNTING INSTRUCTIONS 1 - To Wall Mount this antenna you will need: 1 x Antenna 2 x Wall Bracket Plates 4 x Screws 4 x Washers 4 x Spring Washers 2 x Nuts 2 - Fix the mounting bracket to the external wall or other flat surface using suitable screws and wall plugs (not supplied).
- Page 8 Waiver: This document represents information compiled to the best of our present knowledge. It is not intended as a representation or warranty of fitness of the products described for any particular purpose. This document details guidelines for general information purposes only. Always seek specialist advice when planning installations and ensure that antennas are always installed by a properly qualified installer in compliance with local laws and regulations.
