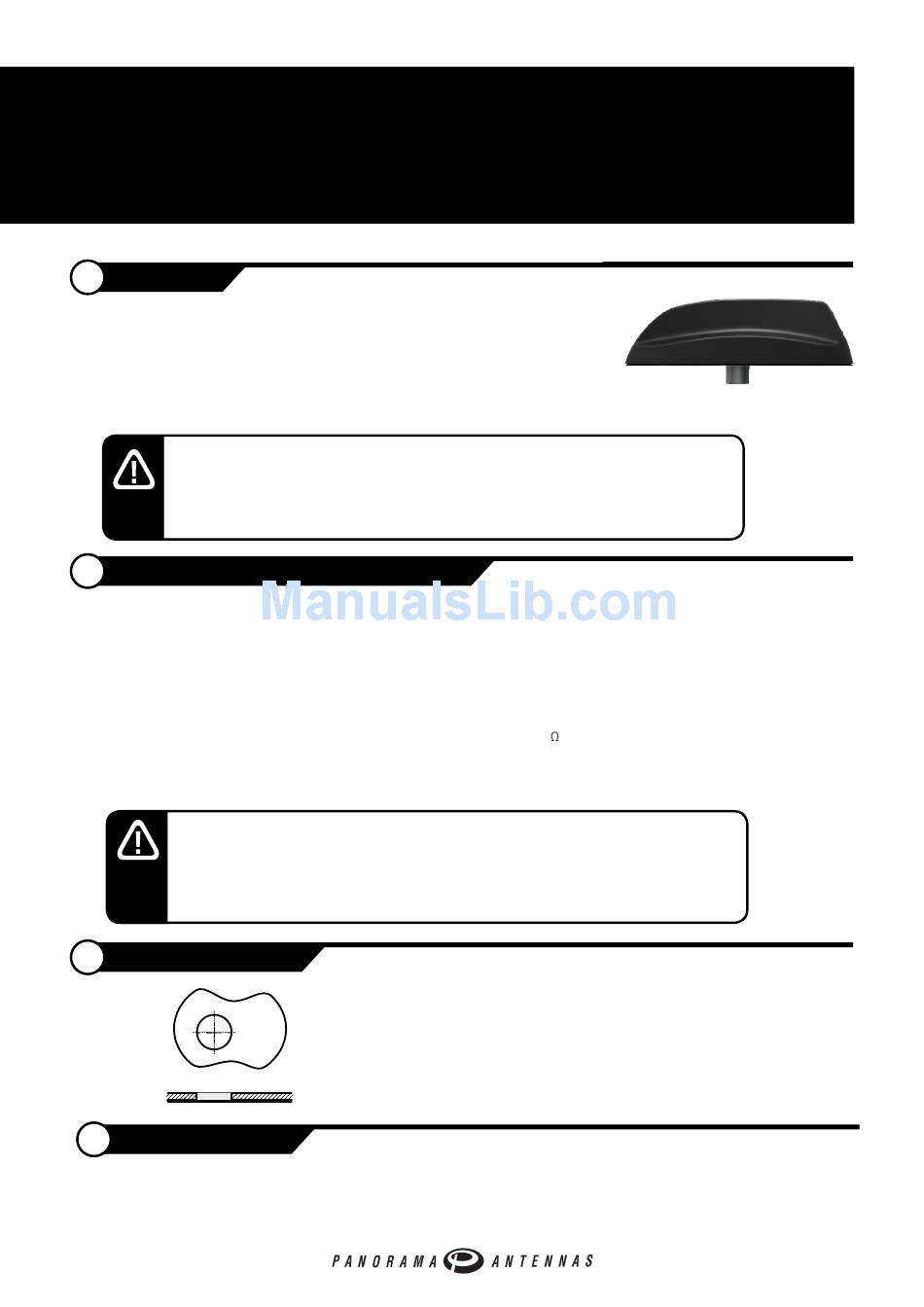

Installation Instructions – SW3-689
GPSD Series
A.

Introduction

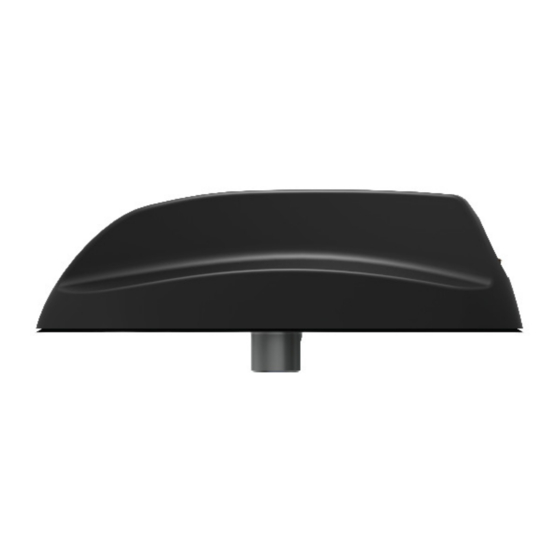

The GPSD series is a high performance multi-function shark fi n OEM style antenna with
2x2 MiMo for 4G/LTE. It incorporates an active GPS /GNSS antenna with 26dB gain LNA
and there is a version that also includes 2x2 MIMo dual band WiFi antennas. In addition, a
mounting stud is fi tted, to allow a range of antenna whips to be used. The GPSD is suitable
for fi tment to vehicle panels of up to 3mm (0.12") or 8mm (0.31") depending on which
type of earthing washer is selected. (see section D). Heat shrink tubes are included in
the kit, to enable the coaxial connections to be sealed as an extra precaution if required.
Electrical Safety Note
This product contains an active GPS/GNSS antenna (part number SR8-HG26). Rated voltage: 3-5VDC
Rated current: 20mA maximum
The supply to this device must be provided with overcurrent protection of 1A maximum.
B.

Mounting requirements and selecting location

For optimum performance it is recommended to fi t the antenna on a conductive (metal) panel, but if a whip is not going to be fi tted, then
the antenna can be mounted on a non-conductive surface and still provide acceptable performance across all functions. If a whip will be
used, then the antenna must be fi tted on a conductive ground plane - recommended size is minimum ½ wavelength diameter at the lowest
frequency of whip operation. To calculate required size see below:
When fi tting on a non-metallic panel, a ground plane plate of suitable size should be fabricated and fi tted under the mounting panel; the
earthing washer must make low resistance electrical contact with this plate (<0.2 ).Select a mounting location, checking for roof curvature
to ensure that the antenna base will have a fl at mounting surface. The antenna should be located as far as possible from surrounding roof
mounted items (e.g light bar, air con unit). Ensure that there is adequate under panel clearance and that there is no double skin panel or
cross brace present. Measure to check for central position if applicable.

Important Note Regarding Sealing

In order to ensure that the installation is properly sealed against the mounting surface care must
be taken regarding curvature of the mounting panel. It is highly recommended to install the antenna
on a clean, fl at and level surface. After installation the compression of the rubber boot against the
mounting panel should be checked and a small bead of neutral cure silicone sealant can be apprlied
around the periphery of the mounting boot if requried.
C.

Prepare and drill hole

Hole
∅19
D.

Fitting the antenna

Remove protective backing from underside of antenna, feed coaxial cables through panel. Position the antenna over the hole ensuring
correct orientation and stick to panel by applying fi rm downward pressure. It may be advisable to apply a very small amount of neutral cure
silicone sealant around the base of the mounting boot to overcome friction and allow the boot to fully compress against the mounting panel
150 / frequency in MHz = ½ wavelength (m)
Examples: 150MHz =100cm (39.4"); 400MHz = 38cm (15"); 900MHz =16cms (6.3").
Mask panel area around hole position to protect paintwork and headliner. Drill a pilot hole, and
then increase to 19mm (3/4"), ensuring that drill/cutter bit does not contact headliner. Clean area
around the hole, carefully removing all swarf.
Remove paint and primer from under panel surface to ensure adequate earth contact by washer
and nut. Apply some petroleum jelly or paint around the hole to prevent corrosion.
Fig.1
SW3-689 - Document Version 2.2
