INSTALLATION INSTRUCTIONS
LP[G]MM SERIES
SW3-259 - v1.2

Advertisement

loading

Related Manuals for Panorama Antennas LPMM Series

Summary of Contents for Panorama Antennas LPMM Series

  • Page 1 INSTALLATION INSTRUCTIONS LP[G]MM SERIES SW3-259 - v1.2...

  • Page 2: Contact Information

    CONTENTS INSTALLATION INSTRUCTIONS SW3-259 LP[G]MM SERIES - V1.2 CONTACT INFORMATION www.panorama-antennas.com...

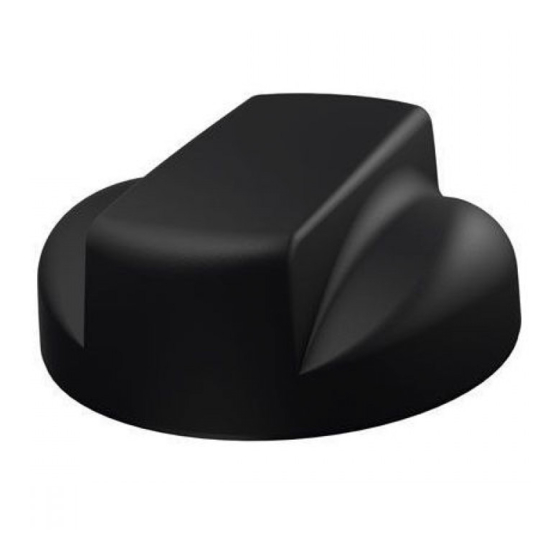

  • Page 3 INTRODUCTION The LP[G]MM antenna series offers a comprehensive range of antennas for vehicular applications requiring MiMo function for 4G/LTE. The antenna range offers a robust, low profile housing incorporating two ultra-wideband cellular elements supporting 4G bands, with fall back capability to 3G/2G. Versions of the antenna are available with additional 2x2, 3x3 or 4x4 MiMo function for dual band WiFi and the LG version incorporates an active GNSS antenna suitable for use with GPS, GLONASS, BeiDou and Galileo devices.

  • Page 4: Fitting The Antenna

    PREPARE AND DRILL HOLE Mask the panel area around the hole position to protect the paintwork and headliner. Drill a pilot hole, and then either use a hole cutter of correct size or increase the hole diameter to 19mm (3/4”), ensuring that drill/cutter bit does not contact the internal headliner.
  • Page 5 COMMISSION AND TEST Check the GNSS cable (if applicable): • Check the GNSS cable with DC to measure high resistance. • Connect the GNSS cable to the GNSS receiver and check for satellite acquisition. Check the comms cables: • Earth continuity: connector body to vehicle ground should measure <0.2Ω...
  • Page 6 Low Profile MiMo Antenna with active GNSS Antenna Manufacturer: Panorama Antennas Ltd 61 Frogmore, London, SW18 1HF, U.K. This declaration is issued under the sole responsibility of the manufacturer The object of the declaration described above is in conformity with the relevant Union...
  • Page 7 Telephone : 020 8877 4444 PANORAMA ANTENNAS, INC. | 1551 Heritage Parkway, Suite 101, Mansfield, TX, 76063, USA | Telephone :+01 817-539-1888 PANORAMA ANTENNAS PTY LTD. | Unit 2, 50 Parker Court, Pinkenba, QLD 4008, Australia | Telephone :+01 817-539-1888 www.panorama-antennas.com...
  • Page 8 Panorama Antennas Limited. Frogmore, Wandsworth, London, SW18 1HF www.panorama-antennas.com...
