2.3 LOADING AND UNLOADING INSTRUCTIONS

THESE OPERATIONS SHOULD BE PERFORMED ONLY BY QUALIFIED AND EXPERIENCED PERSON- T
NEL.
W WHEN THE PLANTER IS DELIVERED, IT SHOULD BE IMMEDIATELY CHECKED TO DETECT POSSIBLE
DAMAGES DURING TRANSPORTATION OR MISSING PIECES. ONLY THE IMMEDIATE REPORTING
OF THIS TO THE DELIVERER WILL RESULT IN COMPENSATION.
LOADING AND UNLOADING THE MACHINE MUST BE PERFORMED, IF POSSIBLE, USING A BRIDGE CRA-
NE.
T The following pictures show the position of the holes on the FRAME (see section 3.7 FRAMES) where
the tow ropes must be tied, depending on the version of the machine:
- In Version FIXED, VARIANT MANUAL, TELESCOPIC, VARIANT and VARIANT IDRA, the opera-
tions of LOADING and UNLOADING must be performed using 2 points (Fig. 2.1).
- In FOLDING versions of the machine (Fig. 2.2), the operations of LOADING and UNLOADING must
be performed using 4 points:
- 2 MAIN coupling points, placed on the three-point FRAME (B, Fig. 2.2).
- 2 SECONDARY coupling points, placed on the supporting legs (C, Fig. 2.2).
WARNING: PLEASE RESPECT THE DISTANCES A (2 METRES) IN ORDER TO PREVENT DAMA-
GES TO THE MACHINE DURING THE RAISING OPERATION (Fig. 2.1).
SAFETY INSTRUCTIONS
9

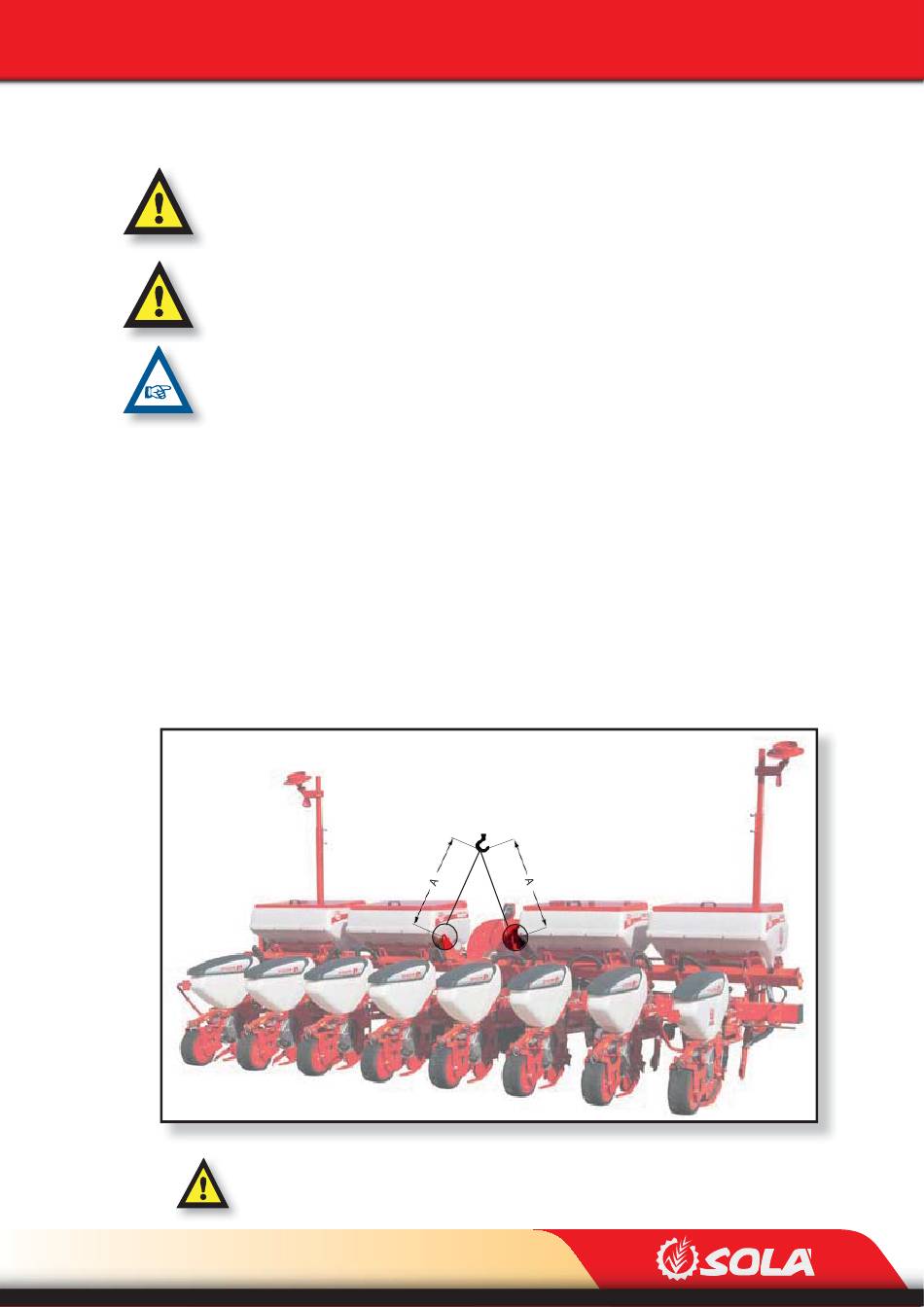

Fig. 2.1
