7.2 VARIANT MANUAL FIXED FRAME

To set planters with ALLOWED FRAME WIDTH for
transit:
1- Fold the track markers. Once they are folded,
their position needs to be locked by following
next steps. Depending on the type of track
marker (A or B) do as required:
2- Raise the planter.

7.3 TELESCOPIC, VARIANT AND VARIANT IDRA FRAME

To set planters equipped with TELESCOPIC, VARIANT OR VARIANT IDRA FRAME NOT WIDER
THAN 3 METRES for transit:
2- Raise the planter.

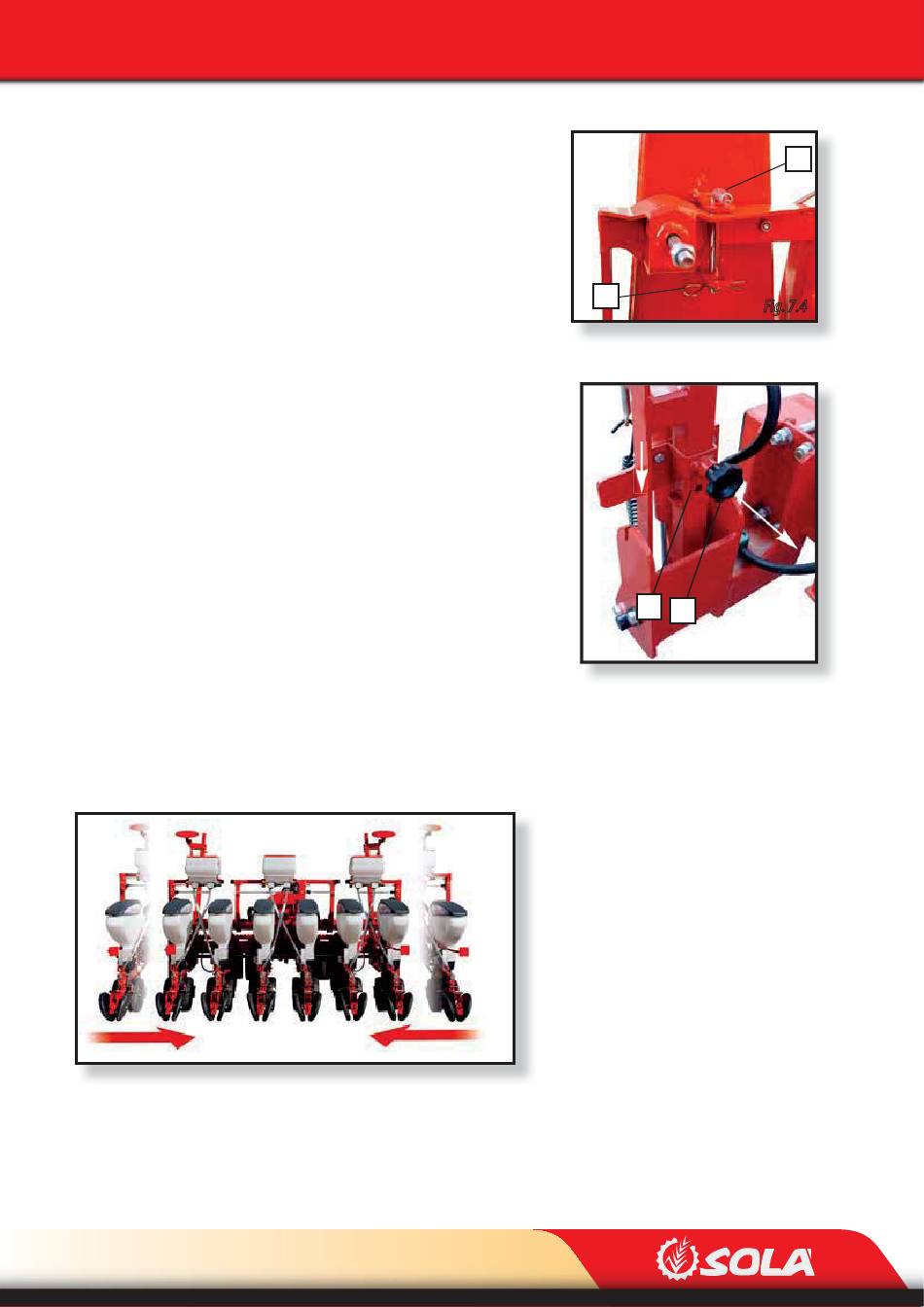

3- Fold the telescopic folding parts (Fig. 7.6).
A. Place the securing handle (2, Fig. 7.4)
and, next, place the pin (1, Fig. 7.4).
B. Pull the knob (3, Fig. 7.5) and shift the
fixing piece downwards until it fits
into the transit position (4, Fig. 7.5).
Fig. 7.6
1
4
3
1- Fold the track markers. Once they are
folded, their position needs to be locked
by following the next steps. Depending
on the type of track marker (A or B) do as
required:
A. Place the securing handle (2, Fig.
7.4) and, next, place the pin (1, Fig.
7.4).
B. Pull the knob (3, Fig. 7.5) and shift
the fixing piece downwards until it
fits into the transit position (4, Fig.
7.5).
109
TRANSPORT
2
Fig. 7.4
Fig. 7.5
