Snom M700 Manual

• Safety: IEC 60950
• Connector: RJ45 (8P8C)
• Power over Ethernet (PoE): IEEE 802.3af, Class 2
Setting up
1. Connect the Ethernet cable's RJ45 plug (Ethernet cable not included in delivery) to the RJ45 socket
on the back of the base and clip the cable into the cable guide.
2. To look up the IP address of the base, press the
handset (handsets not included in delivery) and type *47*.
3. Open the browser of a PC in the same network as the base station, and type the IP address into the
address bar to open the base's web user interface. Default user name and password: admin.
For information on setting up the base and the extensions, please refer to the user's manual listed on the
M series product page at www.snom.com.
Snom Technology GmbH Snom, Inc.
Wittestr. 30 G 2603 Camino Ramon, Suite 420
13509 Berlin, Deutschland San Ramon, CA 94583, USA
Tel. +49 30 39 83 3-0 Tel. 1 339 227 6160
Fax +49 30 39 83 31 11 Fax 1 339 227 6180
office.de@snom.com office.us@snom.com
Snom Technology GmbH Snom Technology GmbH
The Courtyard 6 Parc des fontenelles
High Street 78870 Bailly, France
Ascot, Berkshire SL5 7HP, UK Tel. +33 1 80 87 62 87
Tel. +44 169 348 7500 Fax +33 1 80 87 62 88
Fax +44 169 348 7509 office.fr@snom.com
office.uk@snom.com
© 2017 Snom Technology GmbH
All Rights Reserved.
key on an M65/M85 handset, on the M25
Snom Technology GmbH
Via Milano 1
20020 Lainate, Italia
Tel +39 02 00611212
Fax +39 02 93661864
office.it@snom.com
Snom Technology Ltd.
Rm. 828, 5F, No.285, Sec. 4
Zhongxiao E. Rd., Da'an Dist.
Taipei City 10692, Taiwan
Tel +886-2-8751-1120
Fax +886-2-8751-1130
office.tw@snom.com
4

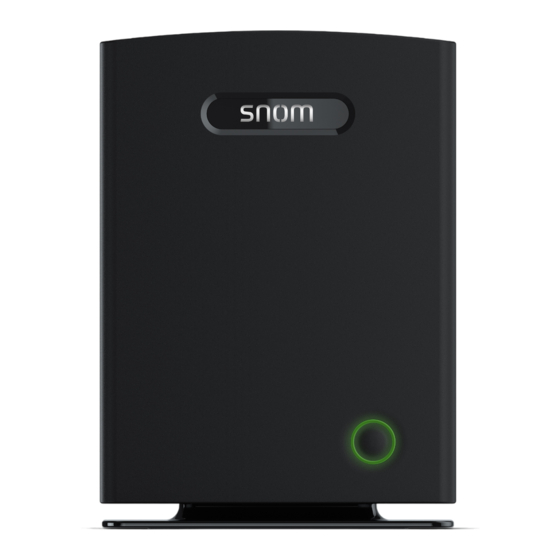

M700 Base Station
Delivery content - Lieferumfang - Contenu de la boîte -
Contenuto della confezione - En la caja
Important Information
Intended Use
This product is designed for use with a Snom M-series handset. Any other use is considered unintended
use. Any modification or reconstruction not described in the user manual is considered unintended use.
Safety precautions
Please read these precautions and the instructions on how to set up and use the device thoroughly befo-
re using it. Save this info sheet and do not give the device to third parties without it. Please also note the
information on the proper disposal of the device.
• Avoid placing the device's Ethernet cable where people may trip over it. Avoid placing the cable
where it may be exposed to mechanical pressure as this may damage it. If the cable is damaged,
disconnect the device and contact qualified service personnel.
• The product is for indoor installation only. Not for outdoor installation!
• The operational temperature for the product is between -10°C and + 50°C (14°F and 122°F).
• Do not install product in rooms with high humidity (for example, in bathrooms, laundry rooms, damp
basements). Do not immerse product in water and do not spill or pour liquids of any kind onto or into
any parts of it.
• Do not install product in surroundings at risk for explosions and do not use the product in such
surroundings (paint shops, for example). Do not use the product if you smell gas or other
potentially explosive fumes!
• Install the product at a minimum distance of 100 cm (39") to persons and animals.
• Medical devices might be adversely affected. Please consider the technical ramifications when instal-
ling the device in a doctor's office, for example.
• FOR THE USA: Do not use near medical equipment or if you have a pacemaker.
ENGLISH
1
