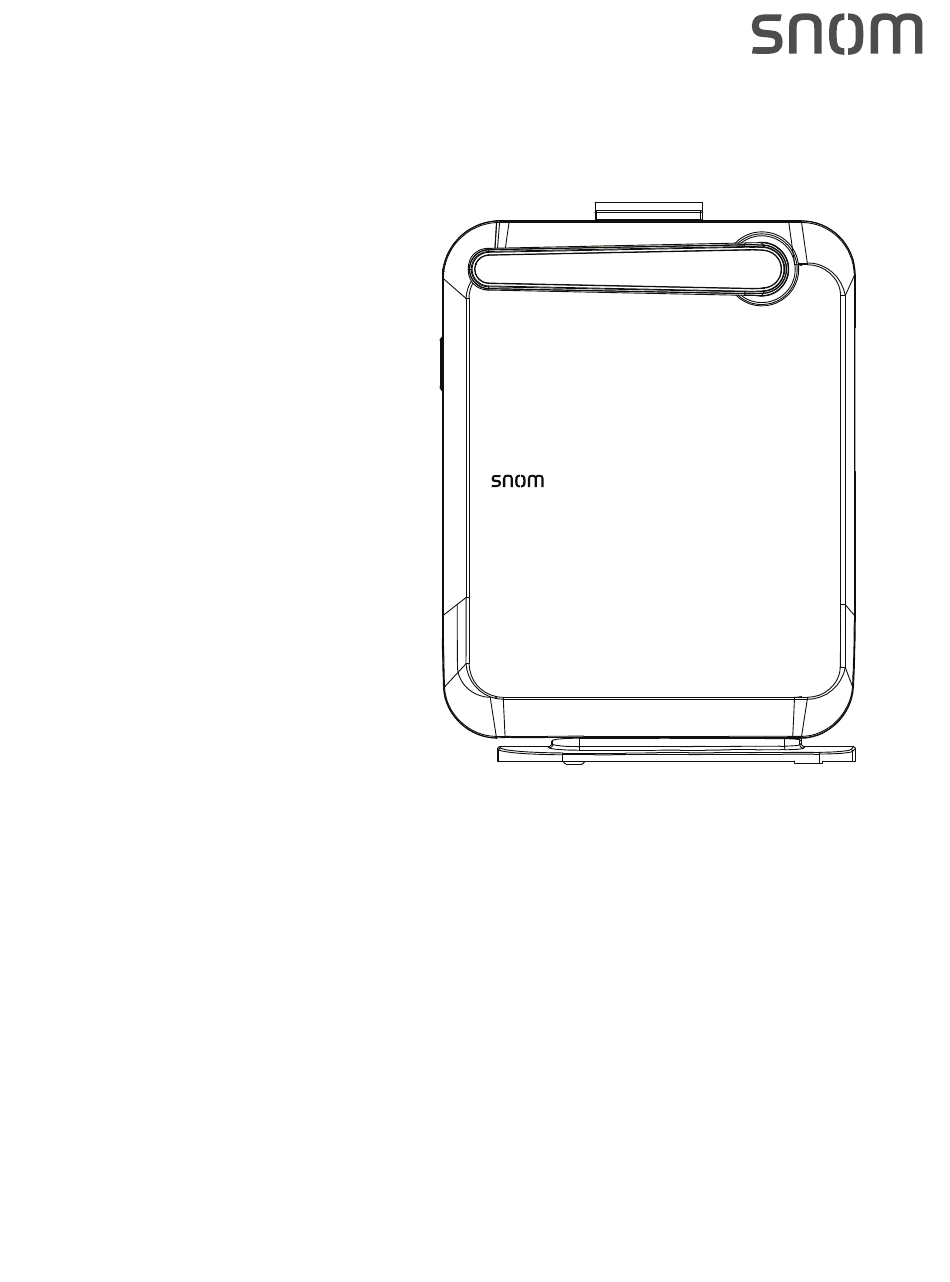

- Page 1 M100 KLE SIP DECT 4-Line Base Sta� on Silkscreen artwork | M100 Base Quick Installa� on Guide...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. - Page 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the base station or handset other than specified access doors may expose you to dangerous voltages or other risks.
-
Page 4: Mesures De Sécurité Importantes
19. Use only the power cord indicated in this manual. 20. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 21. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. - Page 5 14. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de Snom dans les cas suivants: A. Lorsque le cordon d’alimentation est endommagé ou écorché.
- Page 6 15. Évitez d’utiliser un téléphone (autre qu’un sans fil) pendant un orage. Les éclairs peuvent être à l’origine d’une électrocution. 16. N’utilisez pas le téléphone pour rapporter une fuite de gaz à proximité de celle-ci. Sous certaines circonstances, une inteincelle pourrait survenir lorsque l’adaptateur est branché...
- Page 7 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 8: About This Guide
This quick installation guide provides a reference for the external features of the base station and basic installation instructions. Please refer to the M100 KLE SIP DECT 4-Line Base Station Administrator and Provisioning Manual for complete configuration instructions. For customer service or product information, visit our website at www.snomamericas.com... - Page 9 Quick Reference Guide Base station external features Handset Locator (Page) button Press to ring the cordless Antenna accessories Press and hold to register AC adapter input cordless accessories. Reset button LED (Power) Press for when joining the Flashes 15 seconds to network or when registering/ restore factory deregistering a cordless...
-
Page 10: Base Station Installation
IP PBX phone service has been ordered and configured for your location. For more information about IP PBX configuration, see the M100 KLE SIP DECT 4-Line Base Station Administrator and Provisioning Manual You can power the base station using the supplied power adapter or using Power over Ethernet (PoE) from your network. - Page 11 To install the base station: 1. Plug one end of the Ethernet cable into the Ethernet port on the rear of the base station (marked by ), and plug the other end of the cable into your network router or switch. 2.
- Page 12 3. Attach the mounting plate to the top of the base station. Insert the tab into the slot and then push the plate in at the bottom of the base station until the mounting plate clicks into place. Insert tab into slot. 4.
-
Page 13: Maintenance
Maintenance Taking care of your product • Your base station contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Save the original packing materials to protect your product if you ever need to ship it. -
Page 14: Technical Specifications
Technical Specifications RF frequency band 1921.536–1928.448 MHz Channels Operating temperature 32–104 °F (0–40 °C) Power requirements 5.0Vdc @ 800mA Power over Ethernet IEEE 802.3at supported, class 2 Ethernet network port 10/100 Mbps RJ-45 port... - Page 16 VTECH COMMUNICATIONS, INC. Tigard, Oregon 97223, USA. Copyright © 2019 Snom Technology GmbH. All Rights Reserved. v2019002 Version 2, 06/19...
