peerless-AV PLP-V2X2 Installation And Assembly

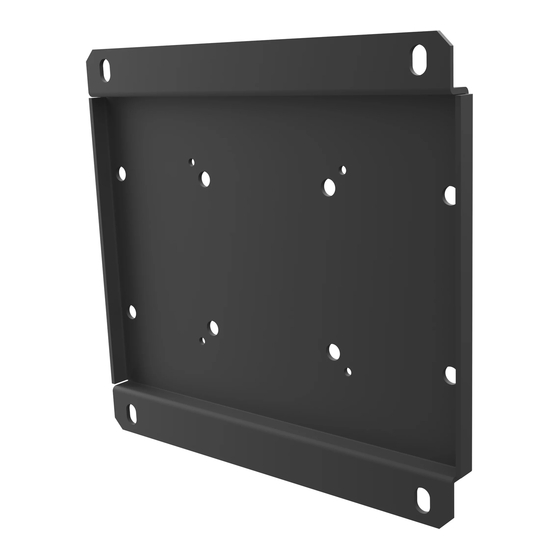

Installation and Assembly - Adapter Bracket for VESA

IMPORTANT! Read entire instruction sheet before you start
installation and assembly.
Maximum Load Capacity : 125 lbs (57 kg)

Parts List

Description
A adapter bracket
B M6 x 12mm socket pin screw
C 4mm allen wrench
D M6 x 20mm socket pin screw
E M8 x 10mm socket pin screw
F M4 x 8mm serrated washer head screw
G #10 SAE washer
H
M4 x 12mm serrated washer head screw
I M5 x 10mm socket pin screw
G
Some parts may appear slightly different than illustrated.
• Do not overtighten! Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb
(30-40 kg • cm).

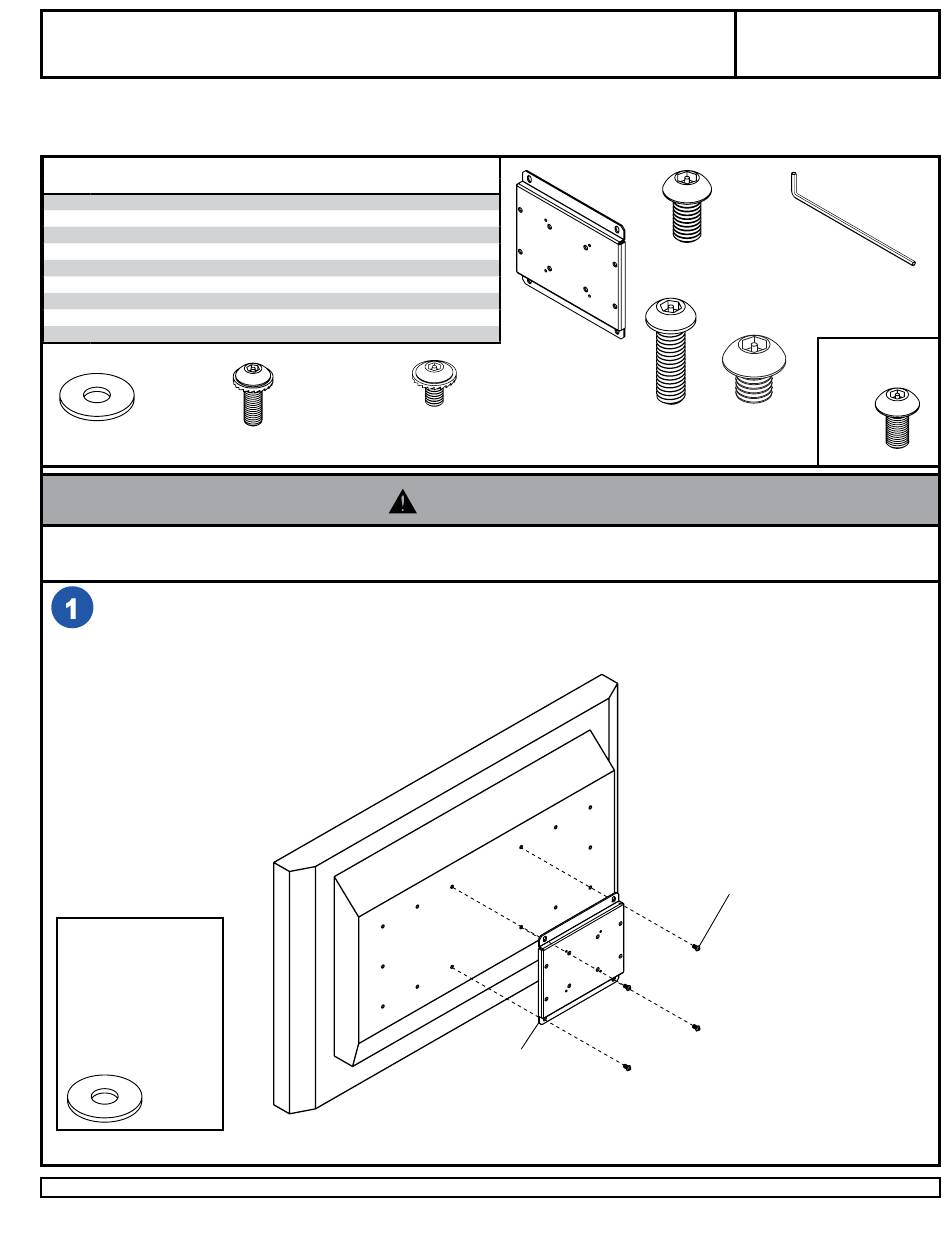

Begin with shortest length screw (E or F), hand thread through adapter plate into screen as shown below.
Screw must make at least three full turns into screen insert and fit snug into place. Do not over tighten. If
screw cannot make three full turns into screen insert, select a longer length screw (B, D or H). Repeat for
remaining holes.
#10 washer (G) is only to be
used with M4 x 8 mm socket
pin serrated washer head
screw (F), M4 x 12 mm socket
pin serrated washer head
screw (H) or M5 x 10mm
socket pin screw (I).
Washer goes between screw
and adapter plate.
G
Visit the Peerless Web Site at www.peerless-av.com
200 x 200 Screens
Qty Part #
1 202-1063
4 520-1050
1 560-9646
4 520-9554
4 520-1706
4 510-1005
4 540-9400
4 510-1079
4 520-1063
H
F

WARNING

A
A
1 of 2
ISSUED: 11-26-2007 SHEET #: 202-9259-4
®
Model: PLP-V2X2
C
B
Used with specific
mounts only
D
E
B, D, E, F,
or H
For customer service call 1-800-865-2112
I
05-04-2017
