Installation and Assembly:

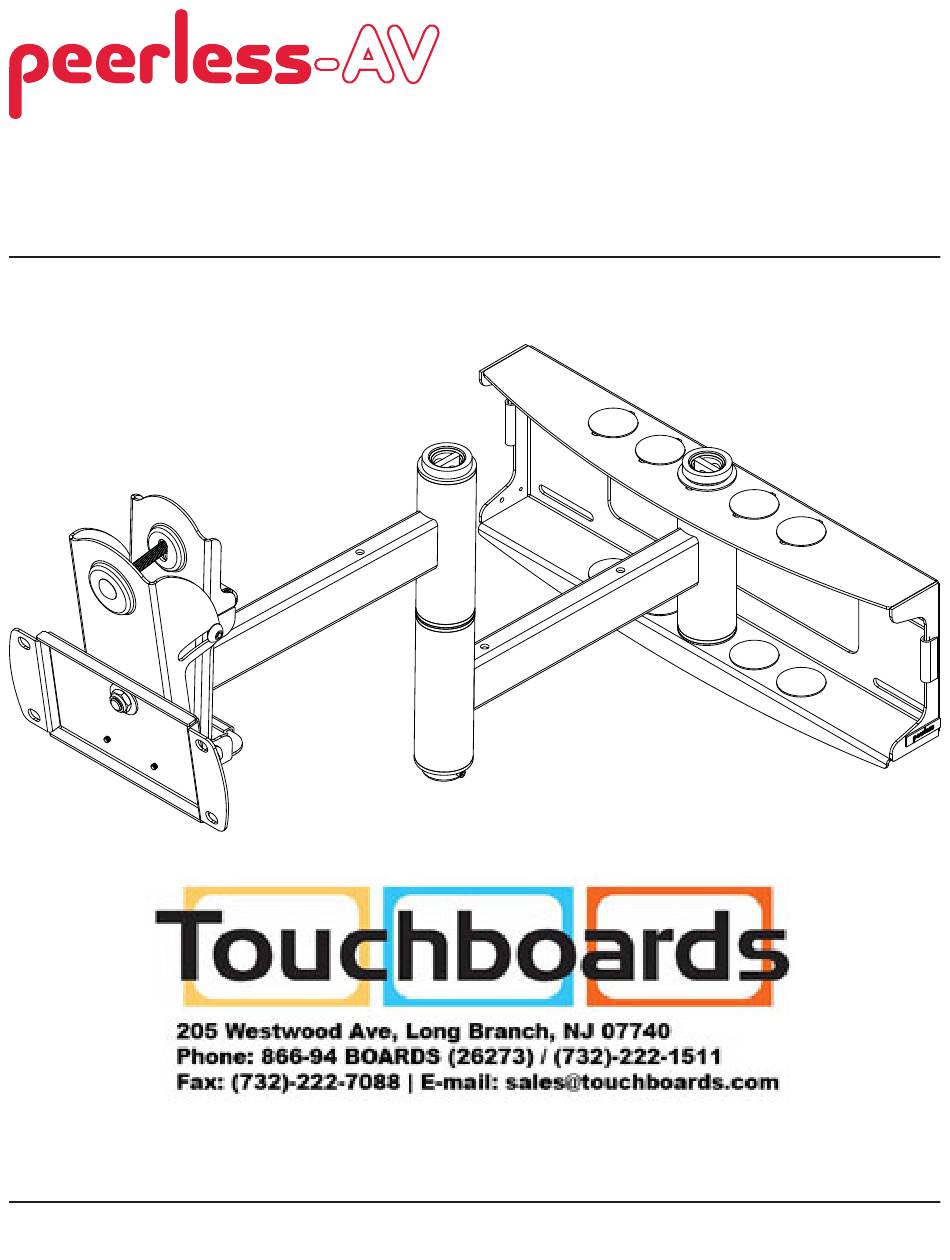

Universal Articulating Swivel Arm for 32" - 50" Flat Panel
Displays
Models:
PLA50, PLA50-S
Maximum Load Capacity: 150 lb (68 kg)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 05-03-06
SHEET #: 202-9127-5 06-29-11
Advertisement
Table of Contents
Related Manuals for peerless-AV PLA50
Summary of Contents for peerless-AV PLA50
- Page 1 Universal Articulating Swivel Arm for 32" - 50" Flat Panel Displays Models: PLA50, PLA50-S Maximum Load Capacity: 150 lb (68 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com ISSUED: 05-03-06...
-
Page 2: Tools Needed For Assembly
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Before you start make sure all parts listed are included with your product. Parts List PLA50 PLA50-S Description Qty Part # Part # A wall plate 201-1095 201-4095 B tilt B tilt-roll assembly 201 1093 201-1093 201 4093 201-4093 C arm assembly... -
Page 4: Installation To Wood Stud Wall
Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. - Page 5 Installation to Concrete Wall WARNING • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard- ware and components.
- Page 6 WARNING • If you are uncertain that product is properly installed, call customer care. Note: There are fi ve mounting positions. The center position is shown (right). Slide washer (J) over wall support arm axle (D). Next, insert plastic cap (N) into axle. Then, insert holding pin (M) into axle.
- Page 7 Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on arm assembly (C). Insert one fi nishing cap (L) into each unused hole of wall plate (A). SWIVEL BOX Note: Refer to adapter bracket instruction sheet for attachment of adapter bracket to plasma before proceeding with step 5.
- Page 8 WARNING • Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV. Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed thread. SWIVEL BOX .25" Hook tilt-roll assembly (B) onto M10 screws (F).
- Page 9 Depending on the specifi c size & weight of the plasma, articulating swing arm may be angled at different positions, causing plasma to appear to lean sideways at different articulating positions. Tilt-roll assembly (B) allows plasma to be manually adjusted, so plasma can be horizontal at all positions. To adjust, gently rotate plasma by hand to desired position.
-
Page 10: Limited Five-Year Warranty
LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
