2.7

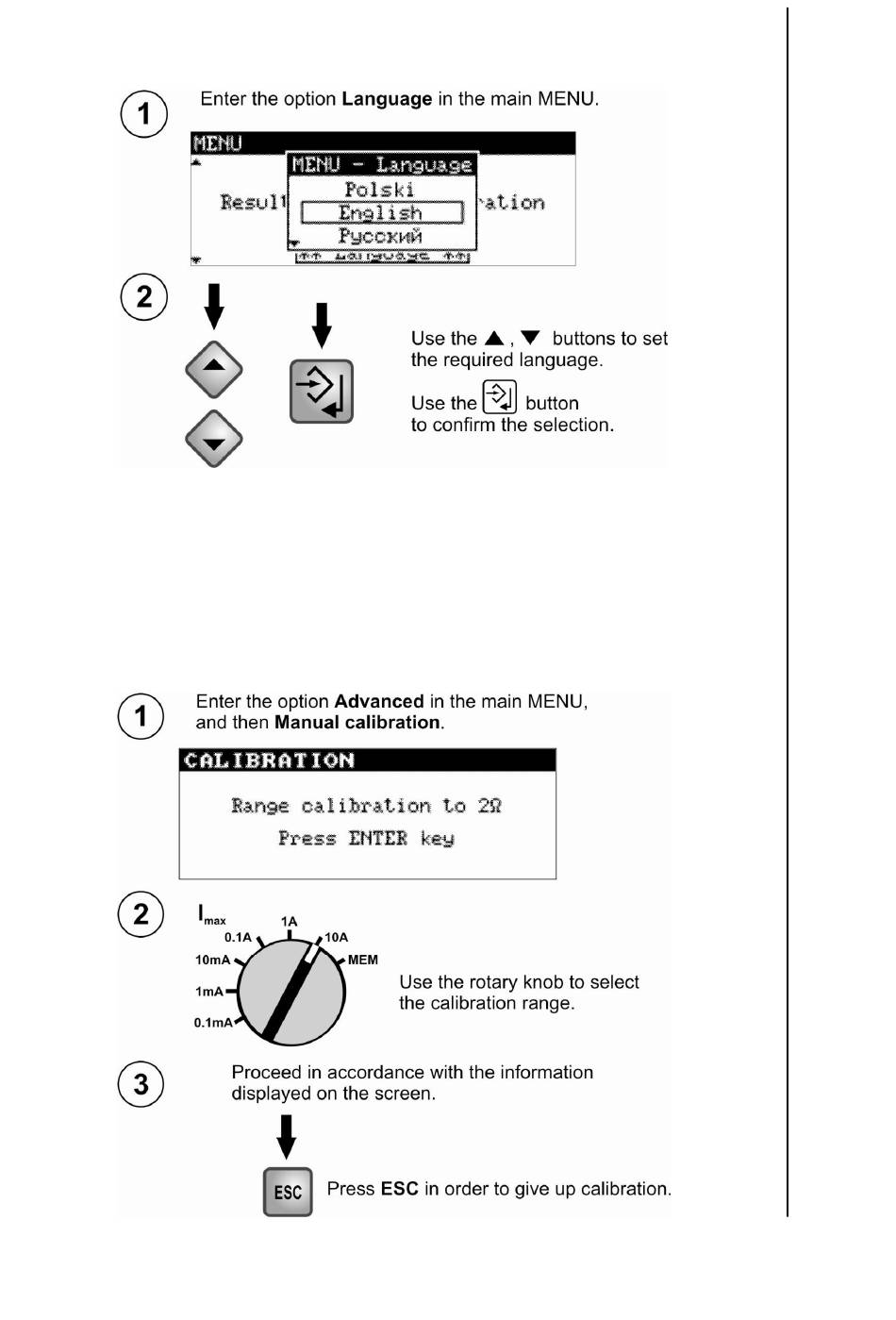

Selection of the language
2.8
Advanced functions
2.8.1 Manual calibration
The user may perform manual calibration of the meter, provided they have standard
resistors, minimum grade 0.05%, of the following nominal values: 0,2mΩ, 2mΩ, 20mΩ,
200mΩ, 2Ω, 20Ω, 200Ω and 2kΩ. Calibration is performed separately for each range.
OPERATING MANUAL MMR-620 Revision 1.6
Menu
Selection
of the
language
Advanced
functions
Manual
calibration
11
