Summary of Contents for Sonel MMR-630

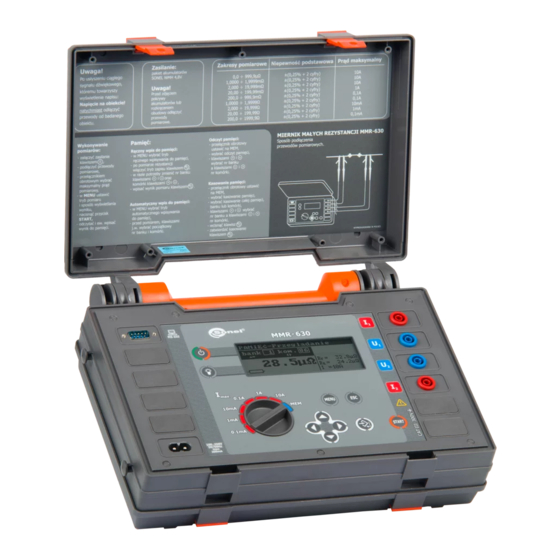

  • Page 4 LOW-RESISTANCE METER MMR-630 OPERATING MANUAL SONEL S. A. ul. Wokulskiego 11 58-100 Świdnica Revision 1.6 February 14, 2017...
  • Page 5 We appreciate your having purchased our low-resistance meter. The MMR-630 meter is a modern, high-quality measuring device, which is easy and safe to use. Please acquaint yourself with the pre- sent manual in order to avoid measuring errors and prevent possible problems related to operation of the meter.

  • Page 6: Table Of Contents

    EMORY ERASING POWER SUPPLY ....................26 ............. 26 ONITORING OF THE POWER SUPPLY VOLTAGE ..............26 EPLACEMENT OF ACCUMULATORS ................27 HARGING OF ACCUMULATORS ......29 ENERAL PRINCIPLES REGARDING USING ACCUMULATORS CLEANING AND MAINTENANCE ..............31 OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 7 STORAGE ......................31 DISMANTLING AND UTILIZATION ..............31 ATTACHMENTS ....................32 ....................32 ECHNICAL DATA ..................33 TANDARD ACCESSORIES ................... 33 DDITIONAL ACCESSORIES ....................34 ANUFACTURER OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 8: Safety

    In case of measurements of installations, sub-assemblies and devices under a dangerous volt- age, the MMR-630 meters may solely be operated by qualified personnel who are properly author- ised to work on electric installations. Operation of the meter realised by unauthorised personnel may result in damage to the device and constitute a source of danger for the user.

  • Page 9: Menu

    Menu The menu is available at any position of the knob but MEM. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 10: Lcd Contrast

    If the required accessories such have not been purchased along with the meter, then they are available from the manufacturer or an authorised distributor. The accessories may be used in case of many devices manufactured by SONEL S.A. which are equipped with the RS-232 interface.

  • Page 11: Result Display Configuration

    ESC button. The limits of the acceptable range of the measurement results is set in MENU: OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 12 OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 13: Default Settings

    – bidirectional,  trigering mode – normal,  memory entry – manual,  limits in the window mode: upper limit – 1999,9Ω, lower limit – 0 Ω,  window mode off, result display – all results. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 14: Selection Of The Language

    The user may perform manual calibration of the meter, provided they have standard resistors, minimum grade 0.05%, of the following nominal values: 0,2m, 2m, 20m, 200m, 2, 20, 200 and 2k. Calibration is performed separately for each range. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 15: Auto-Calibration

    It is possible to upgrade the control programme without having the meter serviced. Should up- grading be necessary, the following actions will be realised:  Download the meter programming software from the manufacturer’s web site (www.sonel.pl),  Connect the meter to a computer, ...

  • Page 16: Information On The Manufacturer And The Programme

    In order to obtain basic information on the manufacturer of the meter and the version of the pro- gramme, perform the following actions:  in MENU select About producer & programme,  press the button OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 17: Measurements

    This is done by selection of the appropriate options in MENU – Measurement mode. 3.1.1 Selection of the type of object The MMR-630 meter permits selection of one of the three types of objects: The measurement marked with the symbol is the shortest measurement (3s) and its purpose is to test objects of purely resistance-related character.

  • Page 18: Flow Of Current

    If the single-direction flow of current is selected the resistance value R is not displayed. 3.1.3 Measurement triggering The MMR-630 meter has three modes of measurement triggering: normal, automatic and contin- uous.  In the normal mode one measurement of resistance is performed.

  • Page 19: Saving To Memory

    3.1.5 Measurement range selection For the purpose of measurement of the resistance of the object the MMR-630 meter applies measurement currents within the range between 0.1mA and10A. The measurement range and thus the measurement current may be selected automatically or manually.

  • Page 20: Connection Of The Meter And Start Of Measurements

    Press button to go to the measurement mode. Connection of the meter and start of measurements NOTE! Connection of a voltage exceeding 440VAC between any two measurement termi- nals may cause damage to the meter. OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 21 The appearance of the screen may differ depending on the configuration of MENU – Measure- ment mode. OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 22 During the measurement a moving horizontal line is displayed. The measurement may be inter- rupted pressing button ESC. Depending on the measured object, the measurement may last between 3s ( ) to a couple of minutes ( OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 23 Accumulators are low, they must be charged. Accumulators completely discharged, the measurement is blocked. Symbols of a resistance-type object. Symbols of an inductive object (normal measurement time for this type). Symbols of (reduced measurement time). Swapped measurement leads. OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 24 A message and two long sound signals  after the START in I circuit! button is pushed. Unstable conditions due to incorrect contact of the measurement Unstable conditions! leads or excessive inductivity of the object, which preclude measurements. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 25: Memory Of The Measurement Results

    Memory of the measurement results MMR-630 meters are equipped with a memory of 990 resistance measurement results. The loca- tion within the memory where a single result is saved is called a memory cell. The whole memory is divided into 10 banks comprising 99 cells. Each result may be saved in a cell of a selected number...

  • Page 26: Automatic Saving Of Measurement Results In The Memory

    - In the automatic mode of measurement release after a modification of the number of the bank or cell, exit the setting mode using the button or ESC, or start the first measurement using the but- ton START. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 27: Memory Browsing

    Memory browsing Memory erasing OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 28 OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 29: Power Supply

    Replacement of accumulators The MMR-630 meter is equipped with a package of NiMH accumulators and a charger. Those ac- cumulators have a series of advantages, such as lack of harmful substances, no memory effect, higher capacity as compared to NiCd accumulators at the same size.

  • Page 30: Charging Of Accumulators

    When the charger power supply cable is plugged into a socket one of the following screens is dis- played. If the charge of the accumulators does not exceed 50%, then the a) screen is displayed. If the charge of the accumulators exceeds 50%, then the b) screen is displayed. OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 31 „quick charge” – this process permits to reduce the duration of charging to approximately two and a half hours. The end of the process of charging is signalled by: Charging completed. In order to turn the device off, remove the power supply plug of the charger. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 32: General Principles Regarding Using Ni-Mh Accumulators

    (2-3 charge and discharge cycles). The most important factor which influences the lifetime of an accumulator is the depth of discharge. The deeper the discharge of the accumulator, the shorter its lifetime. OPERATING MANUAL MMR-630 Revision 1.6...
  • Page 33 - Do not charge or use accumulators in extreme temperatures. Extreme temperatures reduce the life- time of batteries and accumulators. Avoid placing devices powered from accumulators in very hot en- vironments. The nominal working temperature must be absolutely observed. OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 34: Cleaning And Maintenance

    Worn-out electronic equipment should be sent to a collection point in accordance with the law of worn-out electric and electronic equipment. Before the equipment is sent to a collection point, do not dismantle any elements. Observe the local regulations concerning disposal of packages, worn-out batteries and accumula- tors OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 35: Attachments

    Protection grade of the casing in accordance with EN 60529 ........... IP54 d) Protection from external voltage ..............up to 440Vac for 10s e) Power supply of the meter ......package of ACCUMULATORS SONEL/NiMH 4,8V 3Ah Power supply of the charger ..............100..250V/50..60Hz, 200mA g) Charging time ....................

  • Page 36: Standard Accessories

    Calibration certificate – LSWPLMMR600. Additional accessories Furthermore, the manufacturer and authorised distributors offer the following elements which are not included in the basic accessories package: WAZACKEL1 WAADAUSBRS232   Kelvin clamp with a double cable USB/RS232 adapter OPERATING MANUAL MMR-630 Revision 1.6...

  • Page 37: Manufacturer

    WAPROSONPE4 WAPROSCHEM   Software SONEL Electric Measurements – for SONEL Schematic software to create drafts, and electric installations diagrams the purpose of development of complete doc- umentation of measurements WAPROKALK  SONEL PE Kalkulacje software to create measurement calculations...
  • Page 38 OPERATING MANUAL MMR-630 Revision 1.6...
