Clas Ohlson SDR-120W Quick Start Manual

AC/DC Adaptor for Laptop
Article number 38-1383, 38-1979 • Model SDR-120W
Important!
Carefully read through the following instructions before you start using this AC/DC
adaptor with your laptop.

Choosing voltage

The AC/DC adaptor has 7 different settings for output voltage (15V / 16V / 18V / 19V / 20V
/ 22V / 24V DC). Set it to the right voltage before connecting it to your laptop. Check what is sug-
gested on the rating plate and the voltage indicated next to the input socket. You can find infor-
mation on the necessary voltage on your previous AC/DC adaptor or in the user manual for your
laptops. Remember, your laptop cannot operate on an incorrect voltage setting, and it may be
damaged. If you are unsure: never attempt to connect the AC/DC adaptor to your laptop. Con-
tact our customer service.

Adaptor, different sizes

• The eliminator comes with 5 interchangeable battery plugs, in different sizes:
• Choose the right size battery plug for your laptop.

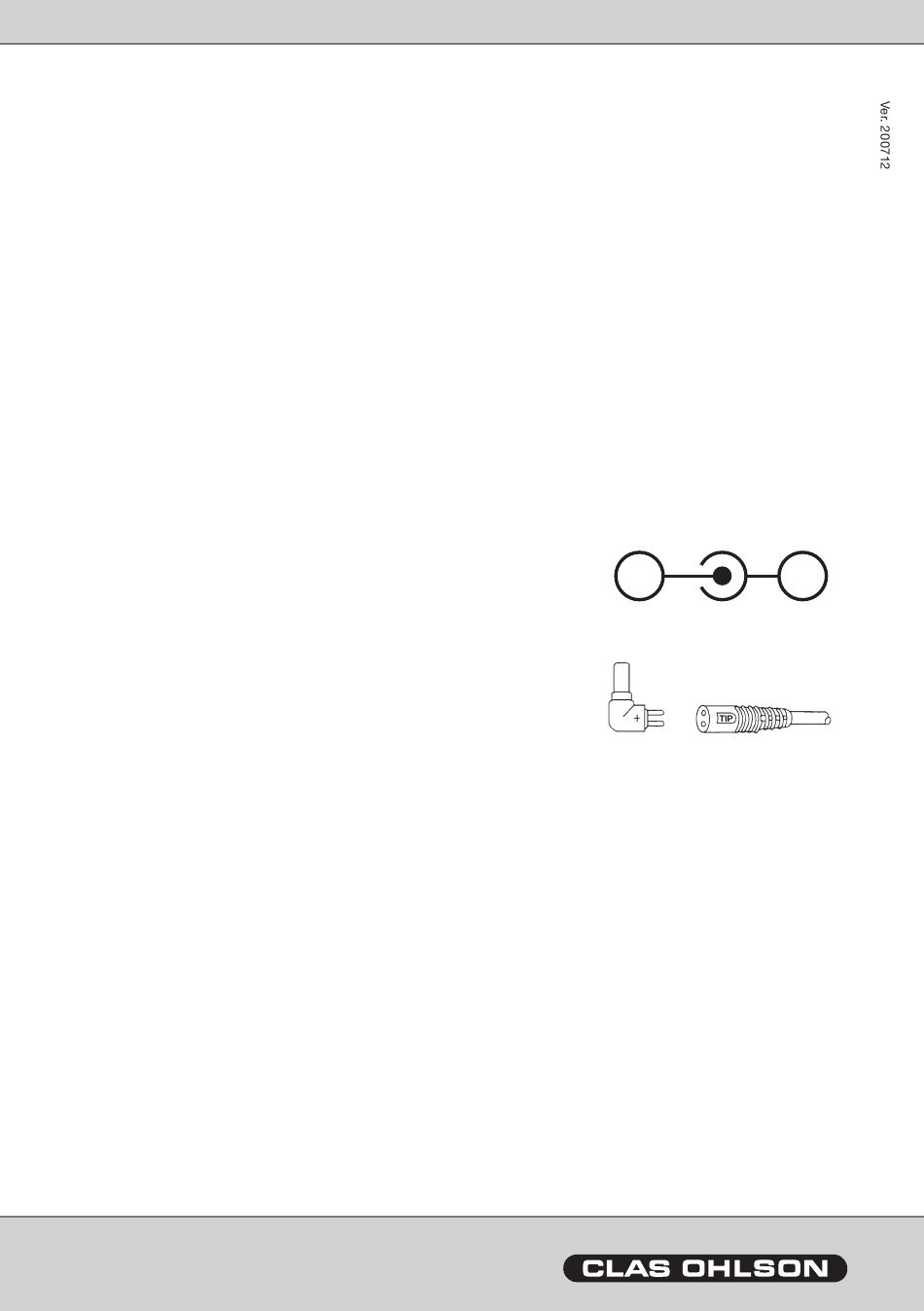

Positive or negative polarity

There are two polarities on direct voltage, positive and nega-
tive. The AC/DC adaptor is only intended for appliances with a
positive (+) tip polarity. The exchangeable adaptors are impos-
sible to mix up, and can only be connected in one way, for po-
sitive (+) tip polarity! Make sure that the adaptor and the cable
end are closely pressed together.

Specification

Output voltage (stabilized):
Max load:
Comes with 1.7 m cable and interchangeable plugs.

Warning!

• The wrong voltage or polarity may harm your laptop.
• Only connect the AC/DC adaptor to appliances with a current consumption not
excee ding 120W.
• Do not disassemble the AC/DC adaptor.
• Turn off your laptop before connecting/removing the battery plug.
• The AC/DC adaptor is only intended for appliances with a positive (+) tip polarity.
• Do not expose the AC/DC adaptor to moisture, for indoor use only!

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose
of this product contact your municipality.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.
co.uk and click on customer service.
ENGLISH
DC 15/16/18/19/20/22/24 VDC
15-20V/6A-22/24V 5A
_
+
Positive centre pol
Battery plug
Cable End
