Clas Ohlson EMW100RW Manual

Wireless Outdoor Receiver
Art. no 36-2348 Model EMW100RW
Please read the entire instruction manual before use and save
it for future reference. We reserve the right for any errors in text
or images and for making any necessary technical changes to
this document. If you should have any questions concerning
technical problems please contact our Customer Services.

Product description

• Wireless receiver unit for outdoor use (IP44).
• Range of up to 70 metres unobstructed.
• A red LED on the receiver comes on when it has been
turned on by the transmitter. The LED goes off when
the receiver is turned off.
• The programmed channel is permanently saved in
the memory.

Features

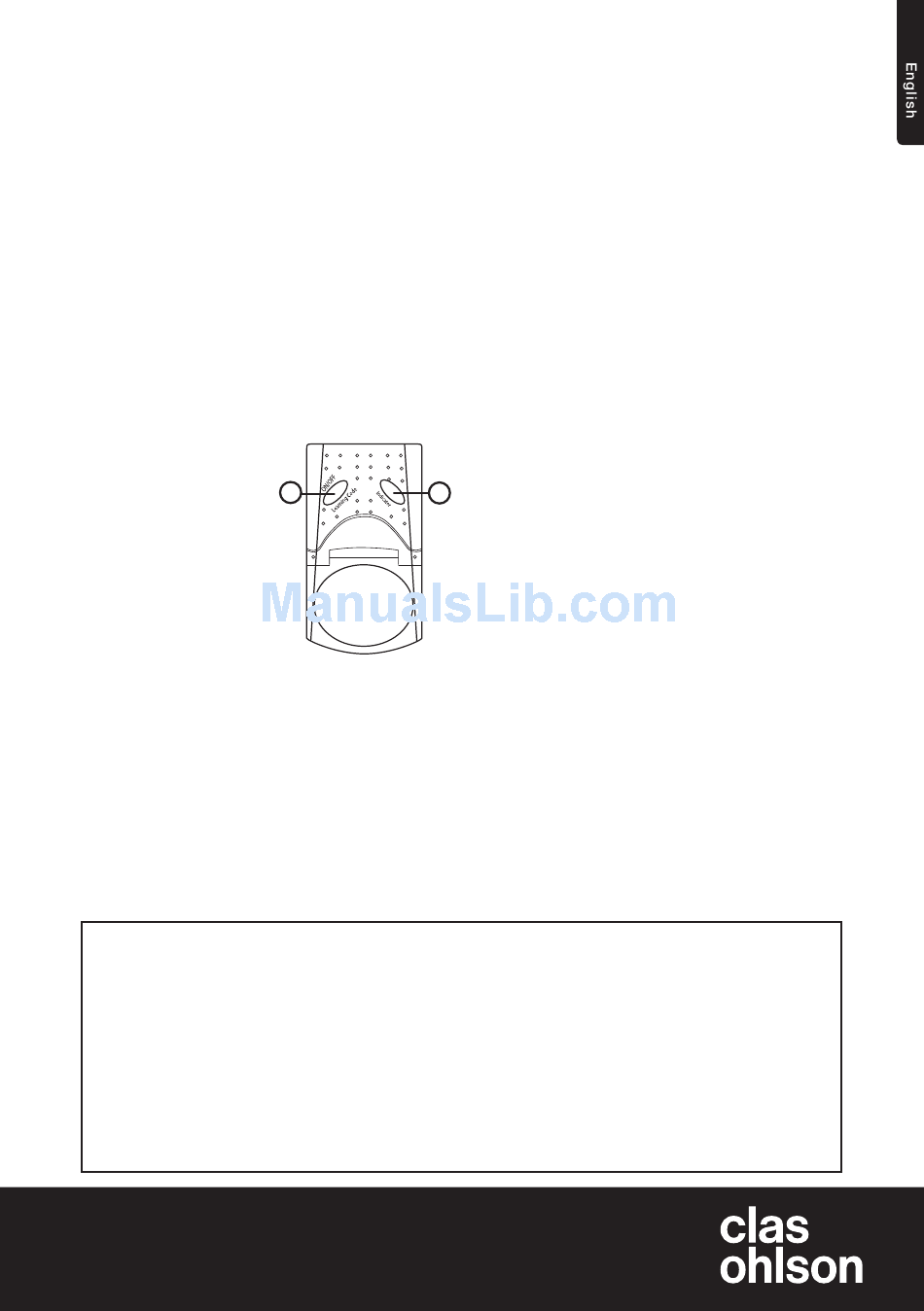

1. [ON/OFF / Learning Code]
Press once to switch be-
tween ON and OFF. Press
and hold in for 5 seconds
to enter the programming
mode (Learning mode).
2. LED
The LED flashes:
The receiver is ready for

programming.

The LED shines steadily:
The receiver is switched ON.
The LED is off: The receiver is switched OFF.
Programming
1. Connect the receiver to a wall socket.
2. Hold in [ON/OFF Learning Code] on the receiver for
5 seconds until the LED starts flashing.
3. Hold in [OFF] on the transmitter for 2 seconds (until
the LED on the receiver goes off) for the channel you
wish to use on the receiver. If [OFF] is released too
early, the programming will not work.
Points worth bearing in mind!
•
Other wireless equipment operating on the same frequency band may reduce the range of the product.
•
The range of all wireless equipment is affected by obstacles between the transmitter and the receiver
(a concrete wall reduces the signal far more than a plasterboard partition, for example).
If you are having problems with the operation of the system,
try the following solutions
• Switch off any other wireless equipment to check whether it could be causing the problem.
• Move the wireless equipment and/or reduce the distance, and reduce the number of obstacles
(walls, furniture, etc.) between the transmitter and the receiver.
GREAT BRITAIN
For consumer contact, please visit www.clasohlson.co.uk
and click on customer service.
1 2
Note! Do not press the buttons on the transmitter too
hard; light pressure (just enough to light up the LED on
the transmitter) is all that is needed. If you press too hard
the programming will not work.

Operation

• Press [ON] or [OFF] for the selected channel (1–4) on
the transmitter to turn on or off the electrical devices
connected to the receiver on that channel.
• Press [ON/OFF Learning Code] on the receiver to
manually turn the connected electric devices on or off.

Connection

4. Set the power switch of the electrical device that is
to be connected to the receiver to OFF.
• Connect the electrical device to the receiver before
it is connected to a power point.
5. Turn the devices on by setting their power switches
to ON I.

Safety

Only connect electrical devices rated for the voltage
specified below.

Disposal

Follow local ordinances when disposing of this product.
If you are unsure how to proceed, contact your local
authority.

Specifications

Voltage 230 V AC, 50 Hz, 16 A
Max power 3680 W (resistive load), 150 W
(inductive load, e.g. fluorescent lamp)
Protection class IP44
Frequency 433.92 MHz
Range Up to 70 metres (unobstructed)
