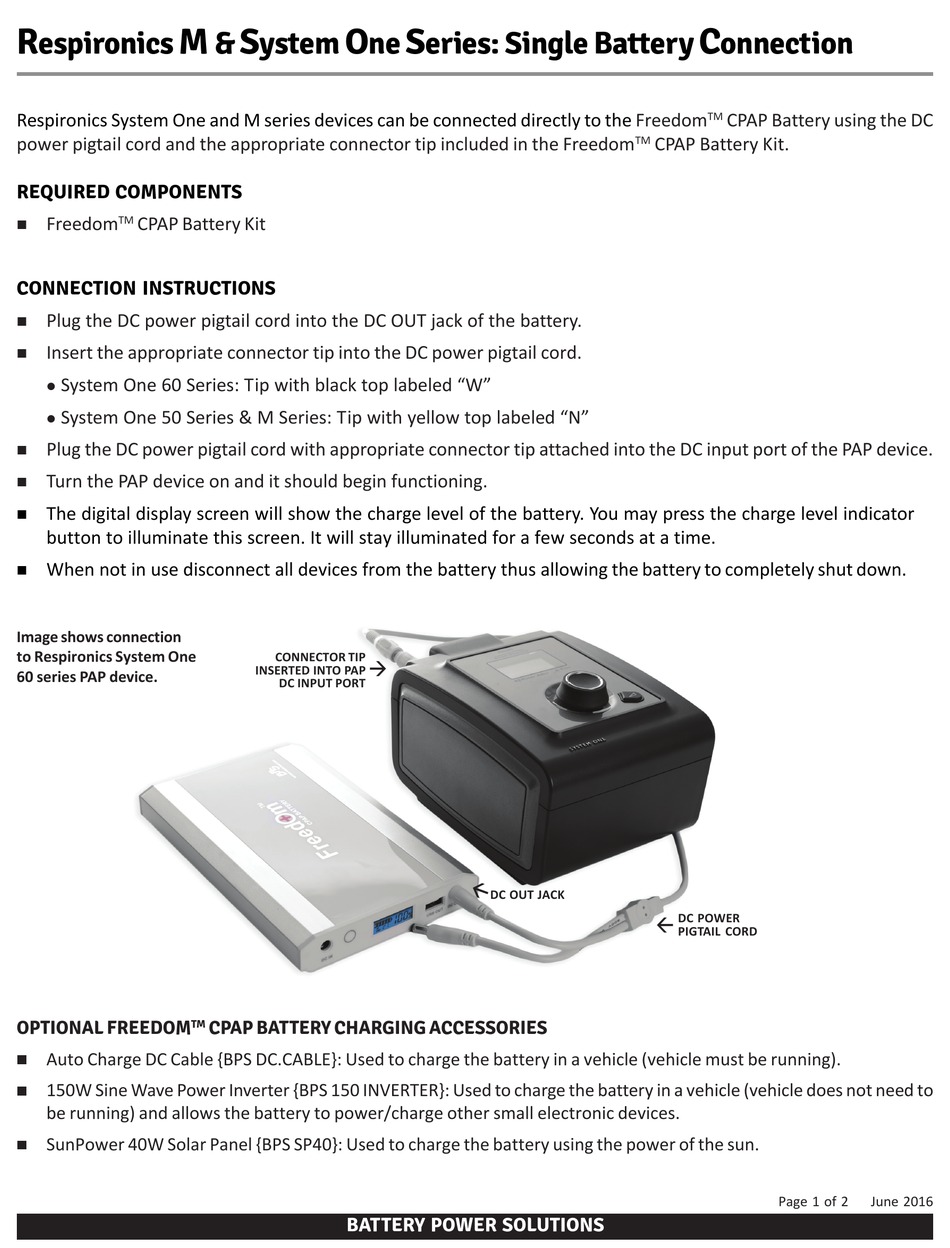

Respironics M Series Manual

R M
espironics
Respironics System One and M series devices can be connected directly to the
power pigtail cord and the appropriate connector tip included in the Freedom

REQUIRED COMPONENTS

TM
Freedom CPAP Battery Kit

CONNECTION INSTRUCTIONS
Plug the DC power pigtail cord into the DC OUT jack of the battery.

Insert the appropriate connector tip into the DC power pigtail cord.

System One 60 Series: Tip with black top labeled "W"

System One 50 Series & M Series: Tip with yellow top labeled "N"

Plug the DC power pigtail cord with appropriate connector tip attached into the DC input port of the PAP device.

Turn the PAP device on and it should begin functioning.

The digital display screen will show the charge level of the battery. You may press the charge level indicator

button to illuminate this screen. It will stay illuminated for a few seconds at a time.
When not in use disconnect all devices from the battery thus allowing the battery to completely shut down.


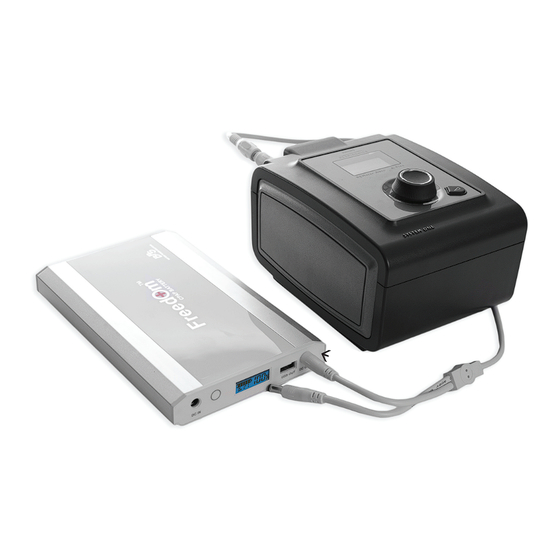

Image shows connection
to Respironics System One
60 series PAP device.
OPTIONAL FREEDOM TM
Auto Charge DC Cable {BPS DC.CABLE}: Used to charge the battery in a vehicle (vehicle must be running).
    
150W Sine Wave Power Inverter {BPS 150 INVERTER}: Used to charge the battery in a vehicle (vehicle does not need to
    
be running) and allows the battery to power/charge other small electronic devices.
SunPower 40W Solar Panel {BPS SP40}: Used to charge the battery using the power of the sun.
    
S O
& ystem ne
CONNECTOR TIP
INSERTED INTO PAP
DC INPUT PORT
CPAP BATTERY CHARGING ACCESSORIES
BATTERY POWER SOLUTIONS
S
eries: Single Battery
DC OUT JACK
C
onnection
Freedom TM CPAP Battery using the DC
TM CPAP Battery Kit.
DC POWER
PIGTAIL CORD
Page 1 of 2 June 2016
