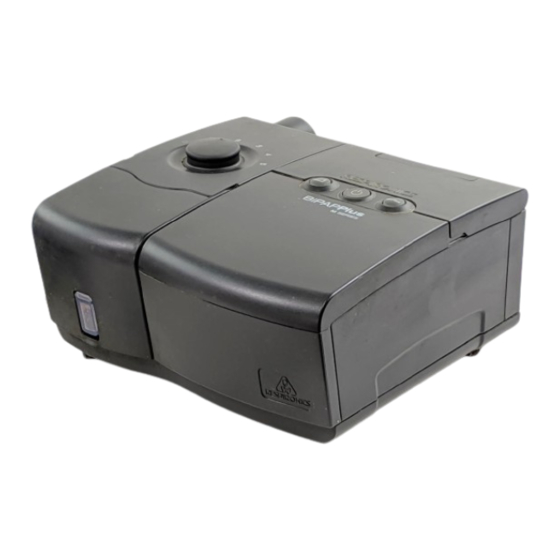

Heated HuMidifieR
M SeRieS
USeR Manual
1031849
HM 1/6/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M SeRieS and is the answer not in the manual?

Questions and answers

Kathy Phillips
March 8, 2025

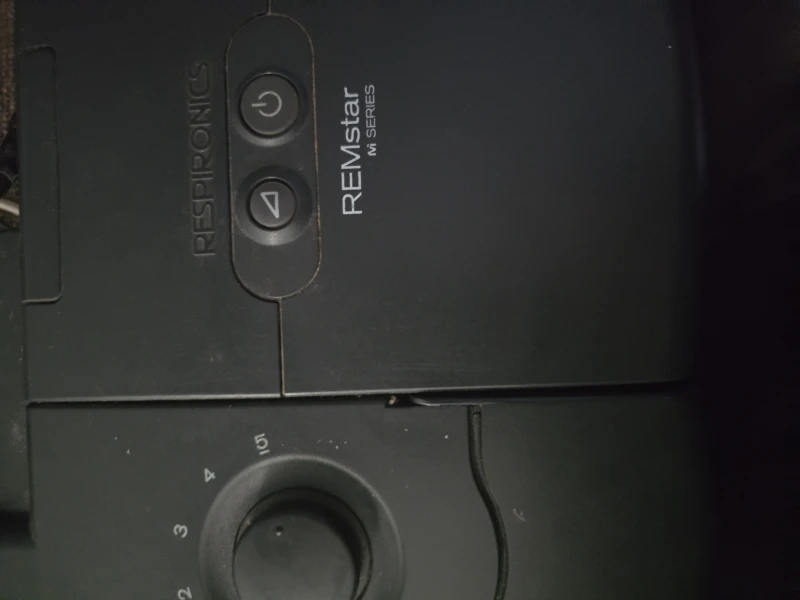

The blue lights are blinking but unit will not turn on

User image 67cca545cf0d2
0
1 comments:
Mr. Anderson
March 8, 2025

The Respironics M Series unit may not be turning on despite the blue lights blinking due to a possible issue with the heated humidifier (HH) tank's heating plate. After three years of use, the heating plate could be faulty. The blinking blue lights might indicate an error state related to the humidifier. Swapping the HH tank with a new one could help determine if the issue is with the heating plate. Additionally, the problem might be related to power supply issues, as some users initially overlooked the humidifier being "DC powered."

This answer is automatically generated

0

Related Manuals for Respironics M SeRieS

Summary of Contents for Respironics M SeRieS

  • Page 1 Heated HuMidifieR M SeRieS USeR Manual 1031849 HM 1/6/06...

  • Page 2: Table Of Contents

    Heater.Plate.and.Humidifier.Base............16 Humidifier.Outlet..................16 Service......................... 16 Traveling.with.the.System................16 Packing.the.System..................16 DC.Power..................... 17 International.Travel.................. 17 Troubleshooting......................19 Specifications........................25 Size........................ 25 Water.Capacity.................... 25 Product.Use,.Transport,.and.Storage............25 Standards.Compliance................25 Electrical....................25 M Series Heated Humidifier...
  • Page 3 Heater.Settings................... 26 Pressure.Drop.with.Humidifier..............26 Humidity.Range..................26 LED.Type...................... 26 WEEE/RoHS.Recycling.Directives............26 EMC.Information......................27 Limited.Warranty......................31 ©.2006.Respironics,.Inc..and.its.affiliates..All.rights.reserved. M Series Heated Humidifier...

  • Page 4: Introduction

    •. Setup Connecting.the.Therapy.Device,.Daily.Use •. Device.Controls Humidifier.Knob,.Blue.LED.Display •. Cleaning.and.Service Water.Tank,.Humidifier.Plate.and.Platform,.Humidifier.Outlet,.Service •. Traveling.with.the.System Packing.the.System,.DC.Power,.International.Travel •. Troubleshooting •. Specifications nTended The.M.Series.Heated.Humidifier.is.an.accessory.for.M.Series.positive.pressure.ventilation.systems. to.provide.moisture.to.the.patient.circuit..It.is.intended.for.use.in.spontaneously.breathing.patients. weighing.over.30.kg,.in.the.home.or.hospital/institutional.environment,.who.use.mask-applied. positive.pressure.ventilation.therapy. arnIngs and auTIons arnIngs A warning indicates the possibility for injury to the user or the operator. •.. Use.the.humidifier.only.for.its.intended.use.as.described.in.this.manual..Use.only.. accessories.recommended.by.Respironics. •.. Never.operate.the.humidifier.if.any.of.the.parts.are.damaged,.if.it.is.not.working.. properly,.or.if.the.humidifier.has.been.dropped.or.mishandled..Do.not.use.the. humidifier.if.the.water.tank.is.leaking.or.damaged.in.any.way..Have.any.damaged.. parts.replaced.before.continuing.use. •.. Allow.the.device.to.cool.down.before.touching.or.removing.the.water.tank. M Series Heated Humidifier...

  • Page 5: Cautions

    When.installing.the.water.tank,.do.not.allow.any.water.to.spill.into.the.humidifier.or.. . therapy.device. •. Pins.of.connectors.identified.with.the.ESD.warning.symbol.( ).should.not.be.. touched..Connection.should.not.be.made.to.these.connectors.unless.ESD.precautionary. procedures.are.used..Precautionary.procedures.include.methods.to.prevent.build-up.of.. . electrostatic.discharge.(e.g.,.air.conditioning,.humidification,.conductive.floor.cover-. ings,.non-synthetic.clothing),.discharging.one’s.body.to.the.frame.of.the.equipment.. or.system.or.to.earth.or.a.large.metal.object,.and.bonding.oneself.by.means.of.a.wrist.. . strap.to.the.equipment.or.system.or.to.earth. auTIons A caution indicates the possibility of damage to the device. •. If.fluids.are.spilled.onto.the.humidifier.base,.unplug.the.power.cord.from.the.AC.. wall.outlet.and.allow.the.humidifier.platform.to.drain.and.dry.before.using. •. Take.precautions.to.protect.furniture.from.water.damage. •. Do.not.fill.above.line. •. Remove.tank,.empty.all.water,.and.replace.empty.tank.before.transporting.the.. humidifier.base. NOTE: Additional warnings, cautions, and notes are located throughout this manual. M Series Heated Humidifier...

  • Page 6: Symbol.key

    Restriction of the Use of Certain Hazardous Substances in Electri- cal and Electronic Equipment (WEEE/RoHS) Recycling Directives Type BF Applied Part Class II (Double Insulated) Drip Proof Equipment IPX1 European CE Marking 0123 Canadian/US Certification Notified Body Approval for Standards Compliance M Series Heated Humidifier...

  • Page 7: System.overview

    Use this to lock and unlock the humidifier tank halves. Humidifier Setting Knob Use this to reach the desired setting. NOTE: Read all instructions before using the humidifier. NOTE: This humidifier is specified for use with Respironics therapy devices only. M Series Heated Humidifier...

  • Page 8: Glossary

    The state in which the therapy device does not provide therapy. The device enters this state if an error is detected. Standby State The state of the humidifier when power is applied but humidification is turned off. oW To ConTaCT espIronICs If.you.need.to.contact.Respironics.directly,.call.the.Respironics.Customer.Service.department.. at.1-724-387-4000.or.+49.8152.93060..You.can.also.use.one.of.the.following.addresses: Visit.Respironics.web.site.at:.www.respironics.com M Series Heated Humidifier...
  • Page 9 M Series Heated Humidifier...

  • Page 10: Setup

    1... When.using.a.humidifier,.the.patient.circuit.attaches.to.the.air.outlet.port.on.the.humidifier.. If.your.therapy.device.has.the.air.outlet.port.connection.attached,.you.must.remove.it.from.your. therapy.device.before.connecting.to.the.humidifier.. To.remove.the.port: a.. Put.your.thumb.underneath.the.port.and.insert.your.index.finger.into.the.port.opening. b.. Pivoting.from.the.bottom,.unsnap.the.port.and.pull.it.away.from.the.device. air outlet port 2: r Igure eMovIng The herapy evICe uTleT onneCTor 2... Place.the.therapy.device.on.the.humidifier.base..Position.the.therapy.device.so.that.the.air. inlet.port.on.the.humidifier.connects.to.the.air.outlet.port.on.the.device..Use.the.latch.on.the. humidifier.base.as.a.guide.to.properly.connect.the.therapy.device.to.the.humidifier. air inlet port 3: C Igure onneCTIng The herapy evICe M Series Heated Humidifier...

  • Page 11: Daily.use

    LED to blink. CAUTION: Do not overfill the water tank. Damage to the humidifier or therapy device may occur. M Series Heated Humidifier...
  • Page 12 Do not move the humidifier when the water tank has water in it. 4... Place.the.water.tank.back.in.the.humidifier. 6: I Igure nsTallIng The aTer 5.. Connect.the.humidifier.power.supply.connector.to.the.device.power.supply..Plug.the.AC. power.cord.into.the.humidifier.power.supply.connector,.then.plug.the.power.cord.into.an. electrical.outlet. 7: C aC p Igure onneCTIng The oWer 6.. Plug.the.power.supply.cord.connector.into.the.therapy.device. 8: C Igure onneCTIng The oWer upply M Series Heated Humidifier...
  • Page 13 10: T Igure urnIng on The loWer NOTE: For information on your M Series therapy device settings, refer to the manual included with your device. 9... Turn.on.the.humidifier.by.turning.the.humidifier.knob.to.the.desired.setting..The.blue.LED.on. the.humidifier.knob.will.turn.on.and.therapy.can.begin.. CAUTION: The humidifier knob must remain on 0 if there is no water in the water tank or if the water tank is not installed.

  • Page 14: Device.controls

    On for a half second Off State Continuous Off Active State Continuous On Error State On/Off flashing that indicates an error condi- tion exists. This is either a safe state condition or an AC loss error (heater plate not heating) M Series Heated Humidifier...
  • Page 15 M Series Heated Humidifier...

  • Page 16: Cleaning.and.service

    1... Turn.the.therapy.device.off,.turn.the.humidifier.knob.to.0,.and.allow.approximately.15.minutes. for.the.heater.plate.and.water.to.cool.. 2... Open.the.humidifier.door,.and.then.slide.the.water.tank.out.of.the.humidifier.base..Empty.any. remaining.water.. 3.. Push.the.tank.slider.to.the.right,.and.then.gently.pull.apart.the.top.and.bottom.halves.of.the. humidifier.tank.by.pulling.upward.on.the.tank.tabs.or.tank.inlet/outlet. top seal tank inlet/outlet tank slider tank tabs 12: s Igure eparaTIng The aTer anK for leanIng 4... Wash.all.parts.using.one.of.the.following.methods: a... Place.on.the.top.rack.of.the.dishwasher..Rinse.the.parts.with.clean.water.and.allow... them.to.air.dry.. b... Wash.in.a.solution.of.warm.water.and.a.mild.dishwashing.detergent..Rinse.the.. parts.with.clean.water.and.allow.them.to.air.dry. M Series Heated Humidifier...

  • Page 17: Heater.plate.and.humidifier.base

    For your convenience at airport security stations, there is a note on the bottom of the humidifier stating that it is medical equipment. It may be helpful to bring this manual along with you to help security personnel understand the device. M Series Heated Humidifier...

  • Page 18: Dc.power

    Damage to the vehicle or the device and humidifier may occur. CAUTION: Only use a Respironics DC Power Cord and Battery Adapter Cable. Use of any other system may cause damage to the device or vehicle. Refer.to.the.instructions.supplied.with.the.DC.power.cord.and.adapter.cable.for.information.on.how.
  • Page 19 M Series Heated Humidifier...

  • Page 20: Troubleshooting

    If the humidifier does not operate properly after being dropped or mishandled, contact your home care provider or Respironics. The humidifier The humidifier was If the humidifier does not operate properly after is cracked or dropped or mishandled.
  • Page 21 . Check the power connections to the humidi- fier. If the problem continues, contact your home care provider or Respironics. NOTE: If the humidifier is functioning but the water is not heating, you can temporarily use the humidifier as a passover humidifier. M Series Heated Humidifier...
  • Page 22 The seal may become Check the seal for any tears or damage. If it top seal has loose or fall off during is damaged, contact your home care provider. fallen off. cleaning. If not, reconnect as shown below. M Series Heated Humidifier...
  • Page 23 . Remove your mask and tubing and check for connected correctly and kinks or tears. If it is torn or damaged, contact doesn’t seal properly. your home care provider or Respironics for replacement tubing and/or mask. 2. The therapy device is not seated correctly on the If the tubing is not damaged, reattach your humidifier base.
  • Page 24 Route the tubing behind the bed’s headboard. If the humidifier does not operate correctly after falling, contact your home care provider or Respironics. NOTE: For information on troubleshooting your therapy device, see the manual included with your therapy device. M Series Heated Humidifier...
  • Page 25 M Series Heated Humidifier...

  • Page 26: Specifications

    Dimensions:. 8.25".x.8.75".x.4" Weight:. . <.2.2.lbs. aTer apaCITy 1.2/3.cups.at.recommended.water.level roduCT ransporT Torage Operation. Transport.&.Storage Temperature:. 41.to.95°.F.. -4.to.140°.F Humidity:. 10.to.95%.Non-condensing. 15.to.95%.Non-condensing Atmospheric.. Pressure:.. 76.7.to.101.kPascals.. Tandards oMplIanCe This.humidifier.is.designed.to.conform.to.the.following.standards: IEC.60601-1.General.Requirements.for.Safety.of.Medical.Equipment EN.ISO.8185:1998.General.Requirements.for.Humidification.Systems leCTrICal AC.Power.Consumption:.100.-.240.VAC,.50/60.Hz,.1.7.A.max. Type.of.Protection.against.Electric.Shock:.Class.II.Equipment Degree.of.Protection.against.Electric.Shock:.Type.BF.Applied.Part Equipment.Type:.IPX1:.Drip.Proof.Equipment EMC.Operation:.Continuous Electromagnetic.Compatibility:.This.device.meets.the.requirements.of.IEC.60601-1-2,.2nd.edition.. M Series Heated Humidifier...

  • Page 27: Heater.settings

    1.to.5.(104°.to.158°.F) ressure rop WITh uMIdIfIer (max.).0.3.cm.H O.at.60.LPM.flow uMIdITy ange 10.to.40.mg.H led T Type.1.per.IEC.60825-1 Weee/r hs r eCyClIng IreCTIves If.you.are.subject.to.the.WEEE/RoHS.recycling.directives,.refer.to.www.respironics.com.for.the. passport.for.recycling.this.product. M Series Heated Humidifier...

  • Page 28: Emc.information

    The device is suitable for use CISPR  in all establishments, including domestic establishments and Harmonic emissions Class A those directly connected to IEC 000-- the public low-voltage power Voltage fluctuations/Flicker Complies supply network. emissions IEC 000-- M Series Heated Humidifier...
  • Page 29  cycles for  cycles <% U <% U (>% dip in U (>% dip in U for  sec for  sec NOTE: U is the a.c. mains voltage prior to application of the test level. M Series Heated Humidifier...

  • Page 30: M Series Heated Humidifier

    If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device. Over the frequency range 0 kHz to 0 MHz, the field strengths should be less than  V/m. M Series Heated Humidifier...
  • Page 31 NOTE : At 0 MHz and 00 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propaga- tion is affected by absorption and reflection from structures, objects, and people. M Series Heated Humidifier...

  • Page 32: Limited.warranty

    IMITed arranTy Respironics,.Inc.®.warrants.that.this.humidifier.shall.be.free.from.defects.of.workmanship.and. materials.and.will.perform.in.accordance.with.the.product.specifications.for.a.period.of.two.(2).years. from.the.date.of.sale.by.Respironics,.Inc..to.the.dealer..If.the.product.fails.to.perform.in.accordance. with.the.product.specifications,.Respironics,.Inc..will.repair.or.replace,.at.its.option,.the.defective. material.or.part..Respironics,.Inc..will.pay.customary.freight.charges.from.Respironics,.Inc..to.the. dealer.location.only..This.warranty.does.not.cover.damage.caused.by.accident,.misuse,.abuse,.alteration. and.other.defects.not.related.to.material.or.workmanship..To.exercise.your.rights.under.this.warranty,. contact.your.local,.authorized.Respironics,.Inc..dealer.or.Respironics. M Series Heated Humidifier...
  • Page 33 M Series Heated Humidifier...
