Technical Data

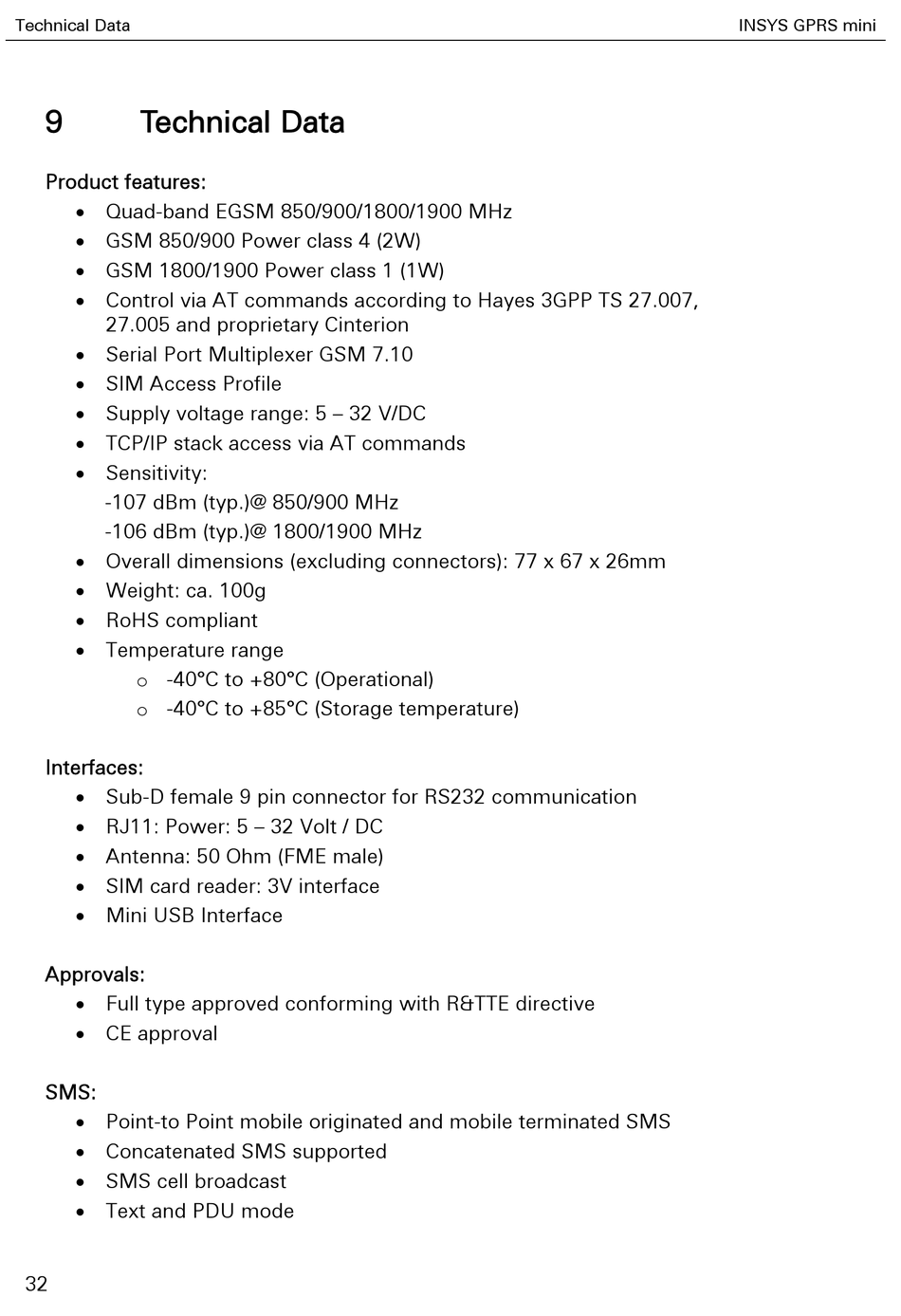

9 Technical Data
Product features:
 Quad-band EGSM 850/900/1800/1900 MHz
 GSM 850/900 Power class 4 (2W)
 GSM 1800/1900 Power class 1 (1W)
 Control via AT commands according to Hayes 3GPP TS 27.007,
27.005 and proprietary Cinterion
 Serial Port Multiplexer GSM 7.10
 SIM Access Profile
 Supply voltage range: 5 – 32 V/DC
 TCP/IP stack access via AT commands
 Sensitivity:
-107 dBm (typ.)@ 850/900 MHz
-106 dBm (typ.)@ 1800/1900 MHz
 Overall dimensions (excluding connectors): 77 x 67 x 26mm
 Weight: ca. 100g
 RoHS compliant
 Temperature range
o -40°C to +80°C (Operational)
o -40°C to +85°C (Storage temperature)
Interfaces:
 Sub-D female 9 pin connector for RS232 communication
 RJ11: Power: 5 – 32 Volt / DC
 Antenna: 50 Ohm (FME male)
 SIM card reader: 3V interface
 Mini USB Interface
Approvals:
 Full type approved conforming with R&TTE directive
 CE approval
SMS:
 Point-to Point mobile originated and mobile terminated SMS
 Concatenated SMS supported
 SMS cell broadcast
 Text and PDU mode
