INSYS GPRS mini
Please note the following:
Mounting holes positioned at two of the corners make it possible to
securely bolt the modem into your application.
Keypad, display, microphone, speaker and battery are not part of the
modem.
The SIM card is mounted in the modem, accessible by the user under
a lid without any tools.
The pins and electrical characteristics or the modem's various connec-
tors are described in "Electrical Description"
Information about the antenna connector is found in "Antenna Con-
nector"

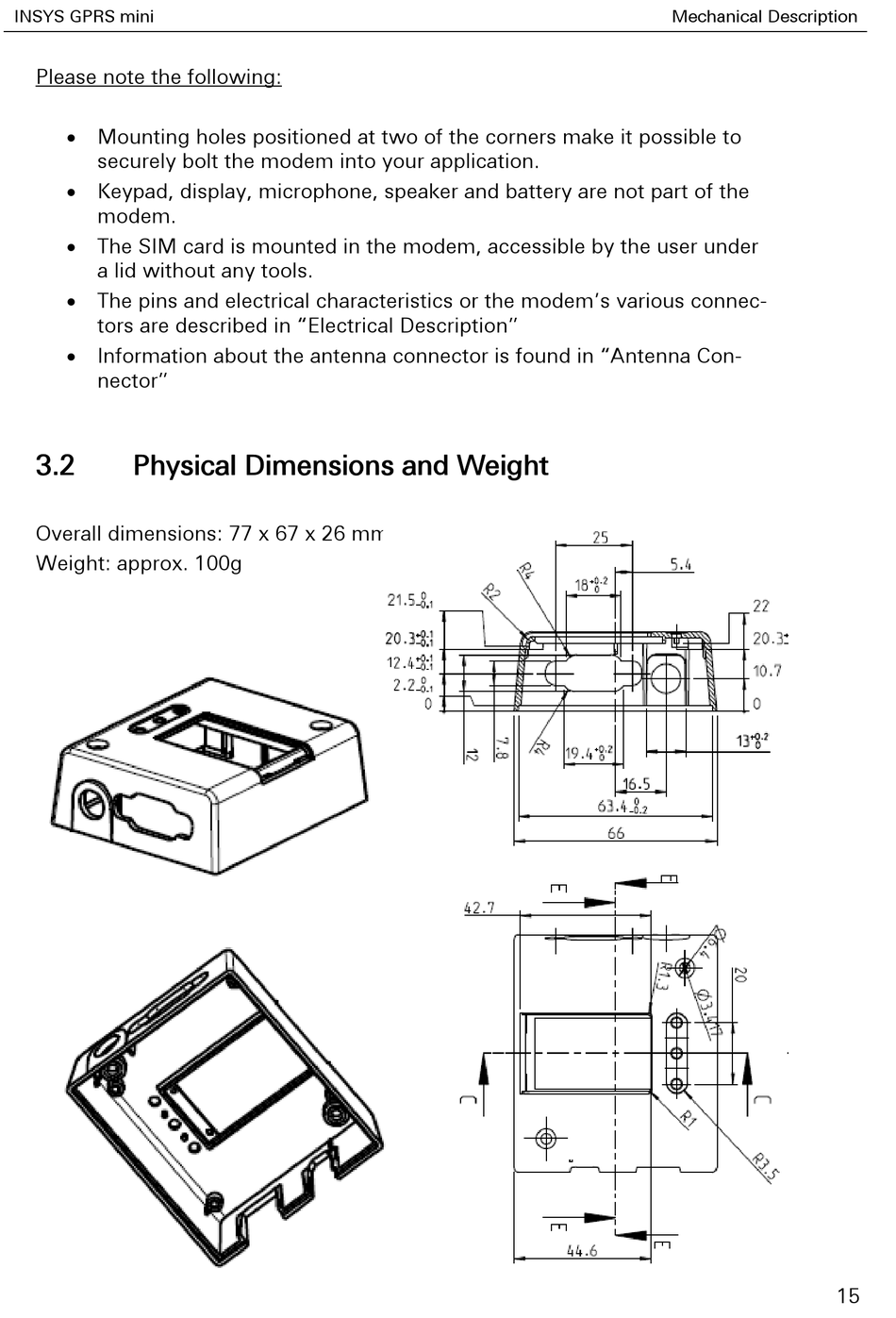

3.2
Physical Dimensions and Weight
Overall dimensions: 77 x 67 x 26 mm
Weight: approx. 100g
Mechanical Description
15
