Zartek CDP-801 Instruction Manual

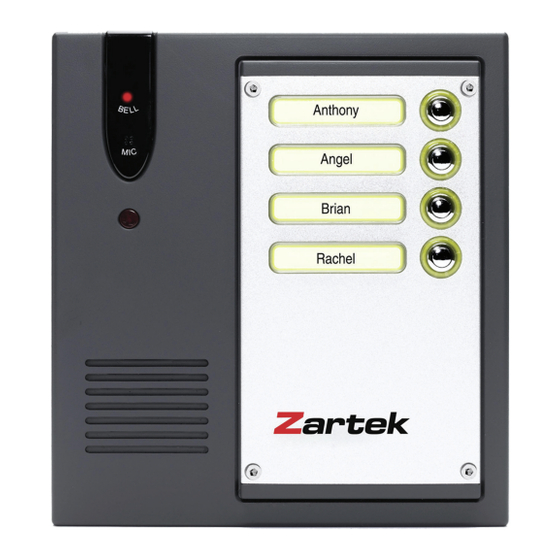

Wireless doorphone, four button gatestation
Hide thumbs Also See for CDP-801:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDP-801 and is the answer not in the manual?

Questions and answers

Related Manuals for Zartek CDP-801

Summary of Contents for Zartek CDP-801

  • Page 3: Getting Started

    CDP-805 manual_3.pdf 3 27/5/2017 12:21 PM Getting Started A. Power Supply Caller unit 1. With the supplied tool, loosen the screw that hold the front aluminum plate. The screws are made special for anti-theft purpose, it is necessary to keep the tool in safe place as you need it later when pairing new handsets.
  • Page 4 CDP-805 manual_3.pdf 4 27/5/2017 12:21 PM Handset TO AC OUTLET The supplied Li polymer battery pack is already installed in the handset. To replace, press down the lock button and slide open the battery door, take out the battery pack and disconnect from socket With the handset switched on, place it into the charger stand.
  • Page 6 CDP-805 manual_3.pdf 6 27/5/2017 12:21 PM C. Mounting of Caller Unit INSERT RIVERTS INTO HOLES (FOR CONCRETE WALL ONLY) DRILLED HOLES 1. The caller unit has been designed to be splash and rain proof. Ensure that the rubber seals and battery cover are not removed.

  • Page 8: Controls Layout

    CDP-805 manual_3.pdf 8 27/5/2017 12:21 PM Controls Layout Caller unit PAIRING NORMAL Charging Stand Handset Call button 12. Hang up and power ON/OFF button Call button 13. Door lock open button Call button 14. Press-to-talk (PTT) button Call button 15. Microphone Call indicator 16.
  • Page 9 CDP-805 manual_3.pdf 9 27/5/2017 12:21 PM Door lock Door chime, flashing opened light and vibrating alert selected Frontgate & Battery Level Backgate doorbell ringing Caller unit battery low Outdoor temperature Reception mode Door lock de-activated Missed call Speaker volume Flashing Steady light up Door chime and Caller unit doorbell ringing...

  • Page 10: Operation

    CDP-805 manual_3.pdf 10 27/5/2017 12:21 PM OPERATION Switch on the handset by a long press (over 3 seconds) of the Power ON/OFF button Press the same button again in case you want to switch off the unit. The LCD screen will show up. In case the self battery low icon O appears and an alarm heard, the battery has run down and need to be recharged by placing the unit into the charger stand.
  • Page 11 CDP-805 manual_3.pdf 11 27/5/2017 12:21 PM Now conversation is possible and the voice of visitor can be heard from speaker . To talk back to visitor, press and hold the button and speak towards the Microphone , reception mode icon D goes off.
  • Page 12 CDP-805 manual_3.pdf 12 27/5/2017 12:21 PM 12. Under the circumstances of an unanswered call from a visitor (e.g. you are away from home or located at a place which is out of range from the caller unit), the icon C will appear on the screen.
  • Page 13 CDP-805 manual_3.pdf 13 27/5/2017 12:21 PM Intercom This function is applicable only if you have two or more handsets in same apartment. Please note all units must be paired together. Under standby mode, momentarily press Answer button , a “do – do” sound will be heard.

  • Page 14: Troubleshooting Guide

    CDP-805 manual_3.pdf 14 27/5/2017 12:21 PM TROUBLE SHOOTING GUIDE Problem Possible Causes Solution Handset and Handset and Caller unit has Perform pairing process Caller unit cannot different ID code communicate Battery has run down Recharge battery in Handset using charger stand. Communication Many steel structures between Relocate the position of Handset...
  • Page 16 CDP-805 manual_3.pdf 15 27/5/2017 12:21 PM MASK FOR HOLES DRILLING " ø6 X 30mm (for concrete wall) ø2 X 30mm (for wooden wall) WIRE INLET...

This manual is also suitable for:

Za-654
