CDP-808 Two Button Wireless Intercom
Installers Manual

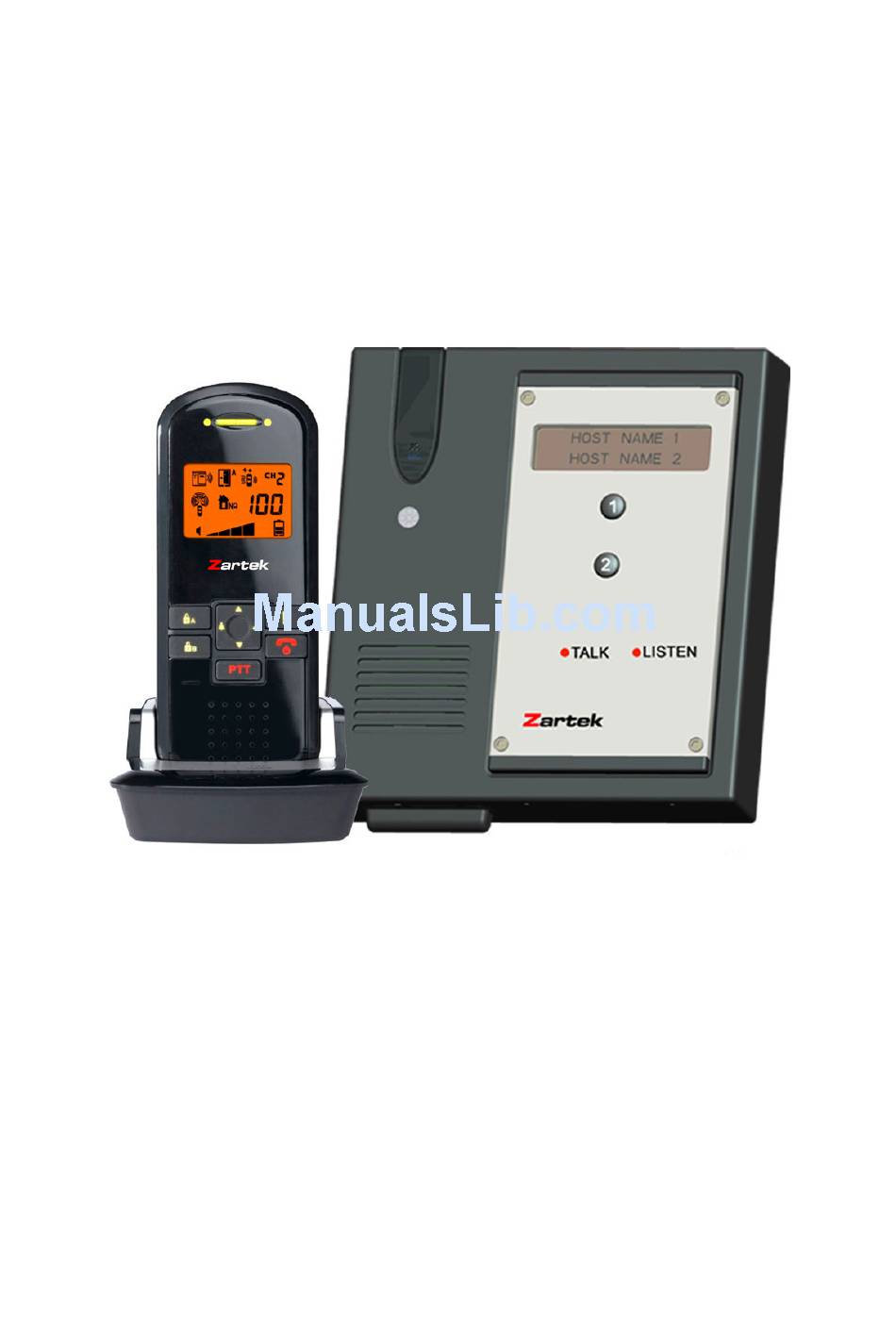

ZA-614 Two Button Gate station including power supply, relay board and external antenna
ZA-613 Handsets with charger
ZA-613-E Handsets with external antenna for maximum range and charger
Note: Gatestation are supplied separately to handsets as each application may require a different number
or type of handsets.
Advertisement
Related Manuals for Zartek ZA-614
Summary of Contents for Zartek ZA-614
- Page 1 Zartek CDP-808 Two Button Wireless Intercom Installers Manual ZA-614 Two Button Gate station including power supply, relay board and external antenna ZA-613 Handsets with charger ZA-613-E Handsets with external antenna for maximum range and charger Note: Gatestation are supplied separately to handsets as each application may require a different number...
- Page 2 Overview: The Zartek Wireless Multi Intercom System is newly developed and three years of R&D in the making. It is fully approved by ICASA. Applications for this system include houses, offices, cottages, security access points etc. There are 2 buttons which can be linked to 2 separate channels. Only the selected houses handset will ring and communication is established by the tenant pressing the PTT button on the handset.
- Page 3 Power Use only the supplied 12v DC supply. It is a switching power supply which has more stable voltage output than an AC adapter. Connect 12v wires to connection block at the back of the intercom. There is no polarity needed. Do not use any other supply such as 12v battery back-up systems. Insert the Li-ion battery connector into the Li-ion battery socket (refer to Figure above) and connect the power supply.
-
Page 4: Pairing Procedures
Button Definition: Button 1 is used to call House Name 1 , Handsets with 001 code Button 2 is used to call House Name 2 , Handsets with 002 code Dip switches: Dip switch 1 & 2 are used to set the ID code. ID code is used to avoid interference from other systems and to provide security with gate opening. - Page 5 Doorbell visual light K7 Volume up button K6 Call alert select button K1 Handset calling button K4 Lock A button K8 Ringing tone time select button K5 Lock B button K2 Hang Up/Power ON/OFF button Microphone K3 Call reply/ Calling gate station button K9 Volume down button Speaker 1.
- Page 6 Range and External antenna The gatestation has been designed to be used with an external antenna. Typical range with the antenna mounted is 100m in built-up areas and 350m in more open areas. Heavily built up areas will affect the range significantly and possible reduce maximum range to less than 100m.
- Page 7 Gate Triggering The gatestation has 2 separate triggers used to opening/closing gates. Both gates can be triggered from the handset. During a call the door lock button is pressed once to activate and under standby the buttons must be pressed in for 3 seconds in order to trigger. The contacts are located at the back of the intercom.
- Page 8 Unscrew the bolt holding the mounting bracket to the gatestation and slide the bracket off the gatestation. 1. The caller unit has been designed to be splash and rain proof. Ensure that the rubber buttons and plate cover are fitted well when installation is complete.
-
Page 9: Important Terms
2. Select a location near your door entrance against a wall. The gatestation can be mounted against a gooseneck and be covered with a metal housing as the antenna is external and range will not be affected. 3. It is advised that the intercom is not installed in the vicinity of other electronic devices that may reduce the operating range such as electric fences, cameras etc.
