WIRELESS
DOORPHONE

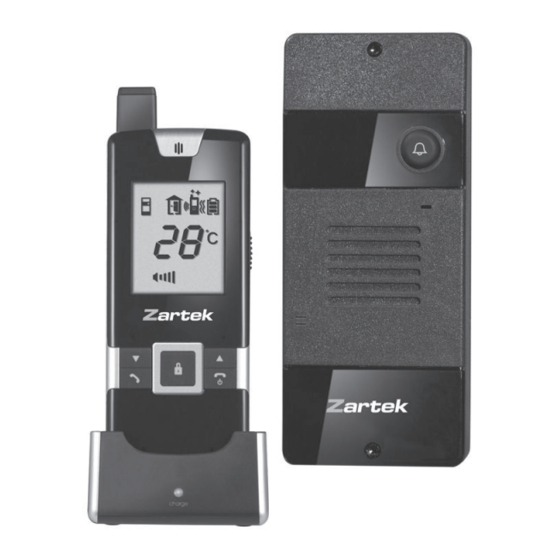

ZA-650 Gatestation with Handset
ZA-651 Extra Handset
ZA-652 Extra Gatestation (back)
Overview:
The Zartek Digital Wireless Intercom is our third generation system newly developed following six
years of R&D. It is fully approved by ICASA. Applications for this system include houses, offices,
cottages, security access points This system is well suited for self installation.
The gatestation is a single button which can be linked to as many handsets or extra gatestations as
needed. Communication is simplex so only one person can speak at a time but the gatestation's
microphone is always active so the visitor does not have to press any key to speak. The inside
handset can enter into the conversation at any time by pressing a PTT button. Gate opening and
closing is triggered from the handset for a motorized gate or striker lock. Range is terrain dependant
and is 50-70m in built-up areas and more in open areas.
Thank you for purchasing this Digital Wireless Doorphone System. Your system has been manufac-
tured and checked under the strictest possible quality control to ensure that each system leaves the
factory in perfect condition. In the unlikely event you find any defect or experience any problem,
please contact our service center or dealer, do not attempt to repair by yourself.
Please read this manual carefully to obtain optimum performance and extended sevice life from the
system.
For more information please check our website www.zartek.co.za
Features
•
Digital Radio Communication
•
Hands-free Use for Visitor & PTT for Resident
•
Gate Triggering (relay included)
•
Gate powered from supply (included) or gate motor 12v
•
Battery Back-up with 3 AAA batteries (not included)
•
Manual Programming (see manual for details)
•
Mount on standard gooseneck or against wall
•
Selectable audio, visual or vibration alert
•
Outdoor temperature reading on handset
•
Handset with rechargeable Li-ion battery
•
Low risk of lightning damage
•
Out-of-range and low battery level alert
•
Multiple Handsets (ZA-651 optional extra handset)
•
Additional Gatestations (ZA-652 optional extra gatestation)
•
Intercom function between handsets
•
1 Year limited warranty (see manual for details)
•
Fully approved by ICASA (TA 2012/845)

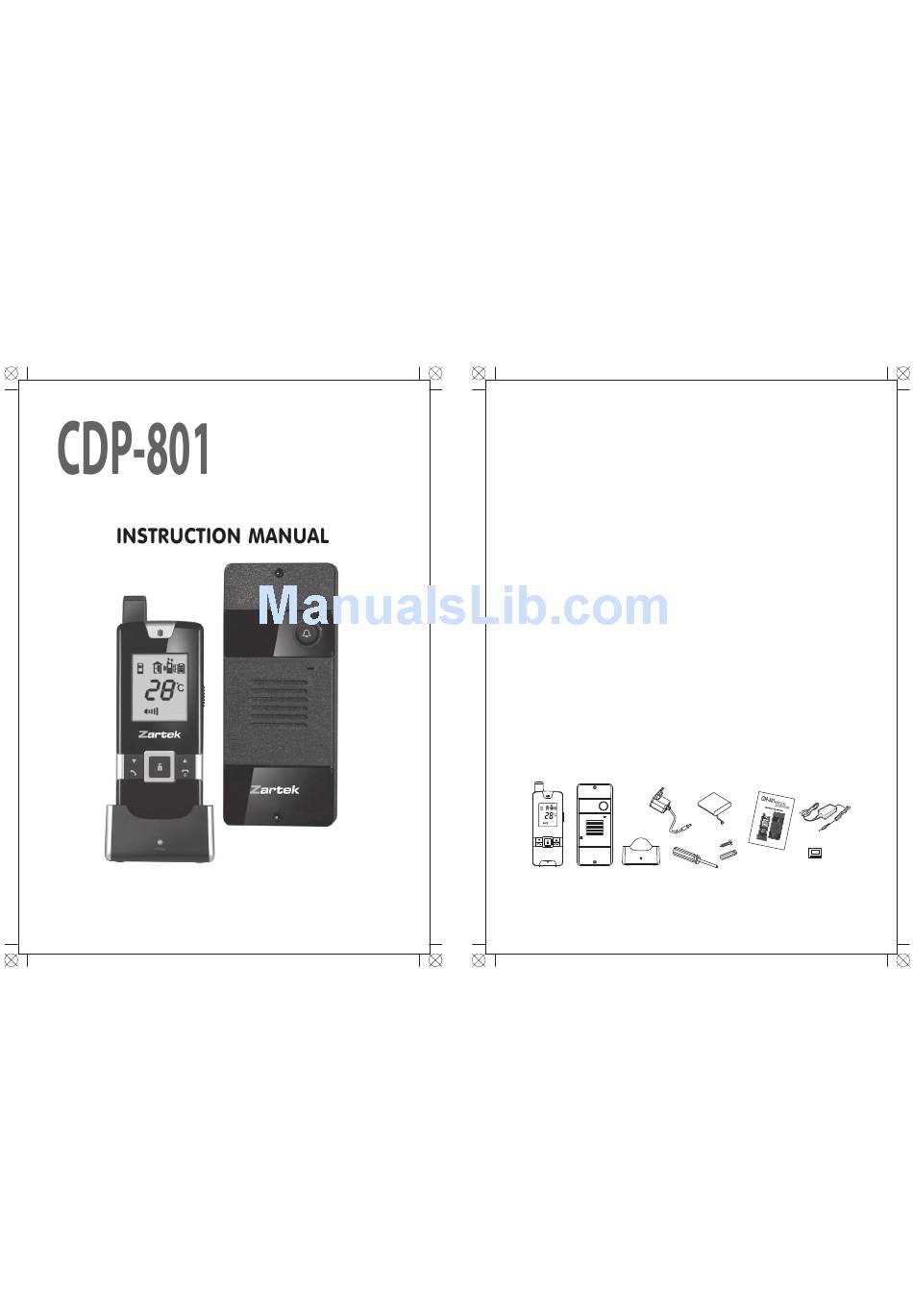

Standard Accessories
(Check outer packaging for included items as there are different pack options)
d
f
a
b
c
a. Handset
e. Rechargeable Li battery pack
b. Caller Unit
(installed in handset)
c. Charger stand
f. Tool
d. Switching power supply
g. Screws and rivets
2
e
i
h
g
j
h. Instruction manual
i. Gatestation 12v
power supply
j. Relay board
Advertisement
Table of Contents
Related Manuals for Zartek CDP-801
Summary of Contents for Zartek CDP-801
- Page 1 Overview: The Zartek Digital Wireless Intercom is our third generation system newly developed following six WIRELESS years of R&D. It is fully approved by ICASA. Applications for this system include houses, offices, cottages, security access points This system is well suited for self installation.
-
Page 2: Getting Started
Getting Started Handset Range Test Typical range is 50-70m from the gate to house. If the area is very built-up or full of trees the range may be lower. Range will improve when there are less obstructions in the way. Placement of gatestations and handsets will affect the range so make sure to choose places as open as possible away from metal, concrete or electrical devices. - Page 3 Pairing the Handset and Caller unit Mounting of Caller Unit INSERT RIVERTS INTO HOLES This process is to match the caller unit with handset so that they can communicate with each (FOR CONCRETE WALL ONLY) other while no other devices (even doorphone of identical model) can interfere with you or receiving your signal.
-
Page 4: Controls Layout
Controls Layout Always close Caller unit These two terminals normally provide a 12V supply. During communication, once the door lock opening button 13 is pressed, this voltage will drop to 0V temporarily for 3 seconds. Always open These two terminals normally provide 0V. During communication, once the door lock opening button 13 is pressed, the terminals will provide a 12V supply temporarily for 3 seconds. - Page 5 Basic Operation Door lock Door chime, flashing opened light and vibrating alert selected Frontgate & Battery Level Backgate doorbell ringing HANDSET RESIDENT RESIDENT VISITOR VISITOR RINGS & PRESSES OPENS PRESSES SPEAKS ANSWERED TO SPEAK GATE Detailed Operation Caller unit battery low Powering Handset Outdoor Switch on the handset by a long press (over 3 seconds) of the Power ON/OFF button 12...
- Page 6 Answering Call Missed Call Upon receiving a call, either icon A or icon B appears on the screen, depending the call In the event of an unanswered call from a visitor (e.g. you are away from home or located at a place is from the front gate or back gate (in case you have purchased an optional caller unit for back which is out of range from the caller unit), the icon C will appear on the screen.
-
Page 7: Warranty
Intercommunication Between Handsets This function is applicable only if you have two or more handsets. Please note all units must be This product is warranted by Zartek against manufacturing defects in materials and workmanship paired together. under normal use for a 12 month period from date of purchase via our authorised appointed dealers.
