Zartek CDP-808 Installer Manual

Multi wireless intercom system
Hide thumbs Also See for CDP-808:

Advertisement

Quick Links

Download this manual See also: User Manual
Zartek
CDP-808 Multi Wireless Intercom System
Installers Manual
ZA-610 Gate station complete including power supply, relay board and external antenna
ZA-611 Back/side Gate station including power supply, relay board and external antenna
ZA-612 Programming kits including cable and software
ZA-613 Handsets with charger
ZA-613-E Handsets with external antenna for maximum range and charger

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDP-808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zartek CDP-808

Summary of Contents for Zartek CDP-808

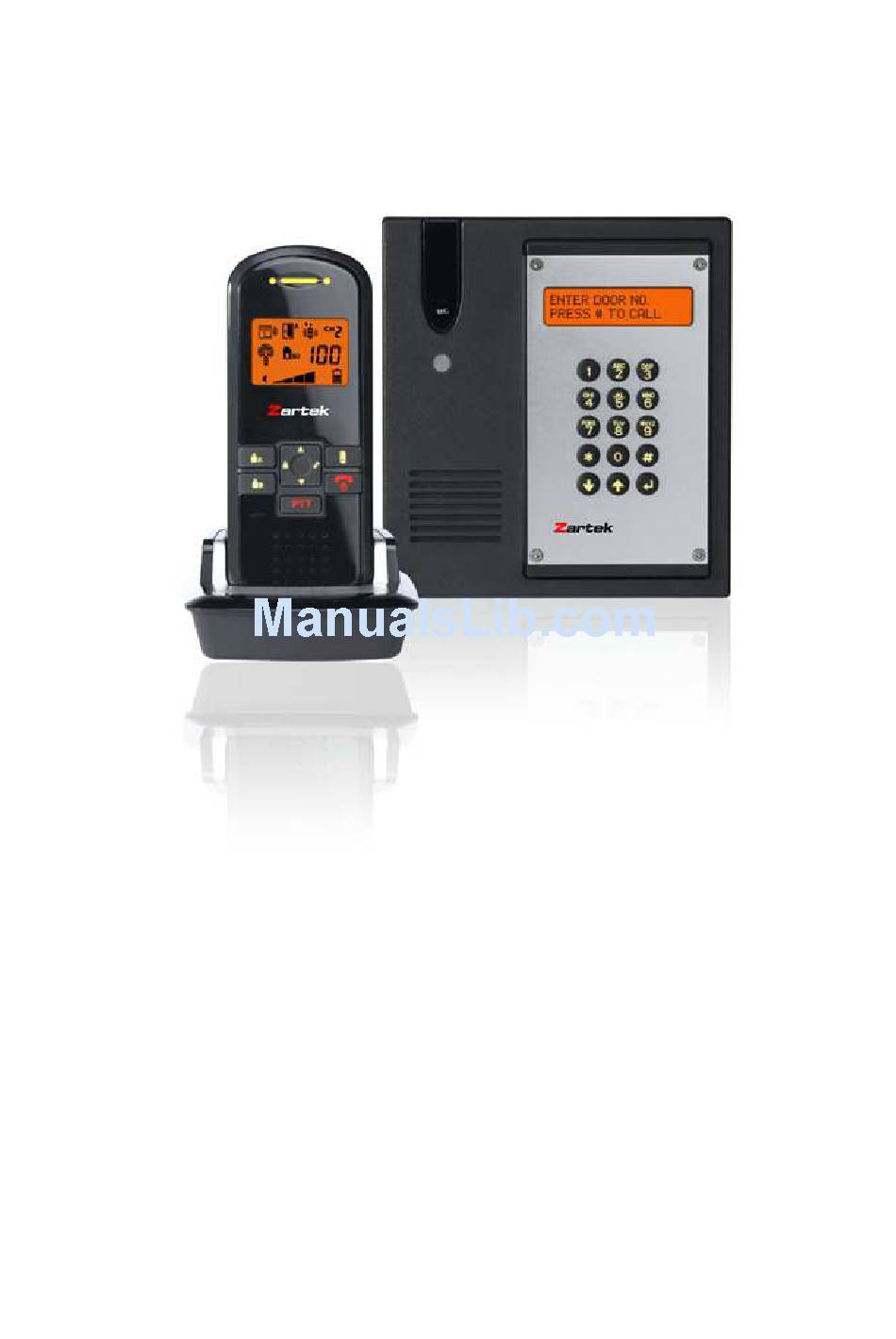

  • Page 1 Zartek CDP-808 Multi Wireless Intercom System Installers Manual ZA-610 Gate station complete including power supply, relay board and external antenna ZA-611 Back/side Gate station including power supply, relay board and external antenna ZA-612 Programming kits including cable and software ZA-613 Handsets with charger...
  • Page 2 Overview: The Zartek Wireless Multi Intercom System is newly developed and three years of R&D in the making. It is fully approved by ICASA. Applications for this system include housing complexes, apartments and office blocks, large estates, long driveways etc.
  • Page 3 Alphanumeric keys “*”key “#”key DOWN key ENTER key UP key Power Use only the supplied 12v DC supply. It is a switching power supply which has more stable voltage output than an AC adapter. Connect 12v wires to connection block at the back of the intercom. There is no polarity needed.
  • Page 4 Connect the programming cable between PC Programming connector as shown in Fig 4 and the PC USB port. Click on the CDP-808 icon on PC and start the programming procedure. Read from the gatestation (left icon: gatestation to PC) Enter User name, number, channel select, ID select (only use 1-10), Door entry code, User mode and Pin.

  • Page 5: Pairing Procedures

    Pairing procedures Each unique code/ house number needs to be programmed separately. If there are 2 or more handsets per house they must be paired together at the same time from the gatestation. Doorbell visual light K7 Volume up button K6 Call alert select button K1 Handset calling button K4 Lock A button...
  • Page 6 1. Channel selection (the same operating channel must be selected on gatestation and all handsets) Take out battery from handset, keep K1 pressed in while inserting the battery, the unit will enter channel selection mode. Press K7 and K9 to select the preferred channel then take out battery again.
  • Page 7 Back gatestation It is possible to add an additional gatestation to be used on another entrance or exit, for instance to be notified when visitors want to exit. The functions of the back gatestation are similar to the front station as all the same names and codes are stored on the station.

  • Page 8: Reset To Factory/Default Setting

    Reset to factory/default setting Under standby mode, short circuit the two solder pads A & B for over 25 sec (with power supply connected), all programmed data will be erased and the unit returns to factory default setting. (i.e. PIN is 111111).
  • Page 9 Gate Triggering The gatestation has 2 separate triggers used to opening/closing gates. Both gates can be triggered from the handset. During a call the door lock button is pressed once to activate and under standby the buttons must be pressed in for 3 seconds in order to trigger. The contacts are located at the back of the intercom.
  • Page 10 Mounting of Caller Unit The mounting bracket is removed by first unscrewing the 4 screw of the aluminum plate and then the 4 screws of the keypad bracket using the supplied special tool. Gently remove the rubber keypad as shown in the figure below Unscrew the bolt holding the mounting bracket to the gatestation as shown in the figure below.

  • Page 11: Important Terms
