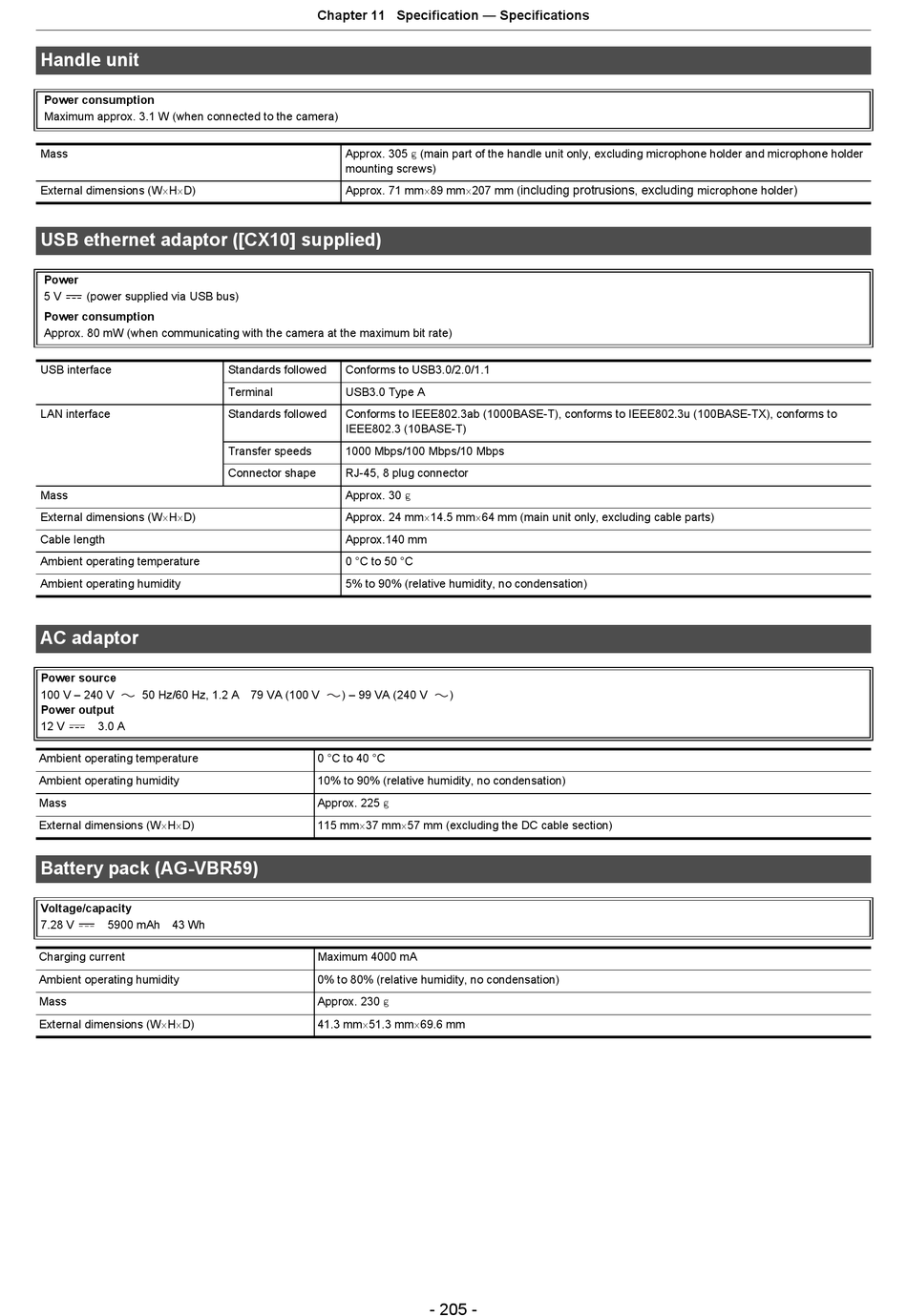

Handle Unit; Usb Ethernet Adaptor ([Cx10] Supplied); Ac Adaptor; Battery Pack (Ag-Vbr59) - Panasonic AG-CX7 Operating Instructions Manual

Handle unit

Power consumption
Maximum approx. 3.1 W (when connected to the camera)
Mass
External dimensions (W×H×D)

USB ethernet adaptor ([CX10] supplied)

Power
5 V (power supplied via USB bus)
Power consumption
Approx. 80 mW (when communicating with the camera at the maximum bit rate)
USB interface
LAN interface
Mass
External dimensions (W×H×D)
Cable length
Ambient operating temperature
Ambient operating humidity

AC adaptor

Power source
100 V – 240 V 50 Hz/60 Hz, 1.2 A 79 VA (100 V
Power output
12 V 3.0 A
Ambient operating temperature
Ambient operating humidity
Mass
External dimensions (W×H×D)

Battery pack (AG-VBR59)

Voltage/capacity
7.28 V 5900 mAh 43 Wh
Charging current
Ambient operating humidity
Mass
External dimensions (W×H×D)
Chapter 11 Specification — Specifications
Approx. 305 ] (main part of the handle unit only, excluding microphone holder and microphone holder
mounting screws)
Approx. 71 mm×89 mm×207 mm (
Standards followed Conforms to USB3.0/2.0/1.1
Terminal USB3.0 Type A
Standards followed Conforms to IEEE802.3ab (1000BASE-T), conforms to IEEE802.3u (100BASE-TX), conforms to
IEEE802.3 (10BASE-T)
Transfer speeds 1000 Mbps/100 Mbps/10 Mbps
Connector shape RJ-45, 8 plug connector
Approx. 30 ]
Approx. 24 mm×14.5 mm×64 mm (main unit only, excluding cable parts)
Approx.140 mm
0 °C to 50 °C
5% to 90% (relative humidity, no condensation)
) – 99 VA (240 V
0 °C to 40 °C
10% to 90% (relative humidity, no condensation)
Approx. 225 ]
115 mm×37 mm×57 mm (excluding the DC cable section)
Maximum 4000 mA
0% to 80% (relative humidity, no condensation)
Approx. 230 ]
41.3 mm×51.3 mm×69.6 mm
including protrusions, excluding
)
- 205 -
)
microphone holder
