3. Unplug the fan cable.

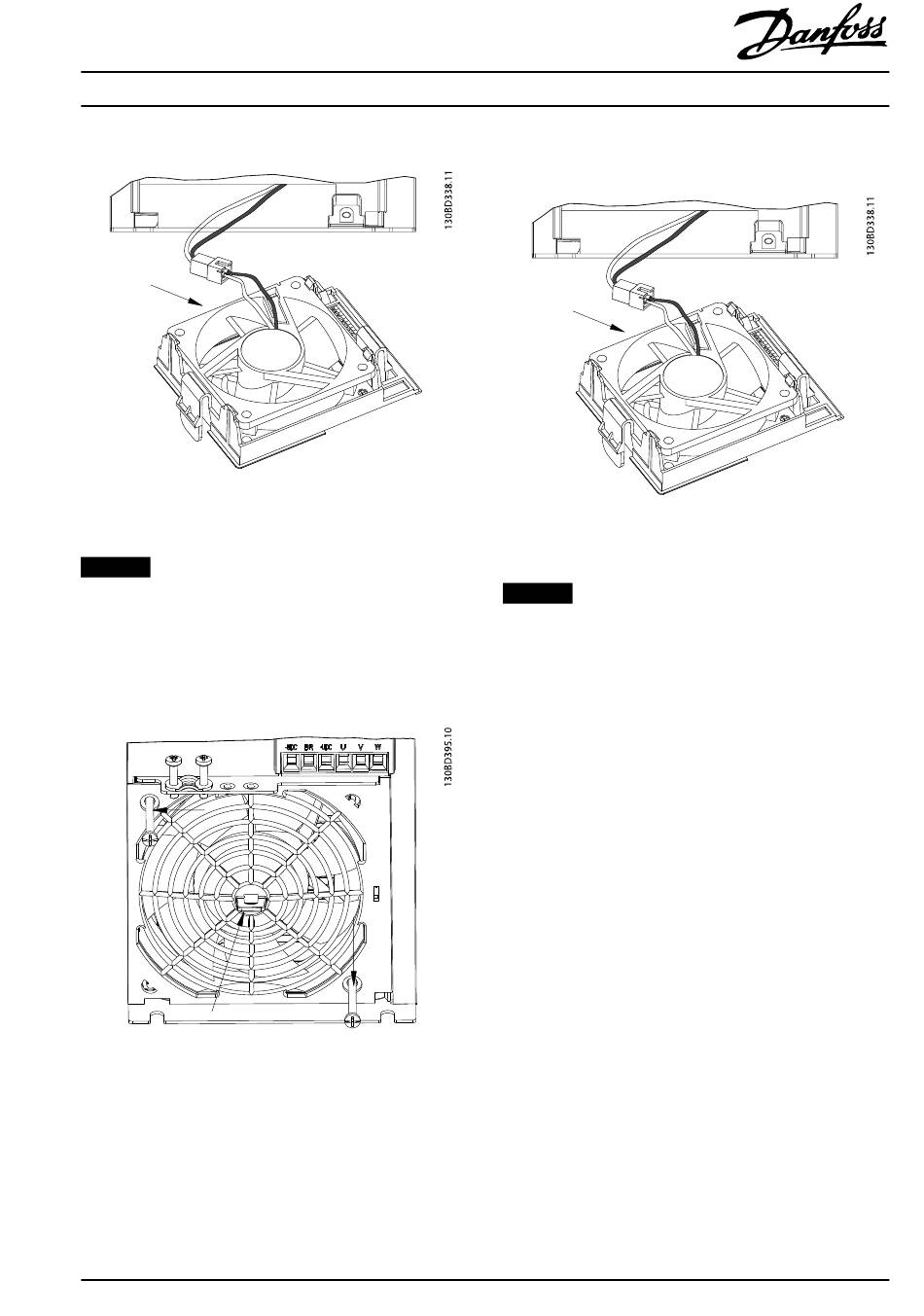

Illustration 1.5 Fan Cable Plug. Plug Location Depends on Fan
Type.
NOTICE
®
For VLT Midi Drive FC 280, the fan cable has 3 wires.
4. Install the new fan in reverse order.
Enclosure Size K5
1. Remove M4x50 screws in the bottom right and upper
left corners.
Illustration 1.6 Removing Fan Screws on Enclosure Size K5
MI07D102
Fan Replacement
®
VLT Midi Drive FC 280
2.
3.
Illustration 1.7 Fan Cable Plug. Plug Location Depends on Fan
Type.
NOTICE
For VLT
4.
Danfoss A/S © 11/2015 All rights reserved.
Grab the center handle and pull the fan outwards.
Unplug the fan cable.
®
Midi Drive FC 280, the fan cable has 3 wires.
Install the new fan in reverse order.
