SERVICE MANUAL EXTRA 300L
73-20-20

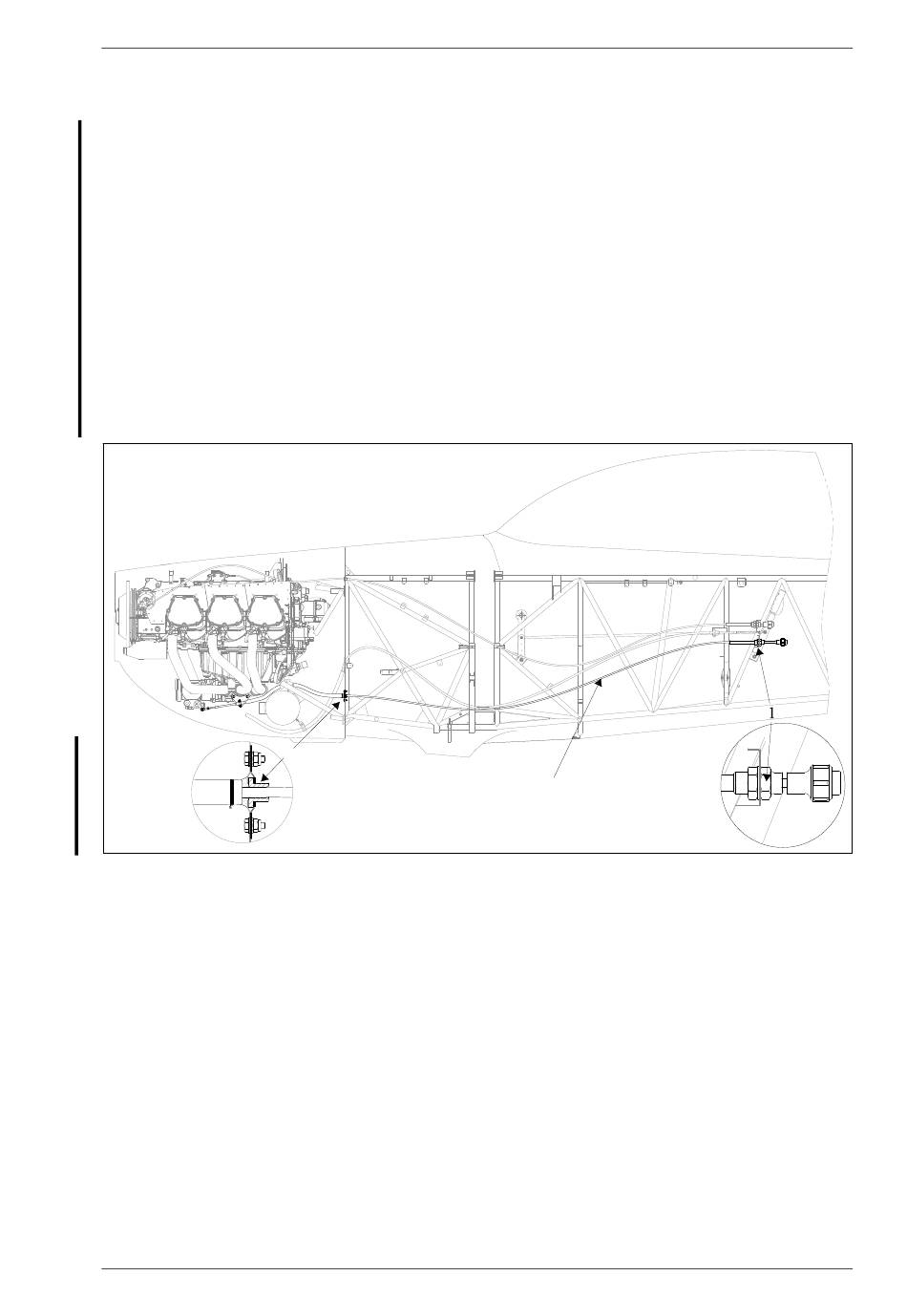

Side View
Figure 5
PAGE DATE: 26. October 2015

Mixture

Refer to Figure 5. The mixture of the fuel injector servo is
controlled by means of the vernier mixture control cable
located on the left side of the cockpit (red control knob).
This cable is routed on the left side of the fuselage, penetrates
the firewall and is then routed to the mixture control lever.
In the engine compartment this cable is covered with a
540 mm firesleeve. The cable is attached to the fuselage
using a clamp block at its front end and cable ties. The
mixture vernier control unit (1) is mounted to a fuselage
bracket. The fire wall penetration is sealed with PR-812
(Products Research & Chemical Corp., USA) firewall sealant
and covered with a clamp sheet (2).
2

Mixture Control

Mixture control cable
CHAPTER 73
PAGE 9
