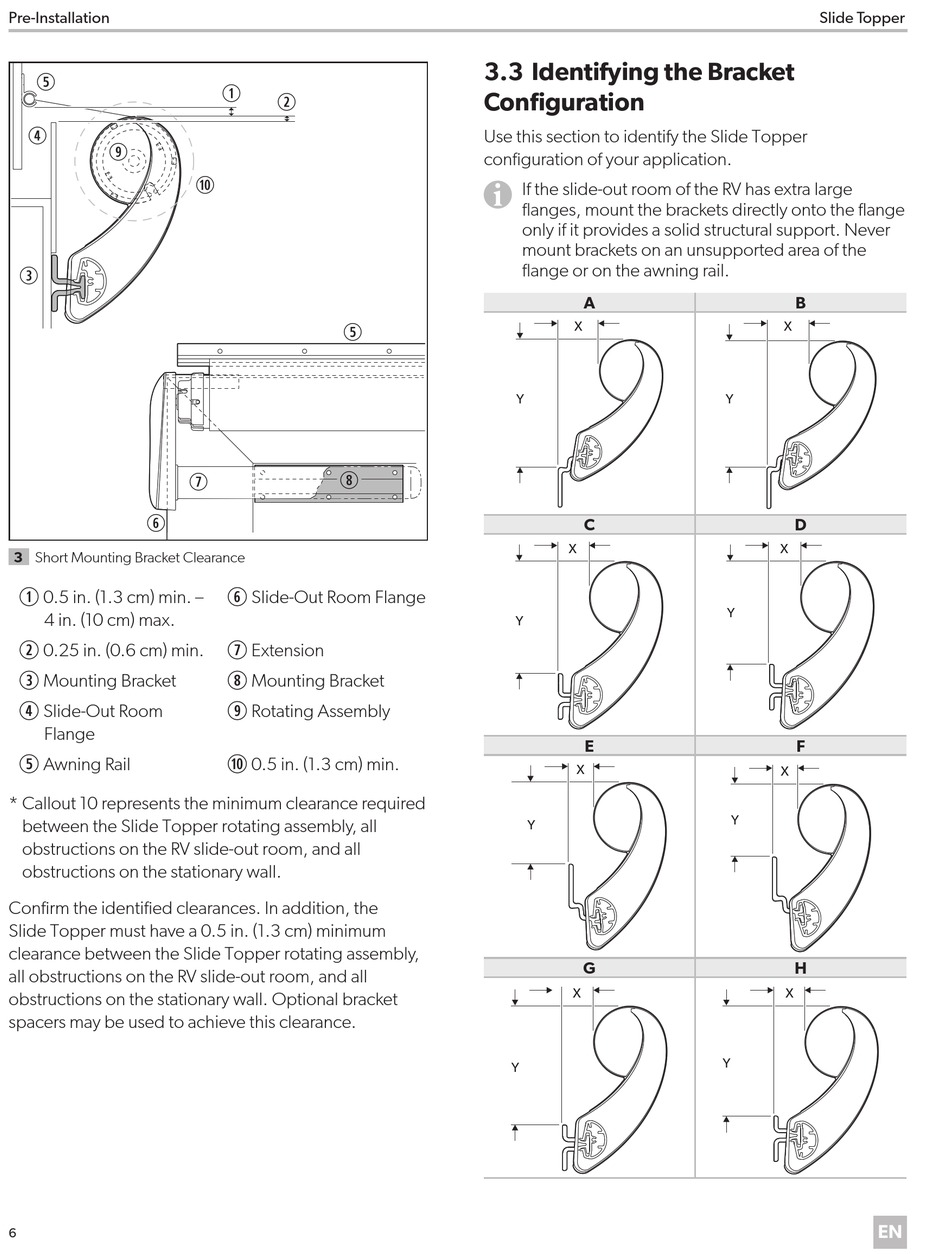

Identifying The Bracket Configuration - Dometic SLIDE TOPPER Installation And Operation Manual

Pre-Installation
t
r
o
e
y
3 Short Mounting Bracket Clearance
0.5 in. (1.3 cm) min. –
q
4 in. (10 cm) max.
0.25 in. (0.6 cm) min.
w
Mounting Bracket
e
Slide-Out Room
r
Flange
Awning Rail
t
* Callout 10 represents the minimum clearance required
between the Slide Topper rotating assembly, all
obstructions on the RV slide-out room, and all
obstructions on the stationary wall.
Confirm the identified clearances. In addition, the
Slide Topper must have a 0.5 in. (1.3 cm) minimum
clearance between the Slide Topper rotating assembly,
all obstructions on the RV slide-out room, and all
obstructions on the stationary wall. Optional bracket
spacers may be used to achieve this clearance.
6
q
w
a
t
i
u
Slide-Out Room Flange
y
Extension
u
Mounting Bracket
i
Rotating Assembly
o
0.5 in. (1.3 cm) min.
a
3.3 Identifying the Bracket
Configuration
Use this section to identify the Slide Topper
configuration of your application.
If the slide-out room of the RV has extra large
I
flanges, mount the brackets directly onto the flange
only if it provides a solid structural support. Never
mount brackets on an unsupported area of the
flange or on the awning rail.
A
X
Y
C
X
Y
E
X
Y
G
X
Y
Slide Topper
B
X
Y
D
X
Y
F
X
Y
H
X
Y
